22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 200000301 - 200999999) (2000) Loader Arm Hydraulic Parts Diagram

Dingo Compact Utility Loader

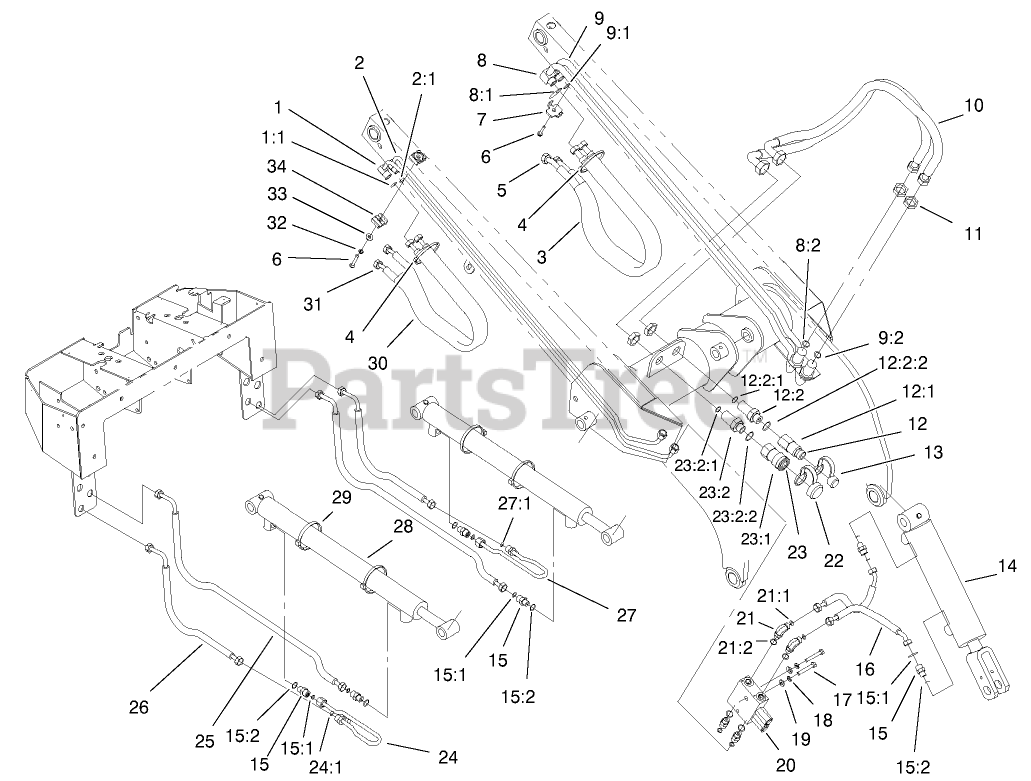

Loader Arm Hydraulic Parts Diagram

  • Title

1

Toro 98-0209

HYDRAULIC TUBE ASM

$

$

Not available

1:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

2

Toro 98-0206

HYDRAULIC TUBE ASM

$

$

Not available

2:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

3

Toro 100-6128

SLEEVE-PROTECTIVE

$45.99

$

Usually ships in 3-6 days

0

4

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

5

Toro 98-0242

HOSE-HYD

$166.99

$

Usually ships in 3-6 days

0

6

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 3 left!

0

7

Toro 98-0237-03

See Supercession: 98-0237
(Superseded to 98-0237)

$156.99

$

Usually ships in 3-6 days

0

8

Toro 98-2778

HYDRAULIC TUBE ASM

$

$

Not available

8:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

8:2

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

9

Toro 98-2779

HYDRAULIC TUBE ASM

$

$

Not available

9:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

9:2

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

10

Toro 99-6193

HOSE ASM

$219.99

$

Usually ships in 3-6 days

0

11

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

In Stock, only 2 left!

0

12

Toro 100-4748

See Supercession: 105-8395
(Superseded to 105-8395)

$270.99

$

Usually ships in 3-6 days

0

12:1

Toro 100-4235

See Supercession: 106-7692
(Superseded to 106-7692)

$278.99

$

Usually ships in 3-6 days

0

12:1:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$117.99

$

In Stock, only 2 left!

0

12:2

Toro 100-4236

FITTING-ADAPTER, BULKHEAD

$

$

Not available

12:2:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

12:2:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

13

Toro 100-8815

CAP-DUST, NIPPLE

$15.99

$

In Stock, only 2 left!

0

14

Toro 95-3578

See Supercession: 107-9320
(Superseded to 139-0778)

$1323.99

$

Usually ships in 3-6 days

0

14:1

Toro 100-6108

SEAL KIT

Note: Not illustrated

$310.99

$

Usually ships in 3-6 days

0

15

Adapter

$

$

Not available

15:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

15:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

16

Toro 98-0207

HOSE-HYD

$188.99

$

Usually ships in 3-6 days

0

17

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

18

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 100-4205

VALVE-RELIEF, CROSSOVER

$1080.99

$

Usually ships in 3-6 days

0

20:1

Toro 100-4219

SEAL KIT

$129.99

$

Usually ships in 3-6 days

0

20:2

Toro 100-4220

CARTRIDGE-RELIEF

$340.99

$

Usually ships in 3-6 days

0

20:3

Toro 100-4221

CARTRIDGE-RELIEF

$340.99

$

Usually ships in 3-6 days

0

21

Toro 340-77

FITTING-ELBOW, 90 DEG

$30.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

21:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

22

Toro 100-8816

CAP-DUST, COUPLER

$17.99

$

In Stock, only 2 left!

0

23

Toro 100-4747

See Supercession: 105-8394
(Superseded to 105-8394)

$338.99

$

In Stock, only 1 left!

0

23:1

Toro 100-4234

See Supercession: 104-6134
(Superseded to 104-6134)

$300.99

$

Usually ships in 3-6 days

0

23:1:1

Toro 100-6119

KIT-SEAL

Note: Not illustrated

$

$

Not available

23:2

Toro 100-4236

FITTING-ADAPTER, BULKHEAD

$

$

Not available

23:2:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

23:2:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

24

Toro 100-1258

HYD TUBE ASM

$

$

Not available

24:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

25

Toro 98-0217

HYD HOSE ASM

$

$

Not available

26

Toro 98-0216

HOSE-HYD

$319.99

$

In Stock, only 1 left!

0

27

Toro 100-1259

HYD TUBE ASM

$

$

Not available

27:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

28

Toro 99-6162

CYLINDER-LIFT

$1287.99

$

Usually ships in 3-6 days

0

28:1

Toro 100-6107

SEAL KIT

Note: Not illustrated

$213.99

$

Usually ships in 3-6 days

0

29

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

30

Toro 100-6127

SLEEVE-PROTECTIVE

$45.99

$

Usually ships in 3-6 days

0

31

Toro 98-0213

HOSE-HYD

$168.99

$

Usually ships in 3-6 days

0

32

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

33

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

34

Toro 56-7973

CLAMP-TUBE

$20.99

$

Usually ships in 3-6 days

0
