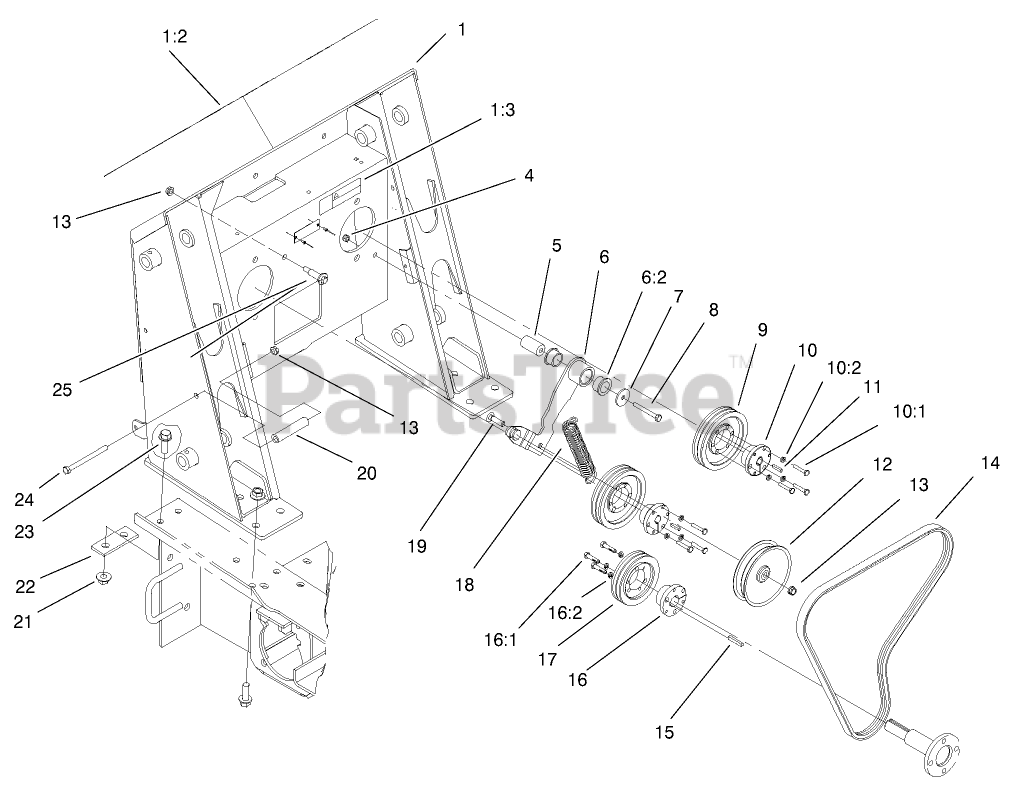

22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 200000301 - 200999999) (2000) Loader Tower And Drive Assembly Parts Diagram

Dingo Compact Utility Loader

Loader Tower And Drive Assembly Parts Diagram

  • Title

1

Toro 100-6143

LOADER TOWER ASM

$

$

Not available

1:2

Toro 100-6139

DECAL-PANEL

$

$

Not available

1:3

Toro 80-8040

DECAL-WARNING

$16.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 95-3538

See Supercession: 104-5739
(Superseded to 104-5739)

$24.99

$

Usually ships in 3-6 days

0

6

Toro 99-6167

IDLER ARM ASM

$

$

Not available

6:2

Toro 256-132

BUSHING-FLANGE

$9.99

$

In Stock, only 1 left!

0

7

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

8

Toro 322-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

9

Toro 100-4207

SHEAVE

$453.99

$

Usually ships in 3-6 days

0

10

Toro 100-4206

DISCONTINUED

$

$

Not available

10:1

Toro 100-4208

SCREW-HH

$17.99

$

Usually ships in 3-6 days

0

10:2

Toro 100-4209

See Supercession: 3253-3
(Superseded to 325-33)

$15.99

$

In Stock, only 4 left!

0

11

Toro 80-6090

KEY-PUMP

$10.99

$

In Stock, only 2 left!

0

12

Toro 95-3707

PULLEY-IDLER

$195.99

$

Usually ships in 3-6 days

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 95-3611

V-BELT

$152.99

$

In Stock, only 1 left!

0

15

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

0

16

Toro 61-3340

BUSHING

$98.99

$

Usually ships in 3-6 days

0

16:1

Toro 100-4208

SCREW-HH

$17.99

$

Usually ships in 3-6 days

0

16:2

Toro 100-4209

See Supercession: 3253-3
(Superseded to 325-33)

$15.99

$

In Stock, only 4 left!

0

17

Toro 61-3330

PULLEY

$318.99

$

Usually ships in 3-6 days

0

18

Toro 95-3535

See Supercession: 105-0383
(Superseded to 105-0383)

$110.99

$

Usually ships in 3-6 days

0

19

Toro 3231-26

SCREW-CARR

$5.99

$

In Stock, only 4 left!

0

20

Toro 100-1271

TUBE-SPACER

$23.99

$

Usually ships in 3-6 days

0

21

Toro 32128-52

NUT-LOCK, FLANGE

$2.99

$

Usually ships in 3-6 days

0

22

Toro 100-6123-01

PLATE-STIFFENER

$76.99

$

Usually ships in 3-6 days

0

23

Toro 100-6116

SCREW-HHF

$10.99

$

Usually ships in 3-6 days

0

24

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

25

Toro 56-6590

See Supercession: 136-7198
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 8

0
