22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 200000301 - 200999999) (2000) Track And Traction Assembly Parts Diagram

Dingo Compact Utility Loader

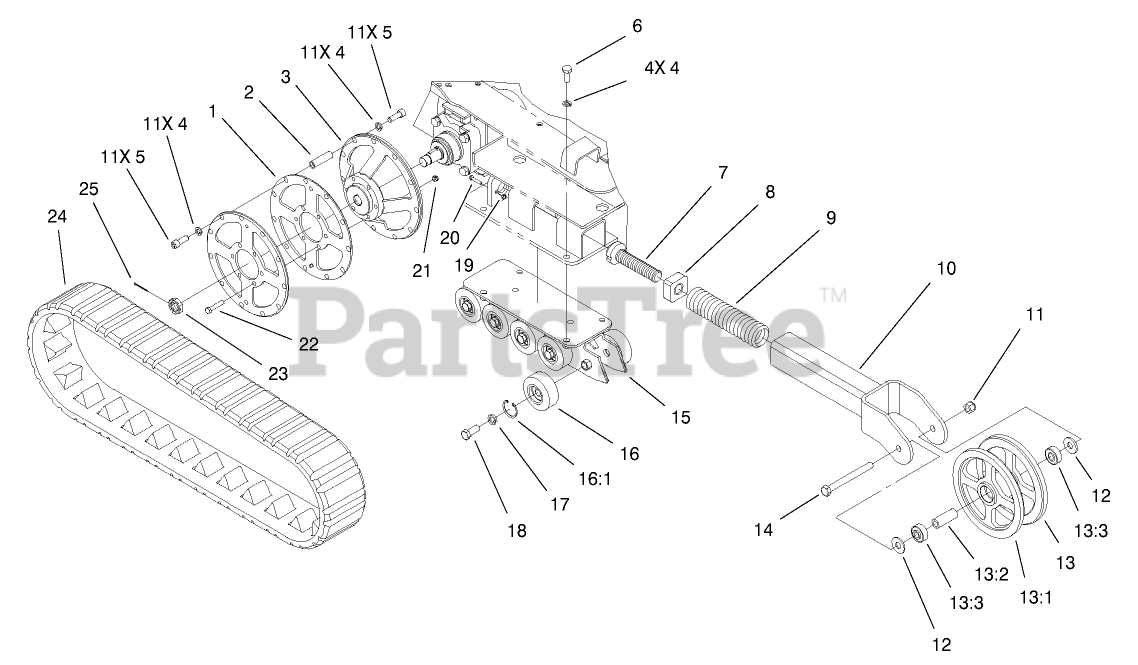

Track And Traction Assembly Parts Diagram

  • Title

1

Toro 99-6159-03

PLATE-WHEEL, DRIVE

$251.99

$

Usually ships in 3-6 days

0

2

Toro 100-1286

SPACER-WHEEL, DRIVE

$42.99

$

In Stock, only 4 left!

0

3

Toro 99-6180-03

See Supercession: 133-9417-03
(Superseded to 133-9417-03)

$824.99

$

Usually ships in 3-6 days

0

4

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

5

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 5

0

6

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 98-9846

BOLT-TENSIONER

$497.99

$

Usually ships in 3-6 days

0

8

Toro 95-3626

BLOCK-TENSIONER

$319.99

$

Usually ships in 3-6 days

0

9

Toro 95-3624

SPRING-COMPRESSION

$209.99

$

In Stock, only 1 left!

0

10

Toro 98-9801-03

See Supercession: 108-5630
(Superseded to 108-5630)

$

$

Not available

11

Toro 3296-24

NUT-HEX

$5.49

$

In Stock, Qty 20+

0

12

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Toro 100-6104

See Supercession: 104-5745
(Superseded to 104-5745)

$825.99

$

Usually ships in 3-6 days

0

13:1

Toro 99-6184-03

See Supercession: 104-5747-03
(Superseded to 104-5745)

$825.99

$

Usually ships in 3-6 days

0

13:2

Toro 98-9835

SPACER-WHEEL, TENSIONER

$19.99

$

In Stock, only 2 left!

0

13:3

Toro 93-4237

See Supercession: 120-5378
(Superseded to 120-5378)

$18.99

$

In Stock, Qty 20+

0

14

Toro 327-17

SCREW-HH

$13.99

$

In Stock, Qty 11

0

15

Toro 99-6155-03

DISCONTINUED
(Superseded to 105-5803-03)

$

$

Not available

16

Toro 99-6154

See Supercession: 106-7620
(Superseded to 106-7620)

$105.99

$

In Stock, Qty 5

0

16:1

Toro 32120-62

RING-RETAINING

$5.49

$

In Stock, Qty 12

0

17

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 321-13

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

21

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

22

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 99-3139

NUT

$18.99

$

In Stock, only 2 left!

0

24

Toro 98-9800

See Supercession: 136-5847
(Superseded to 136-5847)

$1187.99

$

Usually ships in 3-6 days

0

25

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0
