22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 200000301 - 200999999) (2000) Traction Hydraulic Assembly Parts Diagram

Dingo Compact Utility Loader

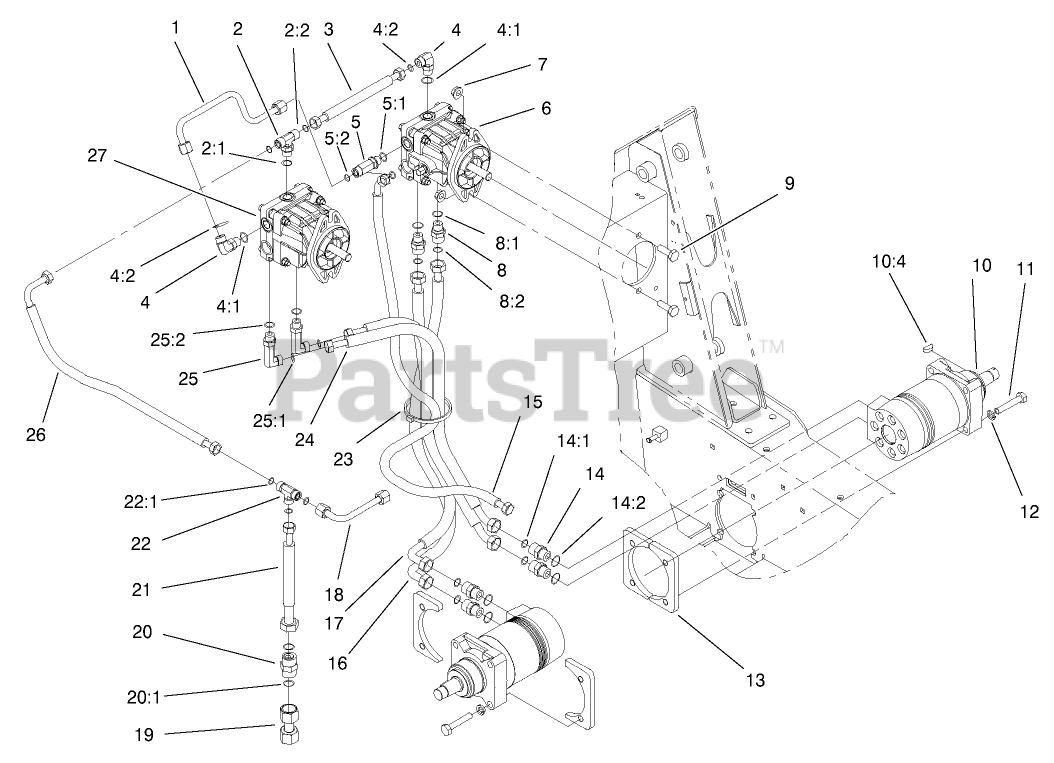

Traction Hydraulic Assembly Parts Diagram

  • Title

1

Toro 98-0200

TUBE-HYD

$303.99

$

Usually ships in 3-6 days

0

2

Toro 340-157

FITTING-HYD, TEE

$66.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

2:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

3

Toro 95-3664

HYD HOSE ASM

$166.99

$

Usually ships in 3-6 days

0

4

Toro 340-98

FITTING-ELBOW, 90 DEG

$37.99

$

In Stock, only 2 left!

0

4:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

4:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

5

Toro 340-109

FITTING-TEE

$79.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

5:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

6

Toro 98-8432

PUMP-HYDRAULIC, LH, CCW

$4326.99

$

Usually ships in 3-6 days

0

6:1

Toro 100-6110

OVERHAUL SEAL KIT

Note: Not illustrated

$97.99

$

In Stock, only 1 left!

0

6:2

Toro 100-6111

See Supercession: 127-3867
(Superseded to 127-3867)

Note: Not illustrated

$247.99

$

Usually ships in 3-6 days

0

6:3

Toro 100-6112

PLATE-VALVE

Note: Not illustrated

$294.99

$

In Stock, only 1 left!

0

7

Toro 32128-23

NUT-HF

$2.49

$

In Stock, Qty 20+

0

8

Toro 340-155

FITTING-STRAIGHT

$33.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

8:2

Toro 237-151

O-RING

$2.49

$

In Stock, only 2 left!

0

9

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

10

Toro 98-2767

MOTOR-WHEEL, HYD

$2915.99

$

Usually ships in 3-6 days

0

10:1

Toro 100-6131

SEAL KIT

Note: Not illustrated

$123.99

$

In Stock, only 2 left!

0

10:2

Toro 99-3090

SHAFT-COUPLING

Note: Not illustrated

$640.99

$

Usually ships in 3-6 days

0

10:3

Toro 100-4241

SCREW-HH

Note: Not illustrated

$51.99

$

Usually ships in 3-6 days

0

10:4

Toro 3257-42

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

11

Toro 325-11

SCREW-HH

$3.49

$

In Stock, Qty 6

0

12

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

13

Toro 98-2763-03

PLATE-MOUNTING

$127.99

$

Usually ships in 3-6 days

0

14

Toro 340-7

FITTING-STRAIGHT

$16.99

$

In Stock, only 4 left!

0

14:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

14:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

15

Toro 98-0201

HOSE-HYD

$236.99

$

Usually ships in 3-6 days

0

16

Toro 98-0177

HYD HOSE ASM

$

$

Not available

17

Toro 98-0235

HYD HOSE ASM

$

$

Not available

18

Toro 95-3517

HYD TUBE ASM

$

$

Not available

19

Toro 100-4239

HYD TUBE ASM

$

$

Not available

20

Toro 99-6161

HYD CHECK VALVE ASM

$295.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

21

Toro 95-3551

DISCONTINUED

$

$

Not available

22

Toro 340-102

ADAPTER

$79.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

23

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

24

Toro 98-0233

HOSE-HYD

$331.99

$

Usually ships in 3-6 days

0

25

Toro 99-6160

FITTING-ELBOW 90 LONG

$147.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

25:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

26

Toro 100-6130

HYD HOSE ASM

$

$

Not available

27

Toro 98-8431

PUMP-HYDRAULIC, RH, CCW

$4326.99

$

Usually ships in 3-6 days

0

27:1

Toro 100-6110

OVERHAUL SEAL KIT

Note: Not illustrated

$97.99

$

In Stock, only 1 left!

0

27:2

Toro 100-6111

See Supercession: 127-3867
(Superseded to 127-3867)

Note: Not illustrated

$247.99

$

Usually ships in 3-6 days

0

27:3

Toro 100-6112

PLATE-VALVE

Note: Not illustrated

$294.99

$

In Stock, only 1 left!

0
