22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 220000001 - 220000400) (2002) Traction Hydraulic Assembly Parts Diagram

Dingo Compact Utility Loader

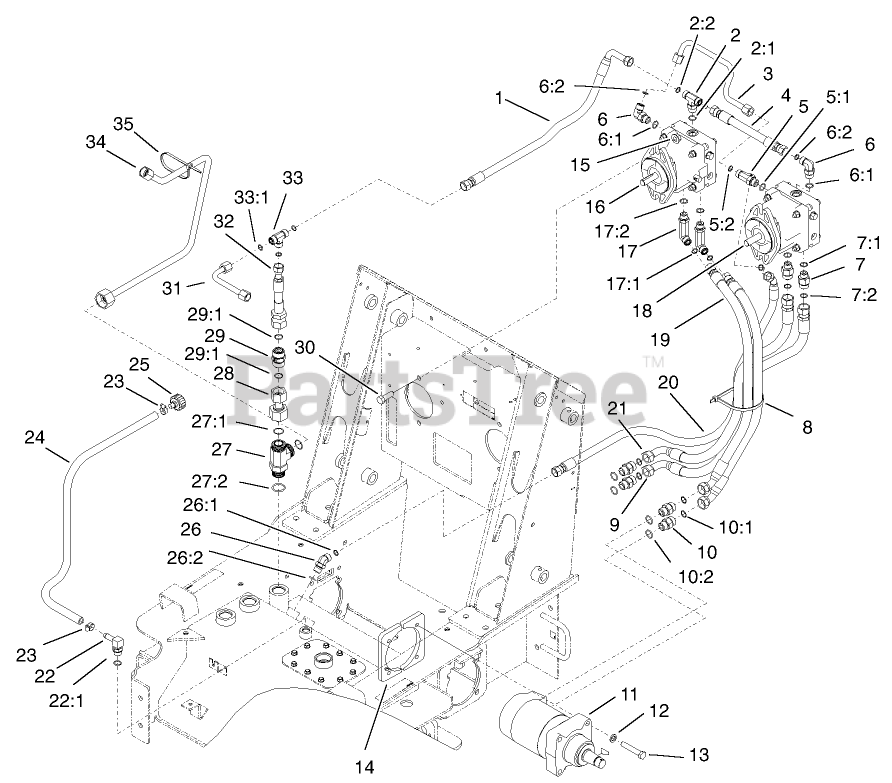

Traction Hydraulic Assembly Parts Diagram

  • Title

1

Toro 100-6130

HYD HOSE ASM

$

$

Not available

2

Toro 340-157

FITTING-HYD, TEE

$66.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

2:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

3

Toro 98-0200

TUBE-HYD

$303.99

$

Usually ships in 3-6 days

0

4

Toro 95-3664

HYD HOSE ASM

$166.99

$

Usually ships in 3-6 days

0

5

Toro 340-109

FITTING-TEE

$79.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

5:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

6

Toro 340-98

FITTING-ELBOW, 90 DEG

$37.99

$

In Stock, only 2 left!

0

6:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

6:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

7

Toro 340-155

FITTING-STRAIGHT

$33.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

7:2

Toro 237-151

O-RING

$2.49

$

In Stock, only 2 left!

0

8

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

9

Toro 98-0235

HYD HOSE ASM

$

$

Not available

10

Toro 340-7

FITTING-STRAIGHT

$16.99

$

In Stock, only 4 left!

0

10:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

10:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

11

Toro 98-2767

MOTOR-WHEEL, HYD

$2915.99

$

Usually ships in 3-6 days

0

12

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

13

Toro 325-11

SCREW-HH

$3.49

$

In Stock, Qty 5

0

14

Toro 98-2763-03

PLATE-MOUNTING

$127.99

$

Usually ships in 3-6 days

0

15

Toro 32128-23

NUT-HF

$2.49

$

In Stock, Qty 20+

0

16

Toro 98-8431

PUMP-HYDRAULIC, RH, CCW

$4326.99

$

Usually ships in 3-6 days

0

17

Toro 99-6160

FITTING-ELBOW 90 LONG

$147.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

17:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

18

Toro 98-8432

PUMP-HYDRAULIC, LH, CCW

$4326.99

$

Usually ships in 3-6 days

0

19

Toro 98-0233

HOSE-HYD

$331.99

$

Usually ships in 3-6 days

0

20

Toro 98-0201

HOSE-HYD

$236.99

$

Usually ships in 3-6 days

0

21

Toro 98-0177

HYD HOSE ASM

$

$

Not available

22

Toro 354-120

FITTING-ELBOW, 90

$37.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

23

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, only 1 left!

0

24

Toro 98-2708

HOSE-VENT

$53.99

$

Usually ships in 3-6 days

0

25

Toro 68-6150

BREATHER

$31.99

$

In Stock, only 2 left!

0

26

Toro 340-101

FITTING-HYD, 45 DEG

$41.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

26:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

27

Toro 104-3795

FITTING-TEE

$227.99

$

Usually ships in 3-6 days

0

27:1

Toro 340-65

O-RING

$5.99

$

In Stock, Qty 5

0

27:2

Toro 237-146

O-RING

$5.49

$

In Stock, Qty 7

0

28

Toro 105-0226

TUBE-HYD

$172.99

$

Usually ships in 3-6 days

0

29

Toro 99-6161

HYD CHECK VALVE ASM

$295.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

30

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

31

Toro 95-3517

HYD TUBE ASM

$

$

Not available

32

Toro 105-0225

HYD HOSE ASM

$

$

Not available

33

Toro 340-102

ADAPTER

$79.99

$

Usually ships in 3-6 days

0

33:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

34

Toro 104-5706

HYD TUBE ASM

$

$

Not available

35

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
