22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 230000301 - 230000600) (2003) Hood Assembly Parts Diagram

Dingo Compact Utility Loader

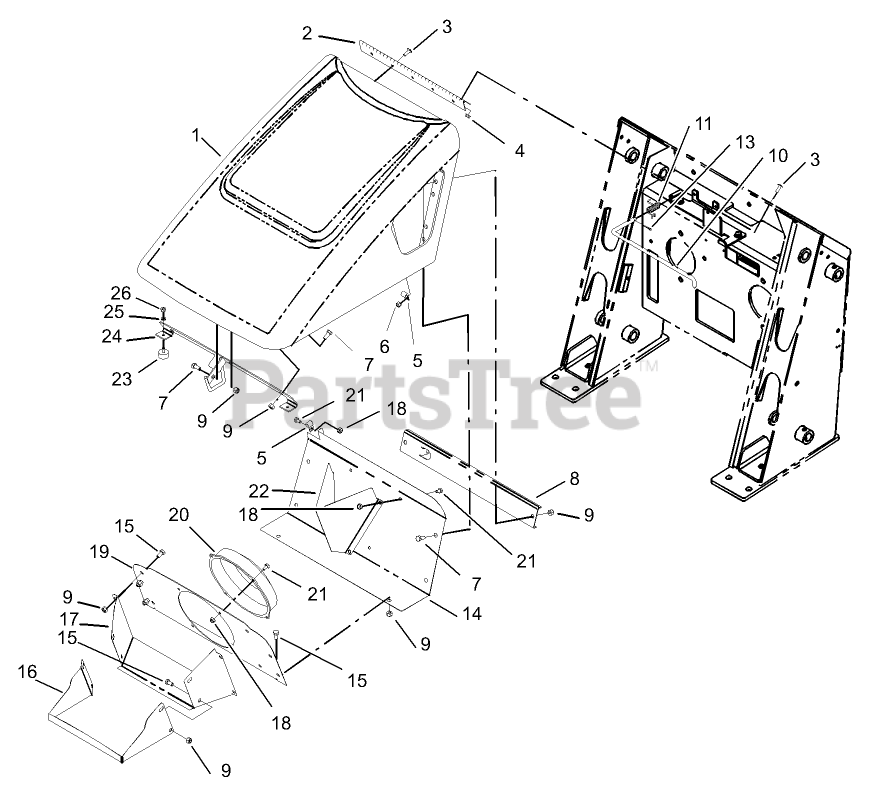

Hood Assembly Parts Diagram

  • Title

1

Toro 106-2590

ENGINE HOOD ASM

$1277.99

$

Usually ships in 3-6 days

0

2

Toro 100-1284

HINGE-HOOD

$90.99

$

In Stock, only 2 left!

0

3

Toro 9114604

SCREW-HEAD, TRUSS

$1.49

$

Usually ships in 3-6 days

0

4

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

5

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 106-2555-03

BRACKET-SUPPORT, HOOD

$114.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 106-2554

ROD-SUPPORT, HOOD

$28.99

$

Usually ships in 3-6 days

0

11

Toro 106-2584

SPRING-TORSION

$15.99

$

Usually ships in 3-6 days

0

13

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

14

Toro 106-2596-03

BRACKET-FAN, BACK

$

$

Not available

15

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 104-2813-03

SHROUD-FAN, FRONT

$89.99

$

Usually ships in 3-6 days

0

17

Toro 106-2597-03

SHROUD-FAN

$158.99

$

Usually ships in 3-6 days

0

18

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

19

Toro 106-2595-03

BRACKET-BAFFLE, FAN

$

$

Not available

20

Toro 104-2809

FAN

$573.99

$

Usually ships in 3-6 days

0

21

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

22

Toro 104-2811-03

BAFFLE-FAN

$87.99

$

Usually ships in 3-6 days

0

23

Toro 240-14

BUMPER-RUBBER

$16.99

$

Usually ships in 3-6 days

0

24

Toro 100-1297-03

ROD LATCH ASM

$

$

Not available

25

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 9

0
