22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 230000301 - 230000600) (2003) Main Frame and Fuel Tank Assembly Parts Diagram

Dingo Compact Utility Loader

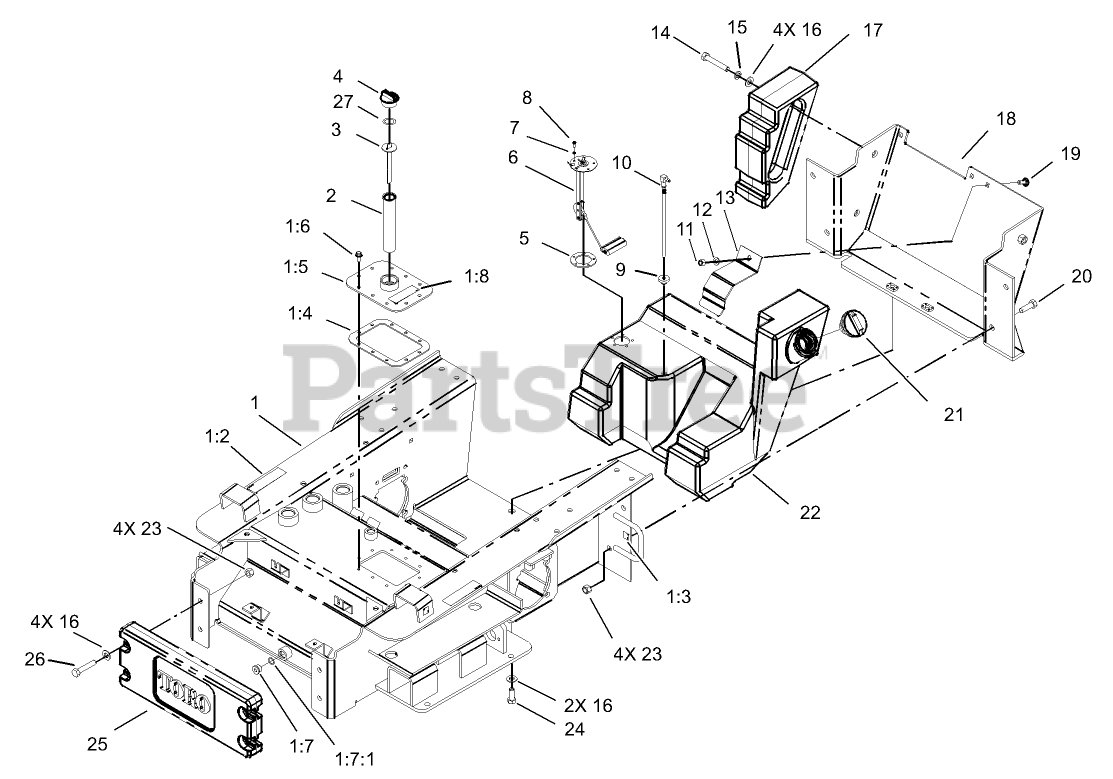

Main Frame and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 105-5830

CHASSIS ASM

$7252.99

$

Usually ships in 3-6 days

0

1:2

Toro 100-6141

DECAL-PINCH

$39.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-9084

DECAL-POINT, LIFT

$8.99

$

Usually ships in 3-6 days

0

1:4

Toro 100-1253

GASKET-COVER, ACCESS

$

$

Not available

1:5

Toro 104-8389-01

TANK COVER ASM

$

$

Not available

1:6

Toro 98-9940

SCREW-HHF

$2.49

$

In Stock, Qty 10

0

1:7

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

1:7:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

1:8

Toro 105-8432

DECAL-OIL, HYD

$6.99

$

Usually ships in 3-6 days

0

2

Toro 61-2790

FILTER-SCREEN

$77.99

$

Usually ships in 3-6 days

0

3

Toro 100-2097

DIPSTICK-OIL

$62.99

$

Usually ships in 3-6 days

0

4

Toro 93-7498

PLUG-PLASTIC

$30.99

$

In Stock, only 4 left!

0

5

Toro 113372

GASKET-SENDER, FUEL

$4.49

$

In Stock, only 1 left!

0

6

Toro 100-1298

SENDER-FUEL

$197.99

$

Usually ships in 3-6 days

0

7

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

8

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

10

Toro 98-0185

PIPE-STAND

$45.99

$

In Stock, only 2 left!

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 1 left!

0

13

Toro 100-1257-03

CLAMP-TANK, FUEL

$

$

Not available

14

Toro 325-12

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

15

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 99-6165-01

COUNTERWEIGHT-REAR

$508.99

$

Usually ships in 3-6 days

0

18

Toro 105-0373-01

REAR FRAME COVER ASM

$

$

Not available

19

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

20

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

21

Toro 93-3101

See Supercession: 115-5304
(Superseded to 115-5304)

$35.99

$

In Stock, Qty 16

0

22

Toro 95-3619

See Supercession: 115-0799
(Superseded to 115-0799)

$501.99

$

Usually ships in 3-6 days

0

23

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

25

Toro 99-6166-01

COUNTERWEIGHT-FRONT

$

$

Not available

26

Toro 325-10

SCREW-HH

$5.99

$

In Stock, only 1 left!

0

27

Toro 327-123

O-Ring

$

$

Currently unavailable
