22306 (TX 420) - Toro Dingo Compact Utility Loader (SN: 240000901 - 240999999) (2004) Loader Arm Assembly Parts Diagram

Dingo Compact Utility Loader

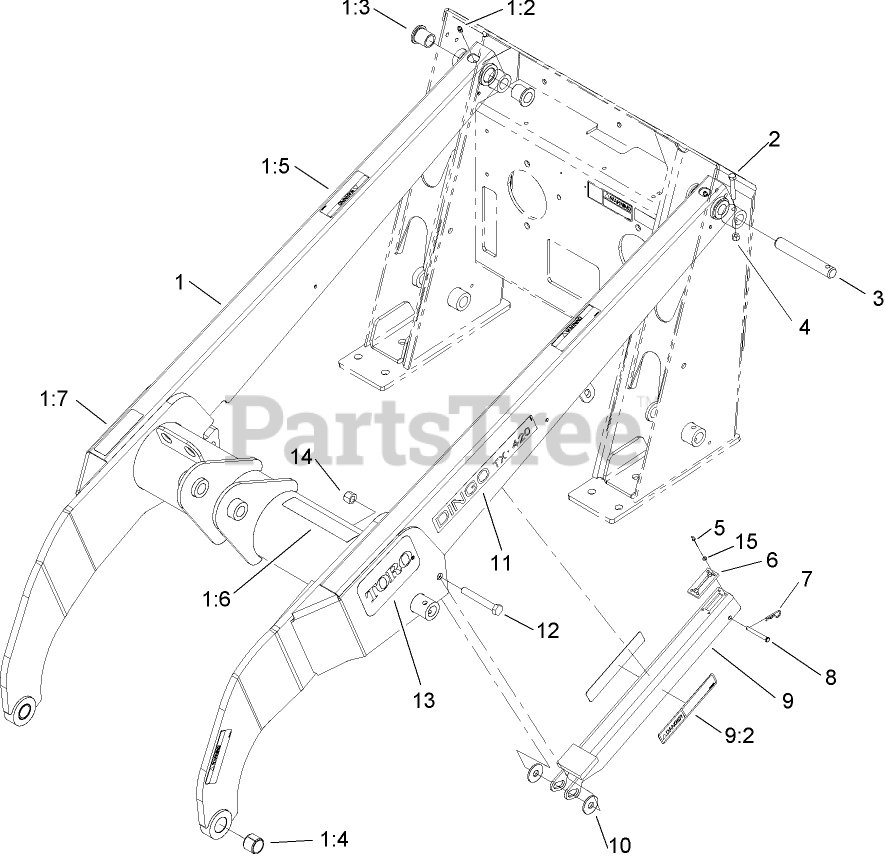

Loader Arm Assembly Parts Diagram

  • Title

1

Toro 106-9350

LOADER ARM ASM

$5089.99

$

Usually ships in 3-6 days

0

1:2

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

1:3

Toro 95-3577

BUSHING

$16.99

$

In Stock, only 4 left!

0

1:4

Toro 98-4871

BUSHING-TENSION

$26.99

$

In Stock, only 2 left!

0

1:5

Toro 100-6141

DECAL-PINCH

$39.99

$

Usually ships in 3-6 days

0

1:6

Toro 100-6132

DECAL-CAUTION

$24.99

$

Usually ships in 3-6 days

0

1:7

Toro 100-6101

DECAL-CAUTION

$24.99

$

Usually ships in 3-6 days

0

2

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

3

Toro 104-2849

PIN-LOCKING

$77.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 3269-8

RIVET-BLIND

$0.99

$

Usually ships in 3-6 days

0

6

Toro 98-0083

STOP-RUBBER

$20.99

$

Usually ships in 3-6 days

0

7

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

8

Toro 283-48

PIN-CLEVIS

$18.99

$

Usually ships in 3-6 days

0

9

Toro 100-6105

LOCKING ARM ASM

$

$

Not available

9:2

Toro 100-6135

DECAL-DANGER

$31.99

$

Usually ships in 3-6 days

0

10

Toro 68-1440

WASHER-RUBBER

$8.99

$

Usually ships in 3-6 days

0

11

Toro 105-8430

DECAL

$

$

Not available

12

Toro 325-14

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

13

Toro 105-1217

DECAL

$44.99

$

In Stock, Qty 6

0

14

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 104-5112

WASHER-FLAT

$

$

Not available
