22307 (TX 425) - Toro Dingo Wide Track Compact Utility Loader (SN: 250000401 - 250999999) (2005) Track and Traction Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

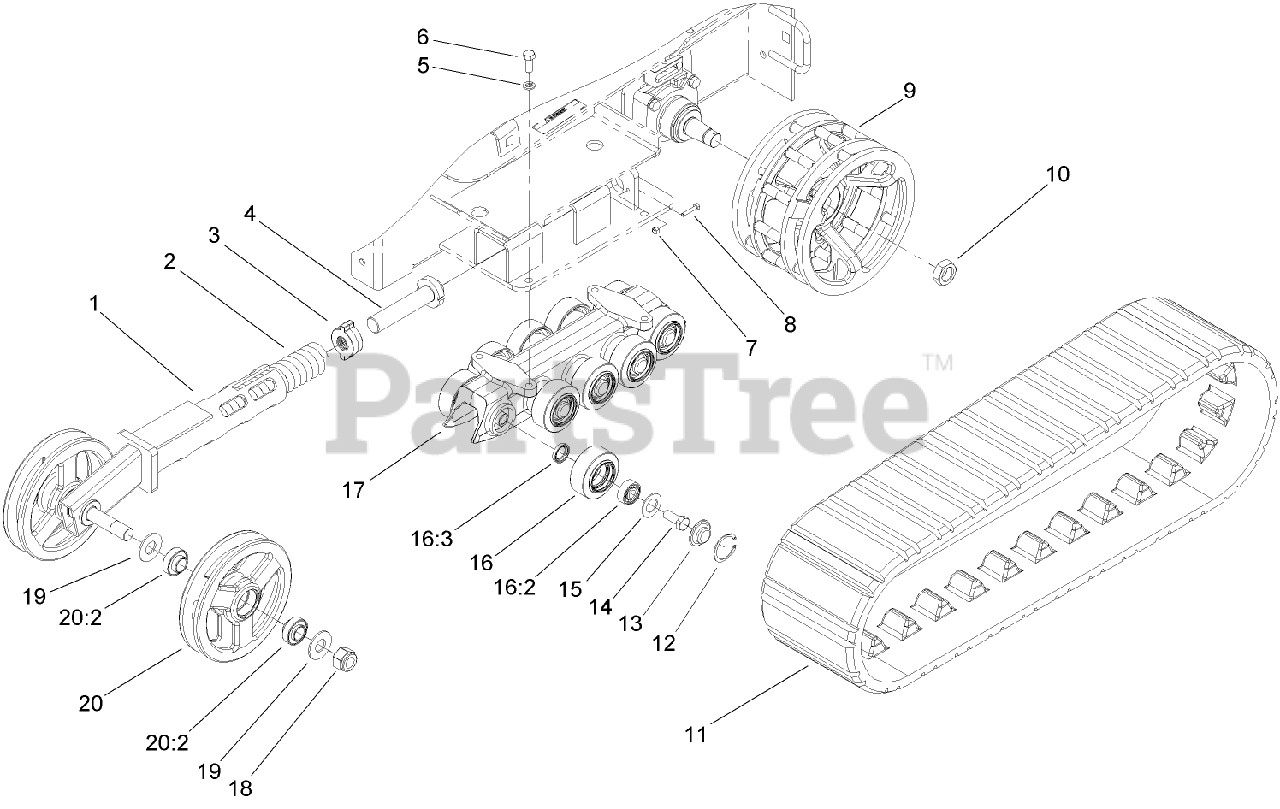

Track and Traction Assembly Parts Diagram

  • Title

1

Toro 108-4661-03

See Supercession: 115-0717-03
(Superseded to 115-0717-03)

$

$

Not available

2

Toro 95-3624

SPRING-COMPRESSION

$209.99

$

In Stock, only 1 left!

0

3

Toro 108-4664

BLOCK-TENSIONER

$149.99

$

Usually ships in 3-6 days

0

4

Toro 98-9846

BOLT-TENSIONER

$497.99

$

Usually ships in 3-6 days

0

5

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

6

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-13

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

9

Toro 108-5646-03

See Supercession: 110-0146-03
(Superseded to 110-0146-03)

$2260.99

$

Usually ships in 3-6 days

0

10

Toro 107-9319

NUT-HEX

$49.99

$

In Stock, only 2 left!

0

11

Toro 100-8931

See Supercession: 136-5848
(Superseded to 136-5848)

$1395.99

$

Usually ships in 3-6 days

0

12

Toro 106-7595

RING-SNAP, INTERNAL

$5.99

$

In Stock, Qty 7

0

13

Toro 106-7557

CAP-WHEEL, BEARING

$5.99

$

In Stock, only 3 left!

0

14

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 106-7585

GASKET-BOGIE

$2.49

$

In Stock, Qty 8

0

16

Toro 106-7621

ROAD WHEEL ASM
(Superseded to 138-0782)

$108.99

$

In Stock, only 3 left!

0

16:2

Toro 93-4237

See Supercession: 120-5378
(Superseded to 120-5378)

$18.99

$

In Stock, Qty 20+

0

16:3

Toro 253-118

SEAL-OIL

$21.99

$

In Stock, only 4 left!

0

17

Toro 106-7592-03

See Supercession: 117-1308-03
(Superseded to 117-1308-0P)

$934.99

$

Usually ships in 3-6 days

0

18

Toro 104-2024

NUT-HEX, NI

$23.99

$

In Stock, only 2 left!

0

19

Toro 104-6126

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

20

Toro 104-6123

TENSIONER WHEEL ASM
(Superseded to 138-0783)

$648.99

$

Usually ships in 3-6 days

0

20:2

Toro 104-6129

BEARING-BALL

$157.99

$

In Stock, only 2 left!

0
