22308 (TX 413) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) Loader and Quick Attach Assembly Parts Diagram

Dingo Compact Utility Loader

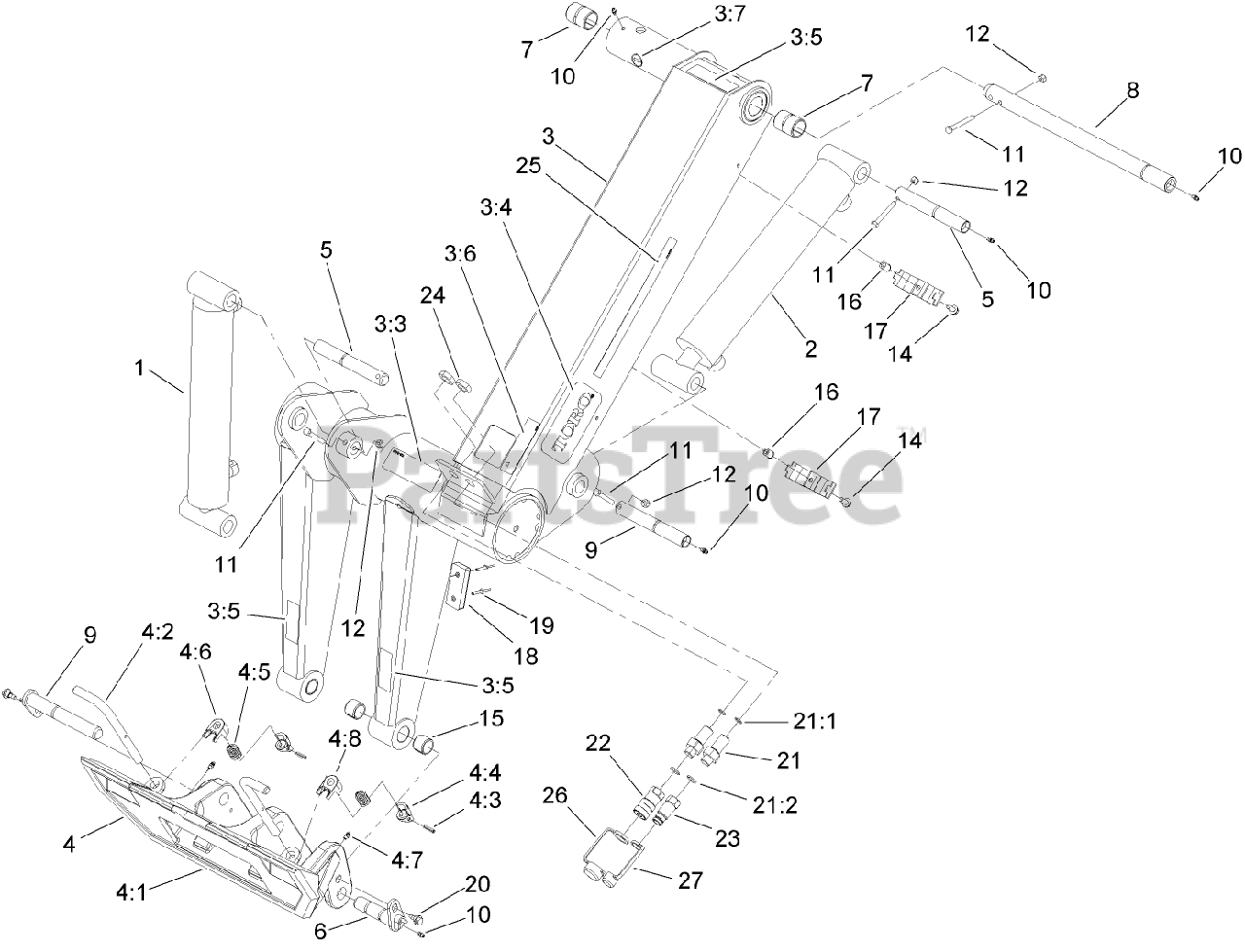

Loader and Quick Attach Assembly Parts Diagram

  • Title

1

Toro 106-3161

CYLINDER-HYD

$1457.99

$

Usually ships in 3-6 days

0

1:1

Toro 106-9466

SEAL KIT

Note: Not illustrated

$

$

Not available

2

Toro 106-3162

CYLINDER-HYD

$1310.99

$

In Stock, only 2 left!

0

2:1

Toro 106-9467

SEAL KIT

Note: Not illustrated

$

$

Not available

3

Toro 108-4633

LOADER ARM ASM

$4607.99

$

Usually ships in 3-6 days

0

3:3

Toro 106-9451

DECAL-CAUTION

$

$

Not available

3:4

Toro 105-1217

DECAL

$44.99

$

In Stock, Qty 6

0

3:5

Toro 100-6141

DECAL-PINCH

$39.99

$

Usually ships in 3-6 days

0

3:6

Toro 100-6101

DECAL-CAUTION

$24.99

$

Usually ships in 3-6 days

0

3:7

Toro 58-6520

DECAL-GREASE

$3.99

$

In Stock, only 3 left!

0

4

Toro 106-9426

QUICK ATTACH ASM

$

$

Not available

4:1

Toro 106-3156-03

MOUNT-QTACH

$

$

Not available

4:2

Toro 105-8367

See Supercession: 132-8419
(Superseded to 132-8419)

$37.99

$

In Stock, only 2 left!

0

4:3

Toro 3285-1

PIN-GROOVED

$2.49

$

In Stock, only 1 left!

0

4:4

Toro 105-0246

CAM

$81.99

$

In Stock, only 1 left!

0

4:5

Toro 98-4694

SPRING-COMPRESSION

$13.99

$

Usually ships in 3-6 days

0

4:6

Toro 104-5909

STOP-RH

$67.99

$

Usually ships in 3-6 days

0

4:7

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

4:8

Toro 104-5903

STOP-LH

$67.99

$

In Stock, only 2 left!

0

5

Toro 105-9075

PIN-PIVOT

$

$

Not available

6

Toro 106-3139

PIVOT PIN ASM

$

$

Not available

7

Toro 106-3133

BUSHING-TENSION, LOADER ARM

$

$

Not available

8

Toro 106-3164

PIN-PIVOT, LOADER ARM

$

$

Not available

9

Toro 106-3140

PIVOT PIN ASM

$

$

Not available

10

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

11

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

12

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 98-4871

BUSHING-TENSION

$26.99

$

In Stock, only 2 left!

0

16

Toro 32148-7

NUT-CLINCH

$4.49

$

Usually ships in 3-6 days

0

17

Toro 107-3553-03

CLAMP-HOSE

$

$

Not available

18

Toro 86-5350

BUMPER-RUBBER

$73.99

$

Usually ships in 3-6 days

0

19

Toro 3269-11

RIVET-POP

$1.49

$

Usually ships in 3-6 days

0

20

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, Qty 20+

0

21

Toro 98-9907

UNION-BULKHEAD

$90.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

21:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

22

Toro 104-6115

COUPLER-FEMALE

$342.99

$

Usually ships in 3-6 days

0

22:1

Toro 107-9300

SEAL KIT

Note: Not illustrated

$

$

Not available

23

Toro 104-6114

NIPPLE-CONNECTOR

$165.99

$

Usually ships in 3-6 days

0

23:1

Toro 107-9301

SEAL KIT

Note: Not illustrated

$

$

Not available

24

Toro 340-127

NUT-BULKHEAD

$7.99

$

Usually ships in 3-6 days

0

25

Toro 106-9452

DECAL-MODEL

$

$

Not available

26

Toro 105-5865

CAP-DUST

$

$

Not available

27

Toro 105-5866

PLUG-DUST

$20.99

$

Usually ships in 3-6 days

0
