22311 (220) - Toro Dingo Compact Utility Loader (SN: 210000001 - 210999999) (2001) Rear Wheel Assembly Parts Diagram

Dingo Compact Utility Loader

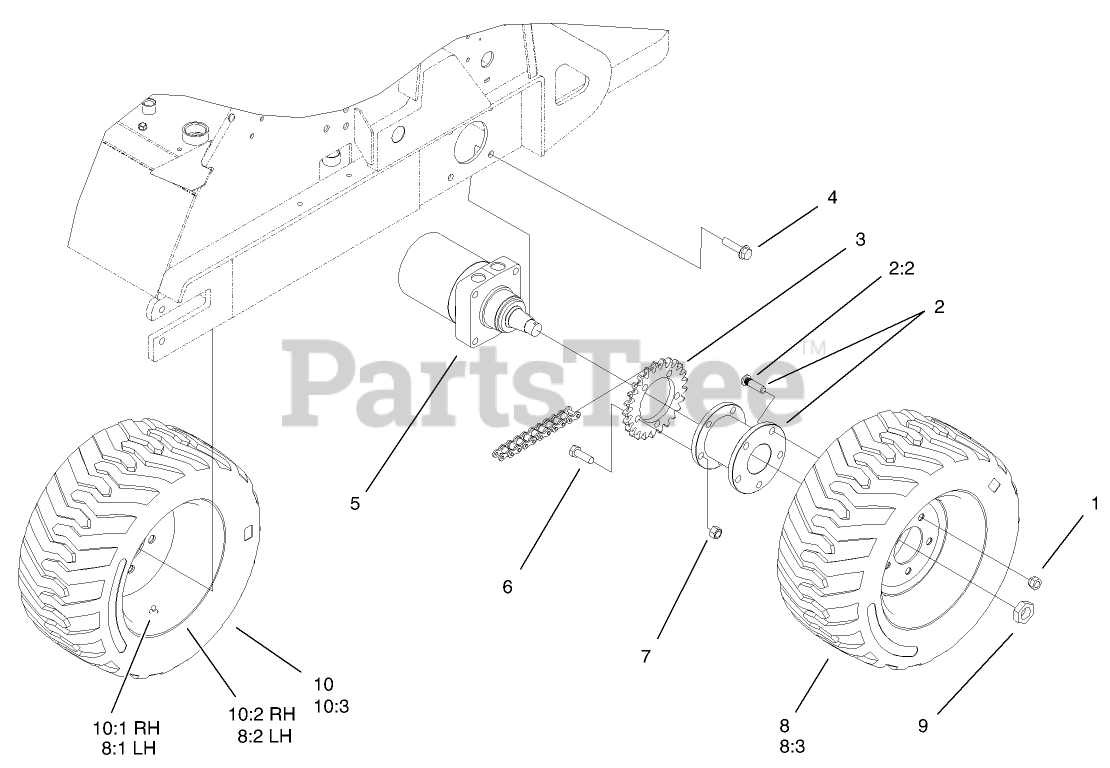

Rear Wheel Assembly Parts Diagram

  • Title

1

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

2

Toro 100-9990

REAR HUB ASM

$590.99

$

Usually ships in 3-6 days

0

2:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

3

Toro 98-9937

SPROCKET-25T

$287.99

$

Usually ships in 3-6 days

0

4

Toro 3234-27

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

5

Toro 99-3052

HYD MOTOR ASM

$2906.99

$

Usually ships in 3-6 days

0

6

Toro 325-7

SCREW-HH

$2.49

$

In Stock, Qty 11

0

7

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 98-2747

LH WHEEL AND TIRE ASM
(Superseded to 144-2575)

$427.99

$

Usually ships in 3-6 days

0

8:1

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

8:2

Toro 98-2748

WHEEL
(Superseded to 144-2572)

$215.99

$

Usually ships in 3-6 days

0

8:3

Toro 98-2749

TIRE
(Superseded to 144-2573)

$295.99

$

Usually ships in 3-6 days

0

9

Toro 26-3790

NUT-LOCK

$32.99

$

Usually ships in 3-6 days

0

10

Toro 99-1447

RH WHEEL AND TIRE ASM
(Superseded to 144-2574)

$427.99

$

Usually ships in 3-6 days

0

10:1

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

10:2

Toro 98-2748

WHEEL
(Superseded to 144-2572)

$215.99

$

Usually ships in 3-6 days

0

10:3

Toro 98-2749

TIRE
(Superseded to 144-2573)

$295.99

$

Usually ships in 3-6 days

0
