22311 (220) - Toro Dingo Compact Utility Loader (SN: 220000001 - 220999999) (2002) Electrical Assembly Parts Diagram

Dingo Compact Utility Loader

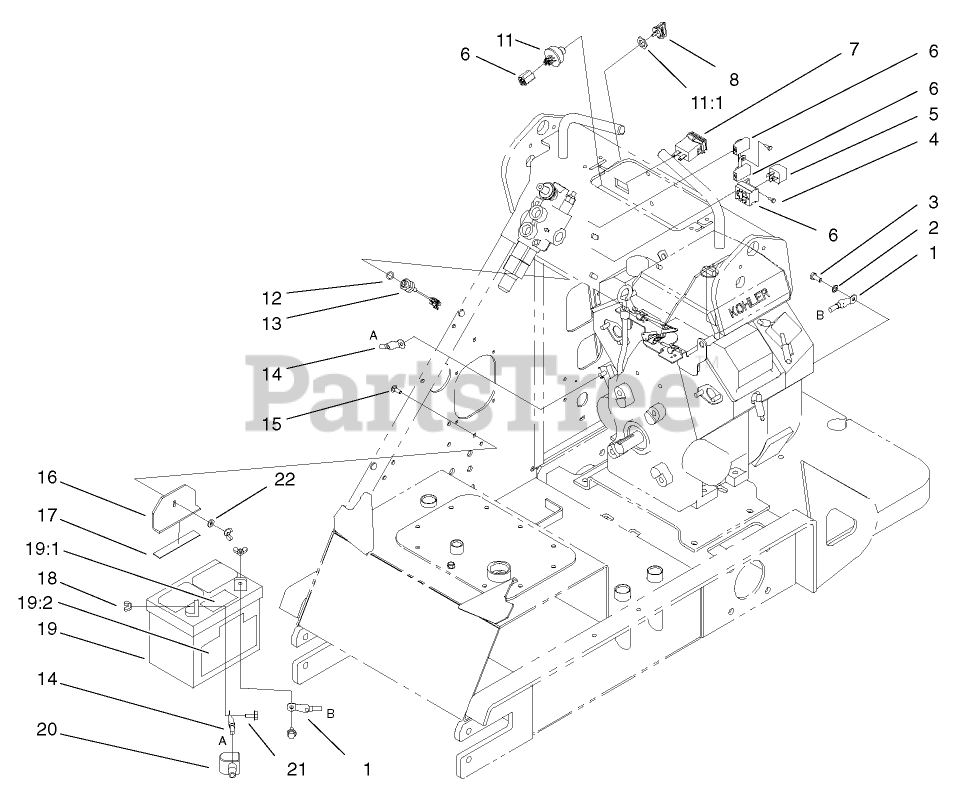

Electrical Assembly Parts Diagram

  • Title

1

Toro 111074

CABLE-BLACK

$29.99

$

Usually ships in 3-6 days

0

2

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

3

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

4

Toro 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

5

Toro 98-7249

RELAY

$25.99

$

In Stock, Qty 11

0

6

Toro 98-4650

HARNESS-ELECTRICAL

$226.99

$

Usually ships in 3-6 days

0

7

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$76.99

$

In Stock, Qty 6

0

8

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

11

Toro 116338

KEY SWITCH ASM

$86.99

$

In Stock, only 2 left!

0

11:1

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

11:2

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

12

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

13

Toro 72-4310

SWITCH-BALL

$112.99

$

Usually ships in 3-6 days

0

14

Toro 92-6989

WIRE-21 INCH

$29.99

$

Usually ships in 3-6 days

0

15

Toro 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

16

Toro 105-8401-03

CLAMP-BATTERY

$22.99

$

Usually ships in 3-6 days

0

17

Toro 94-9566

PAD-FOOTREST

$6.99

$

Usually ships in 3-6 days

0

18

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 3 left!

0

19

Toro 104-2492

BATTERY-DRY

$

$

Not available

19:1

Toro 104-4163

Decal-Battery

$

$

Currently unavailable

19:2

Toro 104-5091

Decal-Battery

$

$

Currently unavailable

20

Toro 77-0981

BOOT-TERMINAL, RED

$18.99

$

Usually ships in 3-6 days

0

21

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
