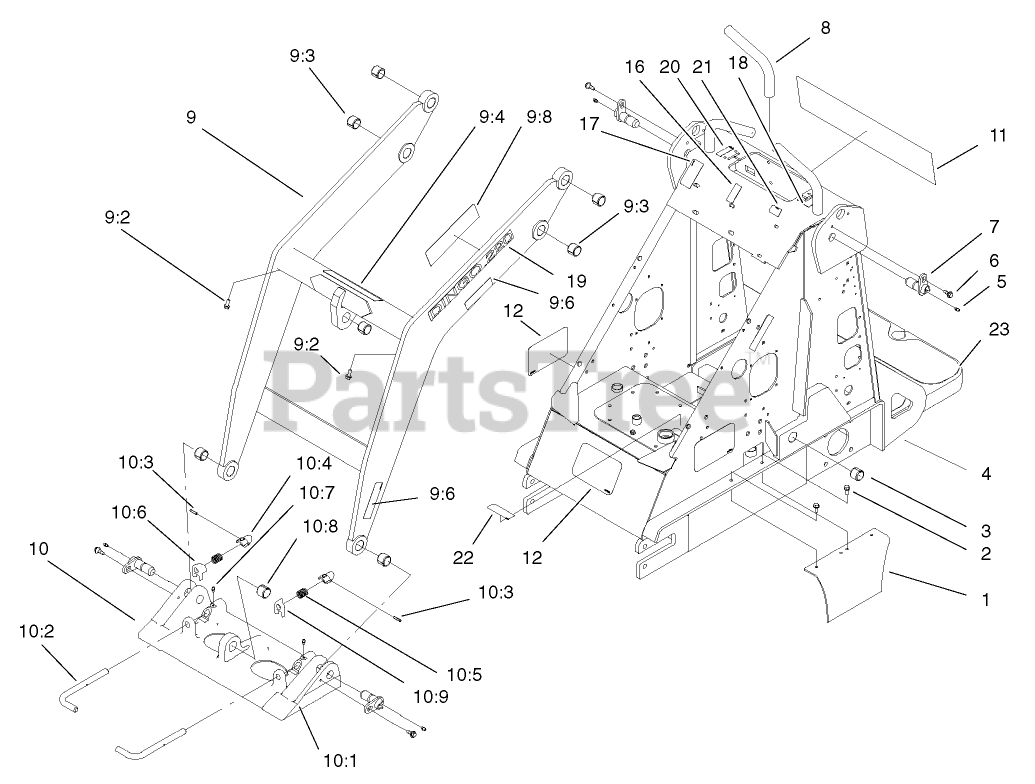

22311 (220) - Toro Dingo Compact Utility Loader (SN: 220000001 - 220999999) (2002) Frame and Loader Arm Assembly Parts Diagram

Dingo Compact Utility Loader

Frame and Loader Arm Assembly Parts Diagram

  • Title

1

Toro 98-4669-01

COVER-CHAIN

$104.99

$

Usually ships in 3-6 days

0

2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

3

Toro 98-4871

BUSHING-TENSION

$26.99

$

In Stock, only 2 left!

0

4

Toro 99-1355

DISCONTINUED

$

$

Not available

5

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

6

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, Qty 20+

0

7

Toro 99-1414

See Supercession: 112-2609
(Superseded to 112-2609)

$121.99

$

In Stock, only 2 left!

0

8

Toro 98-4845

GRIP-CUSHION

$15.99

$

Usually ships in 3-6 days

0

9

Toro 105-8366

See Supercession: 106-8155
(Superseded to 106-8155)

$2690.99

$

Usually ships in 3-6 days

0

9:2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9:3

Toro 98-4871

BUSHING-TENSION

$26.99

$

In Stock, only 2 left!

0

9:4

Toro 98-4682

DECAL-CAUTION

$22.99

$

Usually ships in 3-6 days

0

9:5

Toro 98-9051

DECAL-DANGER

$33.99

$

In Stock, only 1 left!

0

9:6

Toro 100-6141

DECAL-PINCH

$39.99

$

Usually ships in 3-6 days

0

10

Toro 105-8364

See Supercession: 132-8418
(Superseded to 132-8418)

$1652.99

$

Usually ships in 3-6 days

0

10:1

Toro 105-0245-03

See Supercession: 130-7708-03
(Superseded to 130-7708-03)

$

$

Not available

10:2

Toro 105-8367

See Supercession: 132-8419
(Superseded to 132-8419)

$37.99

$

In Stock, only 2 left!

0

10:3

Toro 3285-1

PIN-GROOVED

$2.49

$

In Stock, only 1 left!

0

10:4

Toro 105-0246

CAM

$81.99

$

In Stock, only 1 left!

0

10:5

Toro 98-4694

SPRING-COMPRESSION

$13.99

$

Usually ships in 3-6 days

0

10:6

Toro 104-5909

STOP-RH

$67.99

$

Usually ships in 3-6 days

0

10:7

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

10:8

Toro 98-4871

BUSHING-TENSION

$26.99

$

In Stock, only 2 left!

0

10:9

Toro 104-5903

STOP-LH

$67.99

$

In Stock, only 2 left!

0

11

Toro 99-1385

DECAL-PANEL, INSTRUMENT

$

$

Not available

12

Toro 62-5550

DECAL

$11.99

$

In Stock, only 2 left!

0

16

Toro 98-8235

DECAL-SELECTOR

$17.99

$

Usually ships in 3-6 days

0

17

Toro 98-4677

DECAL-POWER, AUXILIARY

$7.49

$

Usually ships in 3-6 days

0

18

Toro 98-8219

DECAL-THROTTLE

$17.99

$

Usually ships in 3-6 days

0

19

Toro 105-6229

See Supercession: 105-8426
(Superseded to 105-8426)

$21.99

$

Usually ships in 3-6 days

0

20

Toro 94-2551

DECAL-CHOKE

$39.99

$

Usually ships in 3-6 days

0

21

Toro 98-8220

DECAL-LIMITER, SPEED

$19.99

$

Usually ships in 3-6 days

0

22

Toro 105-8404

See Supercession: 105-8432
(Superseded to 105-8432)

$6.99

$

Usually ships in 3-6 days

0

23

Toro 98-9947

TREAD-FOOT

$35.99

$

Usually ships in 3-6 days

0
