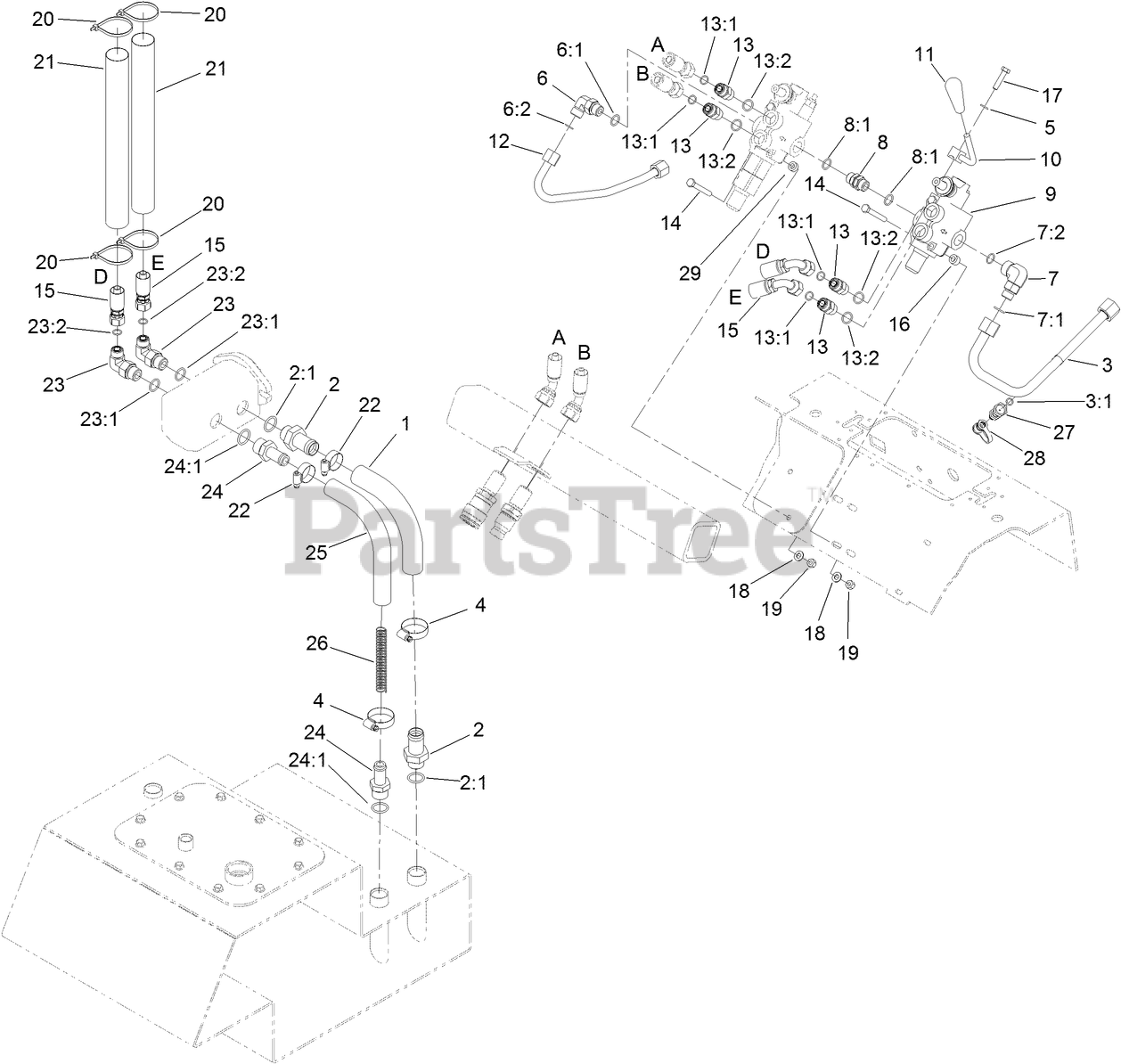

22317 (220) - Toro Dingo Compact Utility Loader (SN: 400000000 - 999999999) Selector Valve Assembly Parts Diagram

Dingo Compact Utility Loader

Selector Valve Assembly Parts Diagram

  • Title

1

Toro 99-3046

HOSE-SUCTION, FORMED

$226.99

$

Usually ships in 3-6 days

0

2

Toro 99-3017

FITTING

$89.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

3

Toro 108-4716

HYD TUBE ASM

$183.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

4

Toro 2412-111

CLAMP

$5.49

$

Usually ships in 3-6 days

0

5

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 340-98

FITTING-ELBOW, 90 DEG

$37.99

$

In Stock, only 2 left!

0

6:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

6:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

7

Toro 340-153

FITTING-ELBOW, 90 DEG

$103.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

7:2

Toro 237-151

O-RING

$2.49

$

In Stock, only 2 left!

0

8

Toro 95-3209

FITTING-THREAD, STRAIGHT

$26.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

9

Toro 99-3072

VALVE-SELECTOR, HYD

$1120.99

$

Usually ships in 3-6 days

0

10

Toro 108-9709-03

LEVER-CONTROL

$121.99

$

Usually ships in 3-6 days

0

11

Toro 98-0152

KNOB-TAPERED

$25.99

$

Usually ships in 3-6 days

0

12

Toro 105-7879

TUBE-HYD

$103.99

$

Usually ships in 3-6 days

0

13

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

13:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

13:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

14

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

15

Toro 98-4747

HOSE-HYD

$298.99

$

Usually ships in 3-6 days

0

16

Toro 98-4695

SPACER

$8.49

$

Usually ships in 3-6 days

0

17

Toro 33114-035

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

21

Toro 108-9715

SLEEVE-THERMAL

$45.99

$

Usually ships in 3-6 days

0

22

Toro 2412-129

CLAMP-HOSE

$5.99

$

In Stock, only 3 left!

0

23

Toro 340-105

FITTING-ELBOW, 90 DEG

$47.99

$

In Stock, only 2 left!

0

23:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

23:2

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

24

Toro 354-73

FITTING

$44.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

25

Toro 98-2713

HOSE-SUCTION, HYD

$31.99

$

Usually ships in 3-6 days

0

26

Toro 99-5349

SPRING-COMPRESSION

$12.99

$

Usually ships in 3-6 days

0

27

Toro 86-5480

NIPPLE-TEST

$77.99

$

Usually ships in 3-6 days

0

28

Toro 354-79

CAP-DUST

$10.99

$

Usually ships in 3-6 days

0

29

Toro 100-2085

SPACER

$21.99

$

Usually ships in 3-6 days

0
