22318 (323) - Toro Dingo Compact Utility Loader (SN: 314000001 - 314999999) (2014) Four Spool Hydraulic Valve Assembly No. 105-8377 Parts Diagram

Dingo Compact Utility Loader

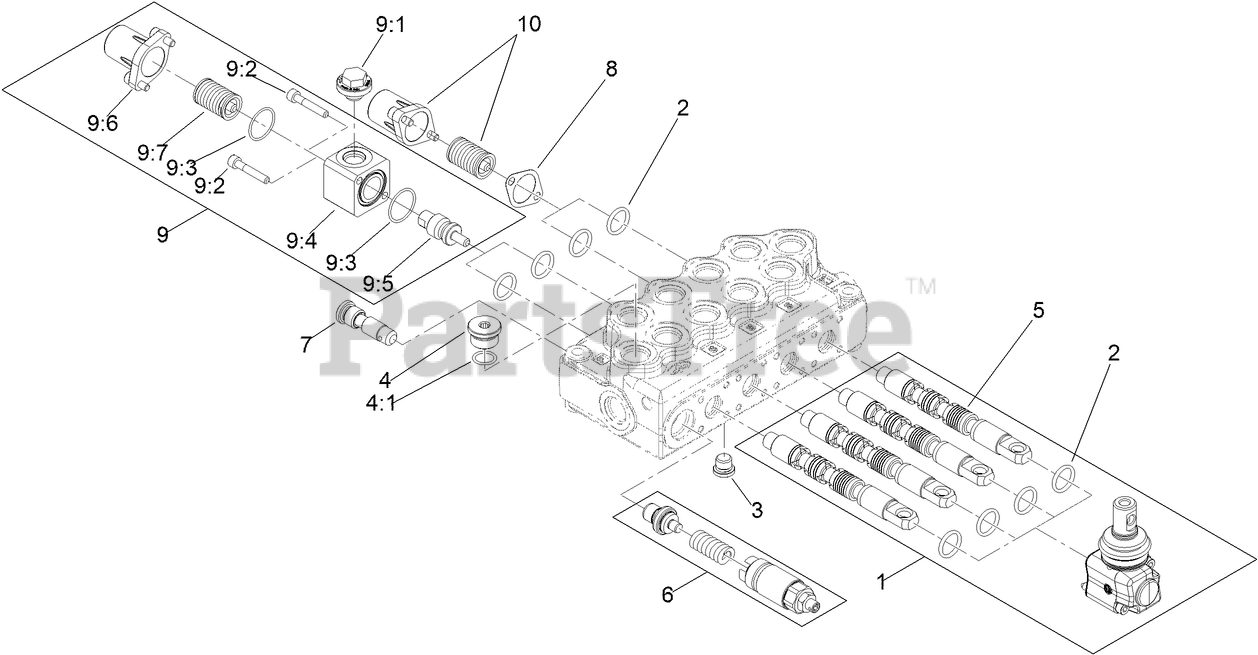

Four Spool Hydraulic Valve Assembly No. 105-8377 Parts Diagram

  • Title

1

Toro 139-8891

LSG/S5 LEVER KIT WITH SCREWS

$53.99

$

Usually ships in 3-6 days

0

2

Toro 139-8886

O-RING SEAL, 70 SH

$

$

Currently unavailable

3

Toro 139-8884

SAE 4 PLUG

$11.99

$

Usually ships in 3-6 days

0

4

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

5

Toro 105-8441

SPOOL-VALVE

$366.99

$

Usually ships in 3-6 days

0

6

Toro 139-8890

VMD5 (JN) INLET PART

$

$

Currently unavailable

7

Toro 139-8880

KIT-VALVE BODY

$

$

Currently unavailable

8

Toro 99-3074

GASKET

$23.99

$

Usually ships in 3-6 days

0

9

Toro 139-8887

S5 COMMAND KIT

$218.99

$

Usually ships in 3-6 days

0

9:1

Plug

Note: Not serviced separately

$

$

Not available

9:2

Screw

Note: Not serviced separately

$

$

Not available

9:3

ORING

Note: Not serviced separately

$

$

Not available

9:4

Block

Note: Not serviced separately

$

$

Not available

9:5

Pin

Note: Not serviced separately

$

$

Not available

9:6

End Cap

Note: Not serviced separately

$

$

Not available

9:7

Spring

Note: Not serviced separately

$

$

Not available

10

Toro 161-1080

S5 END CAP KIT

$

$

Not available
