22318 (323) - Toro Dingo Compact Utility Loader (SN: 405710000 - 409342968) Frame Assembly Parts Diagram

Dingo Compact Utility Loader

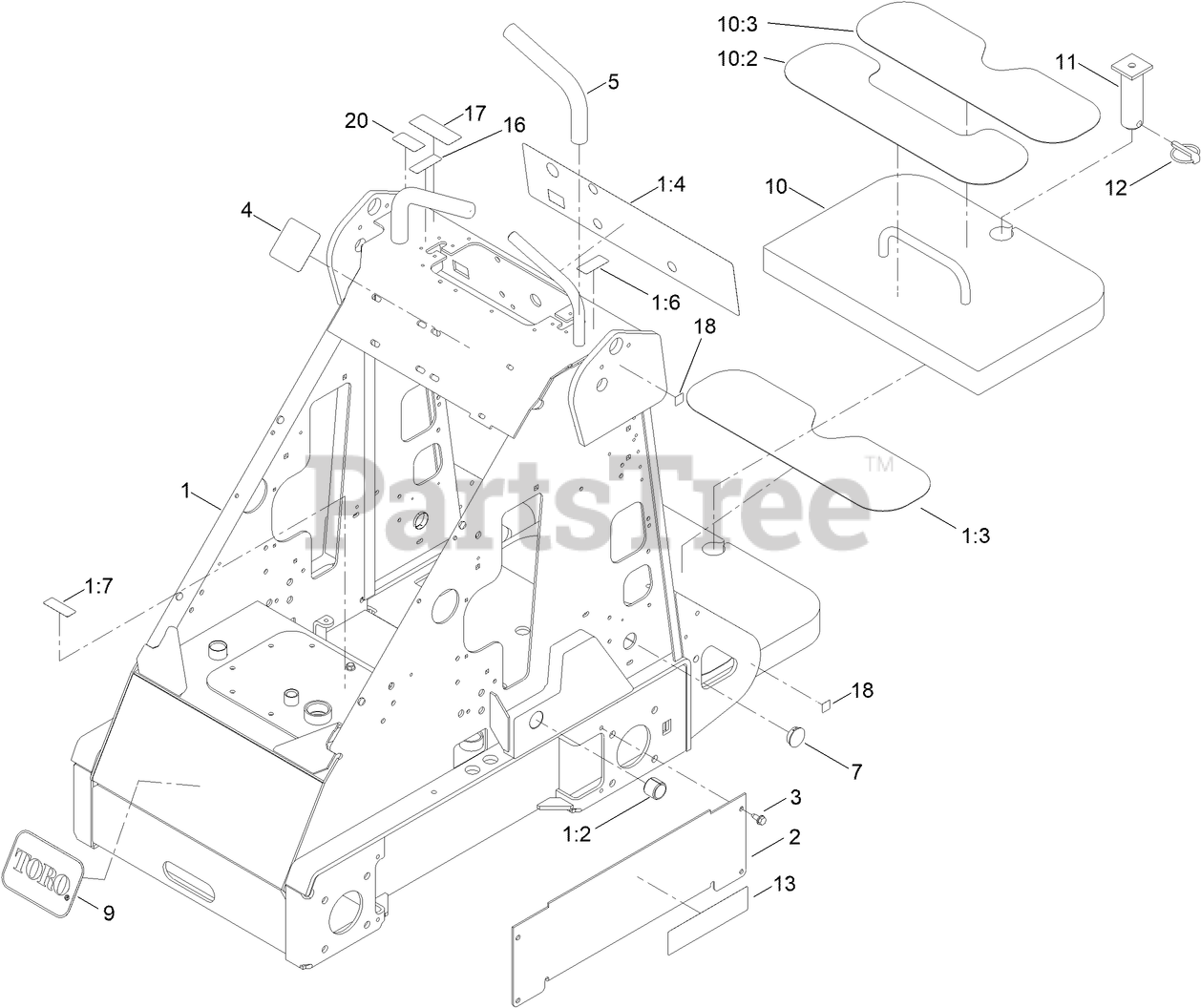

Frame Assembly Parts Diagram

  • Title

1

Toro 108-9710

FRAME ASM

$12766.99

$

Usually ships in 3-6 days

0

1:2

Toro 98-4871

BUSHING-TENSION

$26.99

$

In Stock, only 2 left!

0

1:3

Toro 98-9947

TREAD-FOOT

$35.99

$

Usually ships in 3-6 days

0

1:4

Toro 144-2025

DECAL-CONTROL PANEL

$36.99

$

Usually ships in 3-6 days

0

1:6

Toro 98-8219

DECAL-THROTTLE

$17.99

$

Usually ships in 3-6 days

0

1:7

Toro 93-6686

DECAL-OIL, HYD

$9.49

$

Usually ships in 3-6 days

0

2

Toro 106-8178-01

COVER-HOSE

$111.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 108-9716

DECAL-SELECTOR, SPEED

$44.99

$

Usually ships in 3-6 days

0

5

Toro 98-4845

GRIP-CUSHION

$15.99

$

Usually ships in 3-6 days

0

7

Toro 94-1402

PLUG-HOLE

$2.49

$

Usually ships in 3-6 days

0

9

Toro 62-5550

DECAL

$11.99

$

In Stock, only 2 left!

0

10

Toro 112-4947

COUNTERWEIGHT ASM

$1888.99

$

Usually ships in 3-6 days

0

10:2

Toro 98-9947

TREAD-FOOT

$35.99

$

Usually ships in 3-6 days

0

10:3

Toro 112-4948

TREAD

$35.99

$

Usually ships in 3-6 days

0

11

Toro 99-8638

PIN

$311.99

$

Usually ships in 3-6 days

0

12

Toro 99-9978

PIN-LYNCH

$11.99

$

Usually ships in 3-6 days

0

13

Toro 105-8429

DECAL

$19.99

$

Usually ships in 3-6 days

0

16

Toro 94-2551

DECAL-CHOKE

$39.99

$

Usually ships in 3-6 days

0

17

Toro 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0

18

Toro 93-9084

DECAL-POINT, LIFT

$8.99

$

Usually ships in 3-6 days

0

20

Toro 98-4387

DECAL-PROTECTION, EAR

$7.99

$

Usually ships in 3-6 days

0
