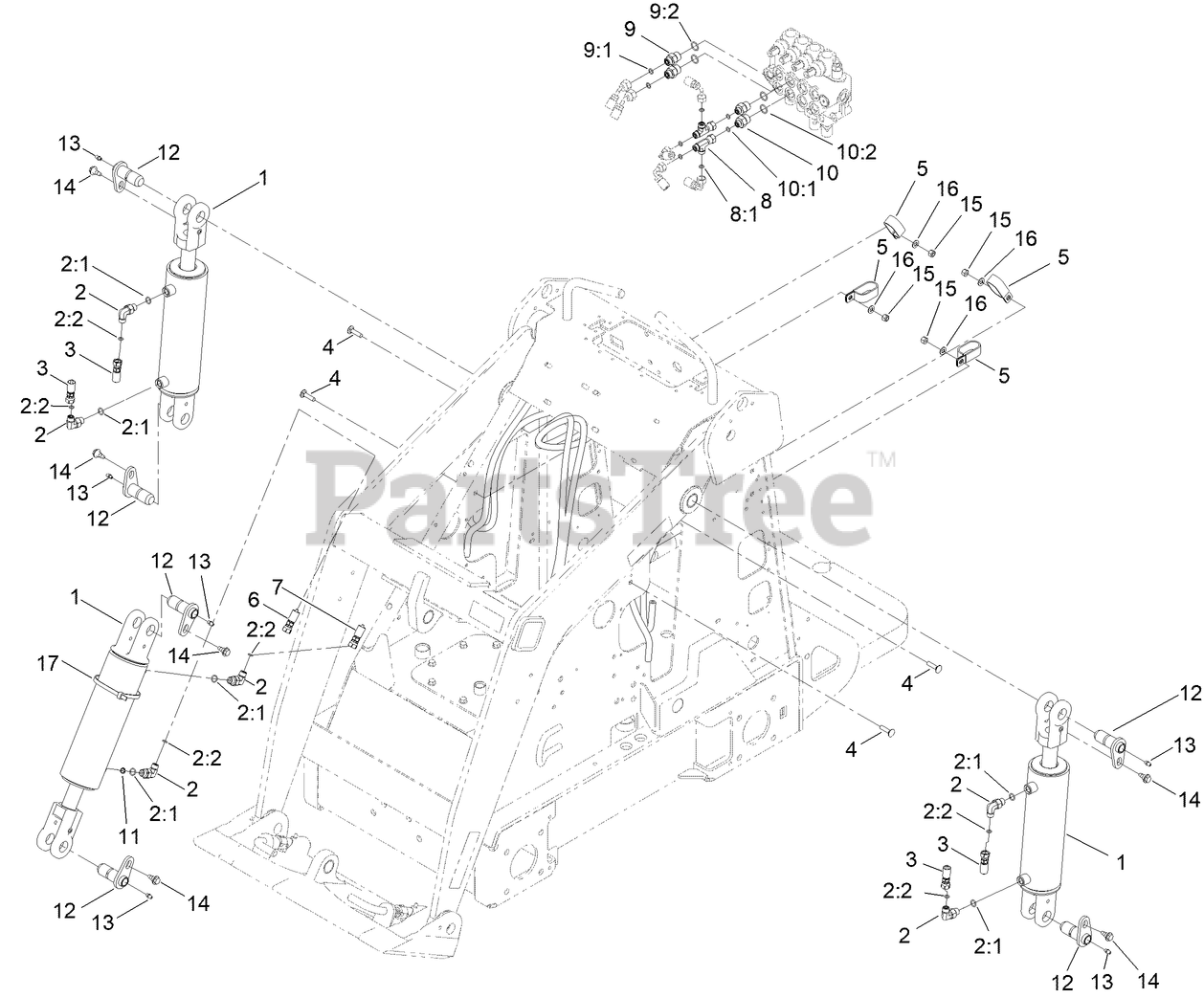

22318 (323) - Toro Dingo Compact Utility Loader (SN: 409342969 - 409809999) Hydraulic Cylinder Assembly Parts Diagram

Dingo Compact Utility Loader

Hydraulic Cylinder Assembly Parts Diagram

  • Title

1

Toro 139-7706

CYLINDER-HYDRAULIC

$917.99

$

Usually ships in 3-6 days

0

2

Toro 340-82

FITTING-ELBOW, 90 DEG

$25.99

$

In Stock, only 2 left!

0

2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

2:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

3

Toro 98-4725

HOSE-HYD

$198.99

$

Usually ships in 3-6 days

0

4

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

5

Toro 2412-137

CLAMP-R, DOUBLE

$6.99

$

Usually ships in 3-6 days

0

6

Toro 98-4726

HOSE-HYD

$291.99

$

Usually ships in 3-6 days

0

7

Toro 98-4727

HOSE-HYD

$242.99

$

Usually ships in 3-6 days

0

8

Toro 340-151

FITTING-HYD

$104.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

9

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

9:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

10

Toro 340-133

FITTING-STR

$47.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

10:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

11

Toro 108-4714

ORIFICE-PORT INSERT, ONE WAY

$36.99

$

Usually ships in 3-6 days

0

12

Toro 112-2609

PIN-PIVOT

$121.99

$

In Stock, only 2 left!

0

13

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

14

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
