22318 (323) - Toro Dingo Compact Utility Loader (SN: 418000000 - 999999999) Wheel and Tire Assembly Parts Diagram

Dingo Compact Utility Loader

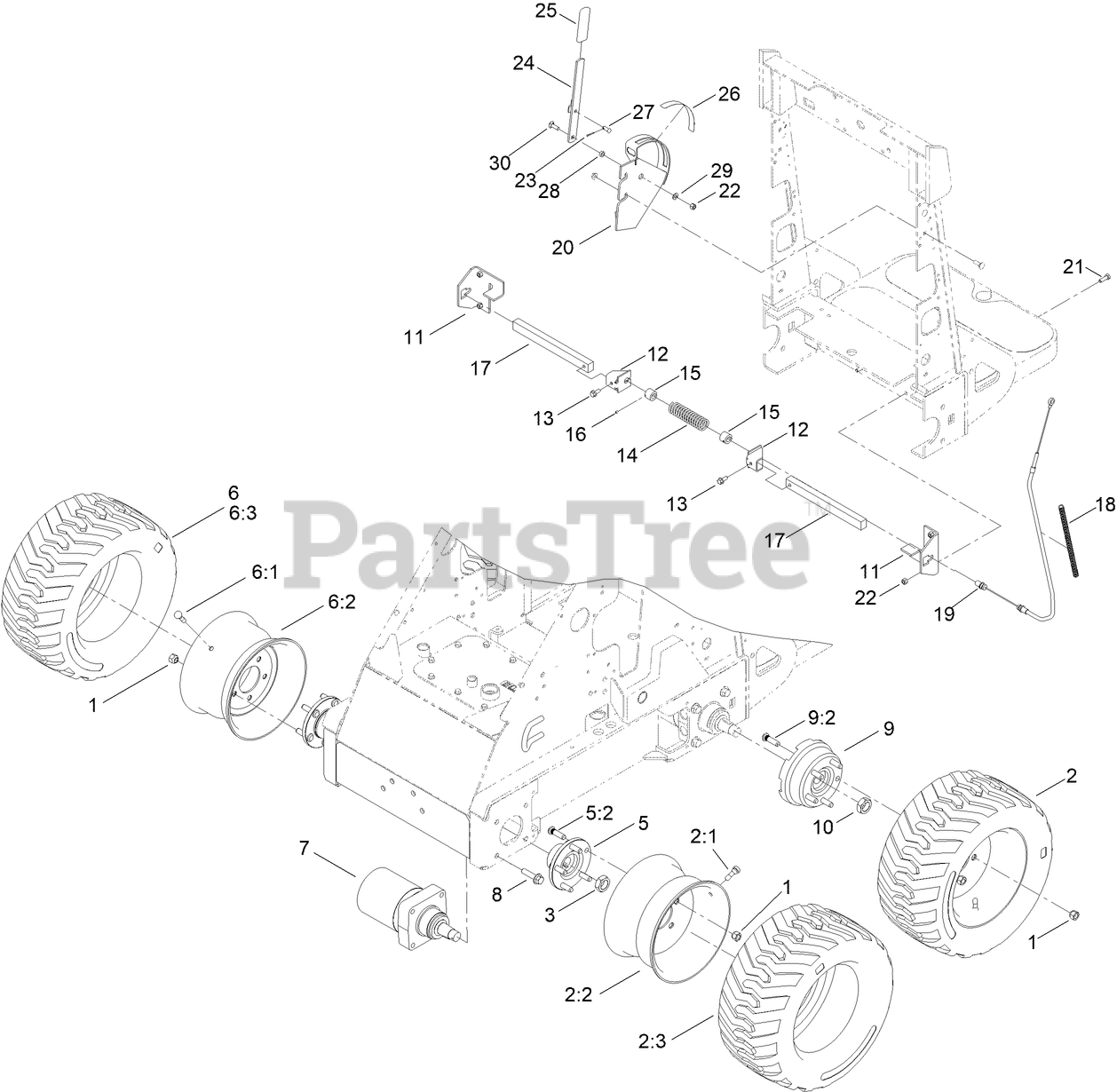

Wheel and Tire Assembly Parts Diagram

  • Title

1

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

2

Toro 144-2575

TIRE AND WHEEL ASM, LH

$427.99

$

Usually ships in 3-6 days

0

2:1

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

2:2

Toro 144-2572

WHEEL-10X6.00, 5 BOLT

$215.99

$

Usually ships in 3-6 days

0

2:3

Toro 144-2573

TIRE-18X8.50-10

$295.99

$

Usually ships in 3-6 days

0

3

Toro 106-8159

NUT-LOCK

$32.99

$

Usually ships in 3-6 days

0

5

Toro 99-3064

HUB ASM

$260.99

$

In Stock, only 1 left!

0

5:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

6

Toro 144-2574

TIRE AND WHEEL ASM, RH

$427.99

$

Usually ships in 3-6 days

0

6:1

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

6:2

Toro 144-2572

WHEEL-10X6.00, 5 BOLT

$215.99

$

Usually ships in 3-6 days

0

6:3

Toro 144-2573

TIRE-18X8.50-10

$295.99

$

Usually ships in 3-6 days

0

7

Toro 99-3052

HYD MOTOR ASM

$2906.99

$

Usually ships in 3-6 days

0

8

Toro 3234-27

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

9

Toro 105-4056

WHEEL HUB ASM

$292.99

$

Usually ships in 3-6 days

0

9:2

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

10

Toro 106-8159

NUT-LOCK

$32.99

$

Usually ships in 3-6 days

0

11

Toro 100-1676-03

BRACKET-BRAKE

$65.99

$

Usually ships in 3-6 days

0

12

Toro 100-1677-03

BRACKET-CABLE
(Superseded to 161-9463-0P)

$63.99

$

Usually ships in 3-6 days

0

13

Toro 100-1668

SCREW-HHF

$7.49

$

In Stock, Qty 7

0

14

Toro 100-1678-03

SPRING

$38.99

$

Usually ships in 3-6 days

0

15

Toro 100-6274

TUBE-GUIDE

$23.99

$

Usually ships in 3-6 days

0

16

Toro 3245-20

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

17

Toro 100-1674-03

BAR-BRAKE

$146.99

$

Usually ships in 3-6 days

0

18

Toro 100-4697

TUBE-CONVOLUTED

$9.49

$

Usually ships in 3-6 days

0

19

Toro 100-1679

CABLE

$206.99

$

Usually ships in 3-6 days

0

20

Toro 105-8414-03

PLATE-BRAKE

$281.99

$

Usually ships in 3-6 days

0

21

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

24

Toro 100-1684-03

LEVER-BRAKE

$115.99

$

Usually ships in 3-6 days

0

25

Toro 62-9130

GRIP-HANDLE

$9.49

$

In Stock, only 2 left!

0

26

Toro 100-1692

DECAL-BRAKE

$155.99

$

Usually ships in 3-6 days

0

27

Toro 283-62

PIN-CLEVIS

$2.49

$

In Stock, Qty 9

0

28

Toro 100-1683

HUB-LEVER

$53.99

$

Usually ships in 3-6 days

0

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0
