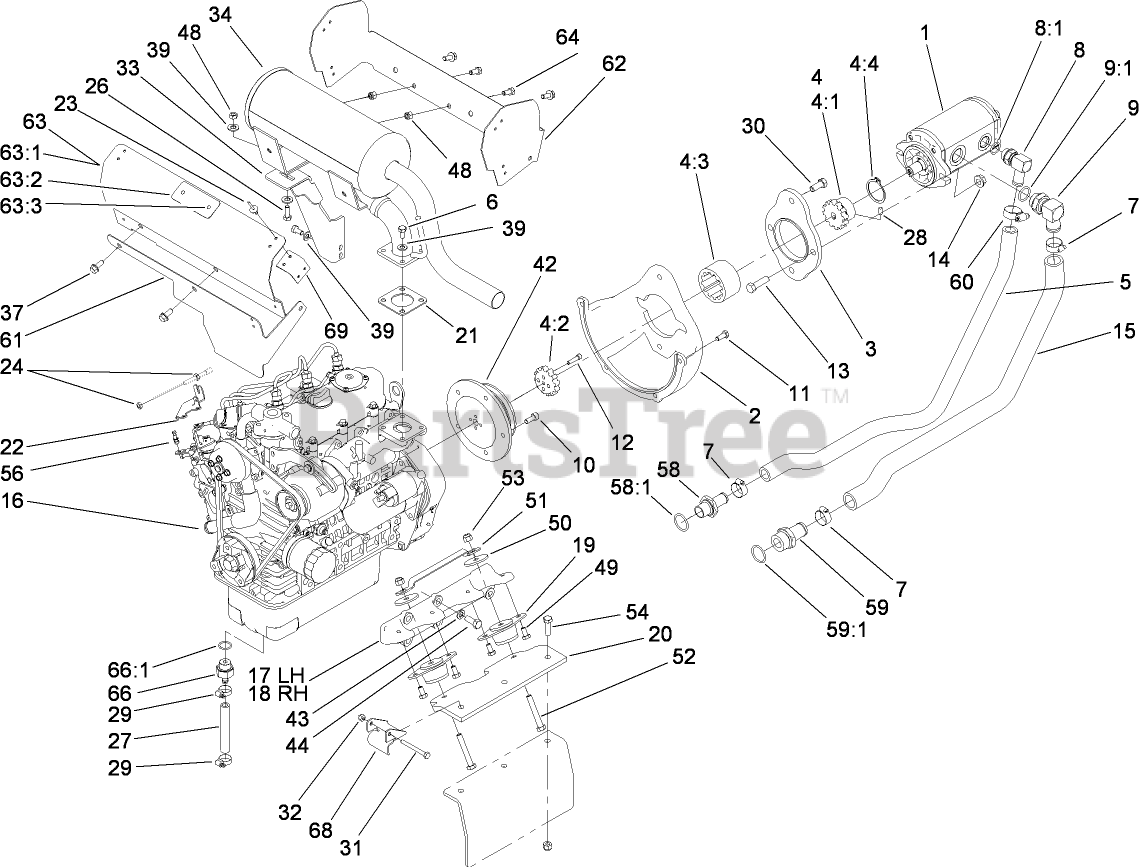

22319 (TX 525) - Toro Dingo Compact Utility Loader (SN: 280000301 - 280999999) (2008) Engine and Pump Assembly Parts Diagram

Dingo Compact Utility Loader

Engine and Pump Assembly Parts Diagram

  • Title

1

Toro 106-9589

PUMP-HYD

$2285.99

$

Usually ships in 3-6 days

0

2

Toro 108-6235-03

PUMP-MOUNT

$432.99

$

Usually ships in 3-6 days

0

3

Toro 108-6211-03

PLATE-MOUNT, PUMP

$183.99

$

Usually ships in 3-6 days

0

4

Toro 108-6314

COUPLING ASM

$722.99

$

Usually ships in 3-6 days

0

4:1

Toro 106-9562

HUB-COUPLING

$

$

Currently unavailable

4:2

Toro 106-9587

SLEEVE-HUB

$

$

Currently unavailable

4:3

Toro 106-9561

SLEEVE-COUPLING

$

$

Currently unavailable

4:4

Toro 108-6383

RING-SNAP, COUPLING

$3.49

$

Usually ships in 3-6 days

0

5

Toro 108-6315

HOSE-FORMED, SUCTION

$115.99

$

Usually ships in 3-6 days

0

6

Toro 99-5132

BOLT
(Superseded to 139-9940)

$2.49

$

In Stock, Qty 7

0

7

Toro 2412-34

CLAMP-HOSE

$2.99

$

In Stock, only 2 left!

0

8

Toro 87-8170

FITTING-90

$52.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

9

Toro 100-4202

FITTING-90

$113.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

10

Toro 108-6343

SCREW-CAP, HSH

$5.99

$

Usually ships in 3-6 days

0

11

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

12

Toro 3274-26

SCREW-HSH

$2.49

$

Usually ships in 3-6 days

0

13

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 32128-42

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

15

Toro 108-6316

HOSE-FORMED, SUCTION

$110.99

$

Usually ships in 3-6 days

0

16

Toro 112-2599

See Supercession: 127-9653
(Superseded to 138-6910)

$12510.99

$

Usually ships in 3-6 days

0

17

Toro 108-6269-03

MOUNT-ENGINE, LH

$345.99

$

Usually ships in 3-6 days

0

18

Toro 108-6271-03

MOUNT-ENGINE, RH

$345.99

$

Usually ships in 3-6 days

0

19

Toro 107-3640

See Supercession: 120-6274
(Superseded to 120-6274)

$48.99

$

In Stock, only 2 left!

0

20

Toro 107-3617-03

PLATE-MOUNT, ENGINE

$144.99

$

Usually ships in 3-6 days

0

21

Toro 99-8343

GASKET-MUFFLER

$17.99

$

In Stock, only 2 left!

0

22

Toro 108-5922

BRACKET-SUPPORT, THROTTLE

$22.99

$

Usually ships in 3-6 days

0

23

Toro 146489

RIVET

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3220-1

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

26

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

27

Toro 114-8599

HOSE-DRAIN, ENGINE OIL

$20.99

$

Usually ships in 3-6 days

0

28

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 13

0

29

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 5

0

30

Toro 324-4

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

31

Toro 321-18

SCREW-HH

$2.49

$

In Stock, Qty 17

0

32

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

33

Toro 112-2403-03

SUPPORT-MUFFLER

$110.99

$

Usually ships in 3-6 days

0

34

Toro 106-9584

MUFFLER ASM

$751.99

$

Usually ships in 3-6 days

0

37

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

39

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

42

Toro 106-9588-03

See Supercession: 112-2568-03
(Superseded to 112-2568-03)

$357.99

$

Usually ships in 3-6 days

0

43

Toro 42-9600

See Supercession: 48-9590
(Superseded to 48-9590)

$0.99

$

Usually ships in 3-6 days

0

44

Toro 43-0090

SCREW-HH

$10.99

$

In Stock, only 2 left!

0

48

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

49

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

50

Toro 63-7400

WASHER-REBOUND

$3.49

$

In Stock, Qty 20+

0

51

Toro 108-6340-03

See Supercession: 108-6340
(Superseded to 108-6340)

$55.99

$

Usually ships in 3-6 days

0

52

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

53

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

54

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

56

Toro 108-5928

SWIVEL-STOP, CABLE

$17.99

$

Usually ships in 3-6 days

0

58

Toro 99-6932

FITTING-STR

$189.99

$

Usually ships in 3-6 days

0

58:1

Toro 237-117

O-RING

$8.99

$

Usually ships in 3-6 days

0

59

Toro 354-78

FITTING-STR

$65.99

$

Usually ships in 3-6 days

0

59:1

Toro 237-146

O-RING

$5.49

$

In Stock, Qty 7

0

60

Toro 2412-129

CLAMP-HOSE

$5.99

$

In Stock, only 3 left!

0

61

Toro 108-6356

PLATE-BAFFLE, LOWER

$106.99

$

Usually ships in 3-6 days

0

62

Toro 108-6354

PLATE-BAFFLE

$236.99

$

Usually ships in 3-6 days

0

63

Toro 112-2564

HEAT SHIELD BAFFLE ASM

$261.99

$

Usually ships in 3-6 days

0

63:1

Toro 108-6355

PLATE-BAFFLE, MUFFLER

$162.99

$

Usually ships in 3-6 days

0

63:2

Toro 104-9983

See Supercession: 115-4882
(Superseded to 115-4882)

$84.99

$

Usually ships in 3-6 days

0

63:3

Toro 3269-31

RIVET-POP

$3.99

$

In Stock, Qty 12

0

64

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

66

Toro 114-8587

FITTING-HOSE

$82.99

$

Usually ships in 3-6 days

0

66:1

Toro 98-9399

GASKET

$3.49

$

Usually ships in 3-6 days

0

68

Toro 112-2533-03

GUIDE-CABLE

$26.99

$

Usually ships in 3-6 days

0

69

Toro 112-2449

BRACKET-SHIELD

$18.99

$

Usually ships in 3-6 days

0
