22319 (TX 525) - Toro Dingo Compact Utility Loader (SN: 280000301 - 280999999) (2008) Piston and Crankshaft Assembly Parts Diagram

Dingo Compact Utility Loader

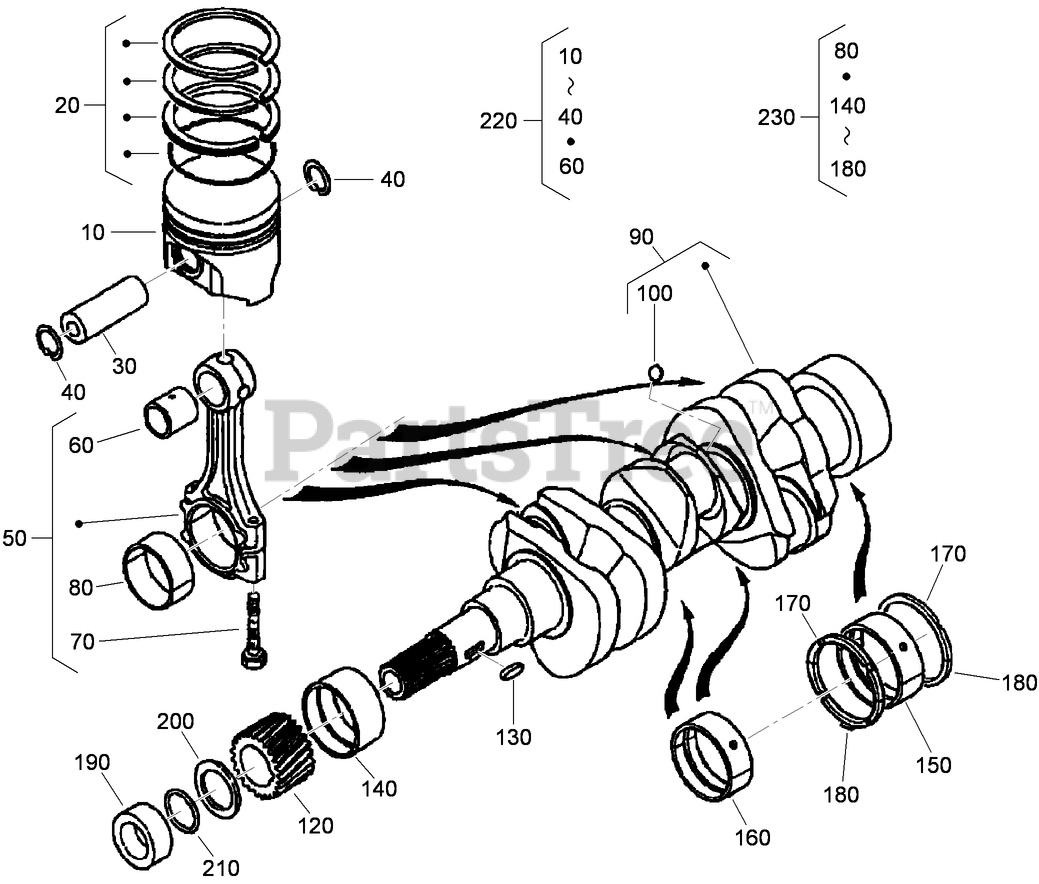

Piston and Crankshaft Assembly Parts Diagram

  • Title

10

Toro 117-0306

See Supercession: 130-8100
(Superseded to 130-8100)

$548.99

$

Usually ships in 3-6 days

0

10

Toro 117-0307

See Supercession: 130-1536
(Superseded to 130-1539)

$642.99

$

Usually ships in 3-6 days

0

20

Toro 112-2501

PISTON RING ASM (STD)

$407.99

$

Usually ships in 3-6 days

0

20

Toro 112-2502

PISTON RING ASM (+.25MM)

$

$

Not available

30

Toro 110-3734

PIN-PISTON

$36.99

$

Usually ships in 3-6 days

0

40

Toro 100-1835

CIRCLIP-INTERNAL

$3.49

$

Usually ships in 3-6 days

0

50

Toro 110-3735

See Supercession: 125-9070
(Superseded to 125-9070)

$704.99

$

Usually ships in 3-6 days

0

60

Toro 110-3736

BUSHING-PIN, PISTON

$32.99

$

Usually ships in 3-6 days

0

70

Toro 100-1999

BOLT-ROD, CONNECTING

$21.99

$

Usually ships in 3-6 days

0

80

Toro 100-2000

METAL-CRANKPIN (STD)

$61.99

$

Usually ships in 3-6 days

0

80

Toro 100-1942

See Supercession: 121-3849
(Superseded to 121-3849)

$61.99

$

Usually ships in 3-6 days

0

80

Toro 100-1943

See Supercession: 121-2420
(Superseded to 121-2420)

$57.99

$

Usually ships in 3-6 days

0

90

Toro 117-0308

CRANKSHAFT

$3408.99

$

Usually ships in 3-6 days

0

100

Toro 100-1791

BALL

$2.49

$

Usually ships in 3-6 days

0

120

Toro 100-1891

GEAR-CRANKSHAFT

$135.99

$

Usually ships in 3-6 days

0

130

Toro 100-1752

KEY-FEATHER

$4.49

$

Usually ships in 3-6 days

0

140

Toro 110-3738

METAL-CRANKSHAFT (STD)
(Superseded to 121-2424)

$92.99

$

Usually ships in 3-6 days

0

140

Toro 110-3739

METAL-CRANKSHAFT (-.0.20MM)
(Superseded to 121-2424)

$92.99

$

Usually ships in 3-6 days

0

140

Toro 110-3740

METAL-CRANKSHAFT (-0.40MM)

$48.99

$

Usually ships in 3-6 days

0

150

Toro 110-3744

See Supercession: 125-9066
(Superseded to 125-9066)

$92.99

$

Usually ships in 3-6 days

0

150

Toro 110-3745

CRANKSHAFT METAL ASM (-0.20MM)

$86.99

$

Usually ships in 3-6 days

0

150

Toro 110-3746

CRANKSHAFT METAL ASM (-0.40MM)

$86.99

$

Usually ships in 3-6 days

0

160

Toro 110-3741

CRANKSHAFT METAL ASM (STD)

$86.99

$

Usually ships in 3-6 days

0

160

Toro 110-3742

CRANKSHAFT METAL ASM (-0.20MM)
(Superseded to 125-9083)

$68.99

$

Usually ships in 3-6 days

0

160

Toro 110-3743

CRANKSHAFT METAL ASM (-0.40MM)

$86.99

$

Usually ships in 3-6 days

0

170

Toro 100-1836

METAL-SIDE (STD)

$17.99

$

Usually ships in 3-6 days

0

170

Toro 100-1838

METAL-SIDE (+0.20MM)

$

$

Not available

170

Toro 100-1839

METAL-SIDE (+0.40MM)

$8.99

$

Usually ships in 3-6 days

0

180

Toro 117-0309

METAL-SIDE (STD)

$32.99

$

Usually ships in 3-6 days

0

180

Toro 117-0310

METAL-SIDE (+0.20MM)

$

$

Not available

180

Toro 117-0311

METAL-SIDE (+0.40MM)

$

$

Not available

190

Toro 100-1890

COLLAR-CRANKSHAFT

$82.99

$

Usually ships in 3-6 days

0

200

Toro 100-1974

SLINGER-OIL

$3.99

$

Usually ships in 3-6 days

0

210

Toro 100-2209

O-RING

$13.99

$

Usually ships in 3-6 days

0

220

Toro 112-2497

See Supercession: 130-8100
(Superseded to 130-8100)

$548.99

$

Usually ships in 3-6 days

0

220

Toro 112-2498

See Supercession: 130-1539
(Superseded to 130-1539)

$642.99

$

Usually ships in 3-6 days

0

230

Toro 110-3749

ENGINE METAL KIT

$559.99

$

Usually ships in 3-6 days

0

230

Toro 110-3750

ENGINE METAL KIT

$558.99

$

Usually ships in 3-6 days

0

230

Toro 110-3751

ENGINE METAL KIT

$568.99

$

Usually ships in 3-6 days

0
