22321 G (TX 427) - Toro Dingo Compact Utility Loader (SN: 310000001 - 310999999) (2010) Main Frame and Fuel Tank Assembly Parts Diagram

Dingo Compact Utility Loader

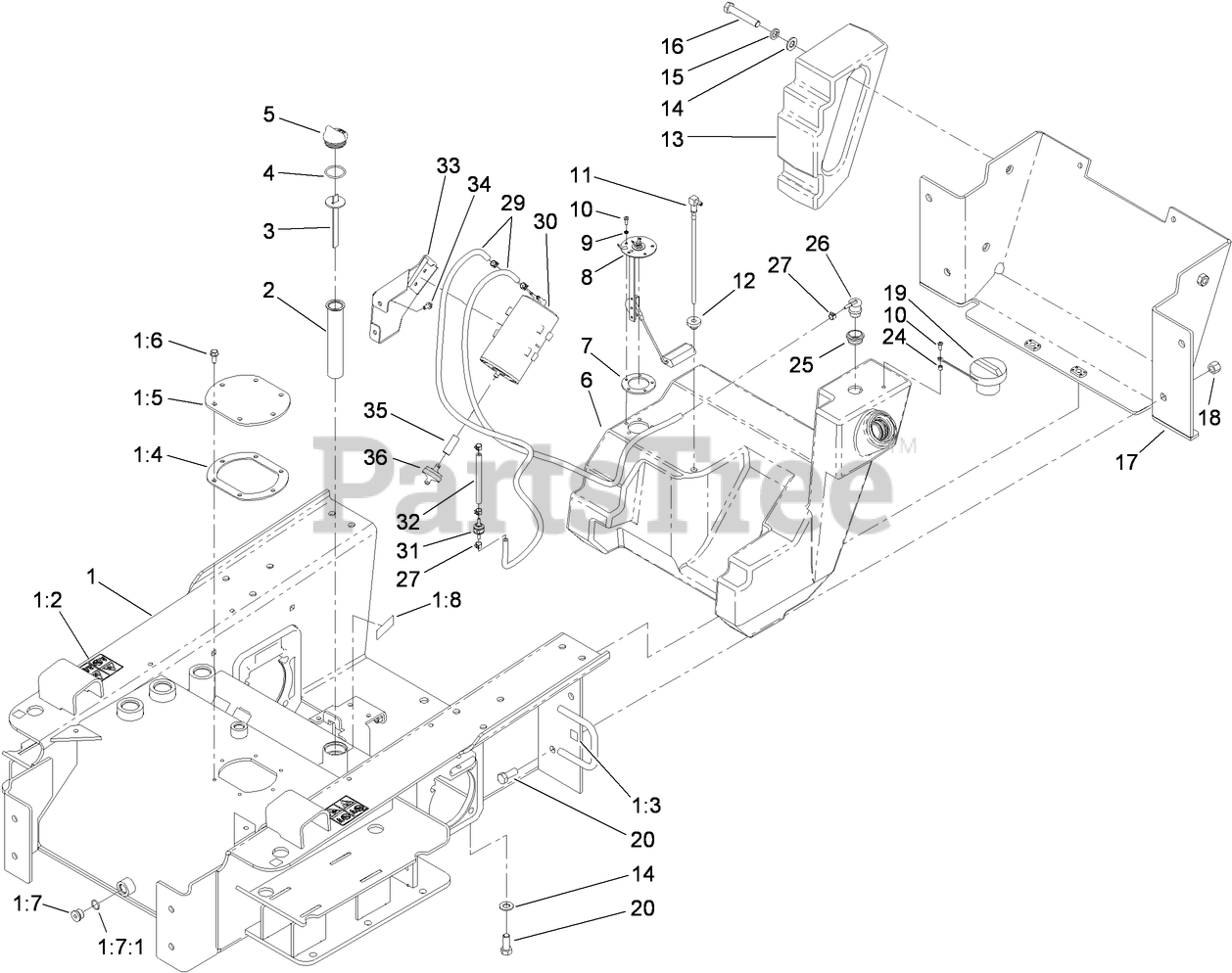

Main Frame and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 114-1354

CHASSIS ASM

$7257.99

$

Usually ships in 3-6 days

0

1:2

Toro 100-4650

DECAL-WARNING

$26.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-9084

DECAL-POINT, LIFT

$8.99

$

Usually ships in 3-6 days

0

1:4

Toro 107-3557

GASKET-COVER, ACCESS

$57.99

$

Usually ships in 3-6 days

0

1:5

Toro 108-6297-01

COVER-TANK

$38.99

$

Usually ships in 3-6 days

0

1:6

Toro 98-9940

SCREW-HHF

$2.49

$

In Stock, Qty 10

0

1:7

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

1:7:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

1:8

Toro 93-6686

DECAL-OIL, HYD

$9.49

$

Usually ships in 3-6 days

0

2

Toro 61-2790

FILTER-SCREEN

$77.99

$

Usually ships in 3-6 days

0

3

Toro 100-2097

DIPSTICK-OIL

$62.99

$

Usually ships in 3-6 days

0

4

Toro 237-123

O-RING
(Superseded to 237-101)

$3.99

$

Usually ships in 3-6 days

0

5

Toro 93-7498

PLUG-PLASTIC

$30.99

$

In Stock, only 4 left!

0

6

Toro 117-9955

TANK-FUEL

$317.99

$

Usually ships in 3-6 days

0

7

Toro 113372

GASKET-SENDER, FUEL

$4.49

$

In Stock, only 1 left!

0

8

Toro 100-1298

SENDER-FUEL

$197.99

$

Usually ships in 3-6 days

0

9

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

10

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

11

Toro 98-0185

PIPE-STAND

$45.99

$

In Stock, only 2 left!

0

12

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

13

Toro 99-6165-01

COUNTERWEIGHT-REAR

$508.99

$

Usually ships in 3-6 days

0

14

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

16

Toro 325-12

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

17

Toro 115-4565-01

COVER-REAR

$932.99

$

Usually ships in 3-6 days

0

18

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 117-1722

CAP-FUEL

$30.99

$

Usually ships in 3-6 days

0

20

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

24

Toro 117-9965

SPACER

$9.49

$

In Stock, only 4 left!

0

25

Toro 114-0284

GROMMET

$3.49

$

In Stock, Qty 20+

0

26

Toro 114-0285

VALVE-ROLLOVER

$20.99

$

In Stock, Qty 16

0

27

Toro 2412-146

CLAMP-HOSE

$1.99

$

In Stock, Qty 6

0

29

Toro 108-9698

HOSE-FUEL

$46.99

$

Usually ships in 3-6 days

0

30

Toro 115-2251

See Supercession: 127-8685
(Superseded to 127-8685)

$74.99

$

In Stock, only 2 left!

0

31

Toro 115-7868

See Supercession: 133-8499
(Superseded to 133-8499)

$16.99

$

In Stock, only 3 left!

0

32

Toro 115-4736

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

33

Toro 117-4043

See Supercession: 117-4043-03
(Superseded to 117-4043-03)

$109.99

$

Usually ships in 3-6 days

0

34

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

35

Toro 106-5317

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

36

Toro 115-7854

FILTER-FUEL, INLINE

$7.99

$

In Stock, only 3 left!

0
