22321 G (TX 427) - Toro Dingo Compact Utility Loader (SN: 413000000 - 415299999) Control Panel Assembly Parts Diagram

Dingo Compact Utility Loader

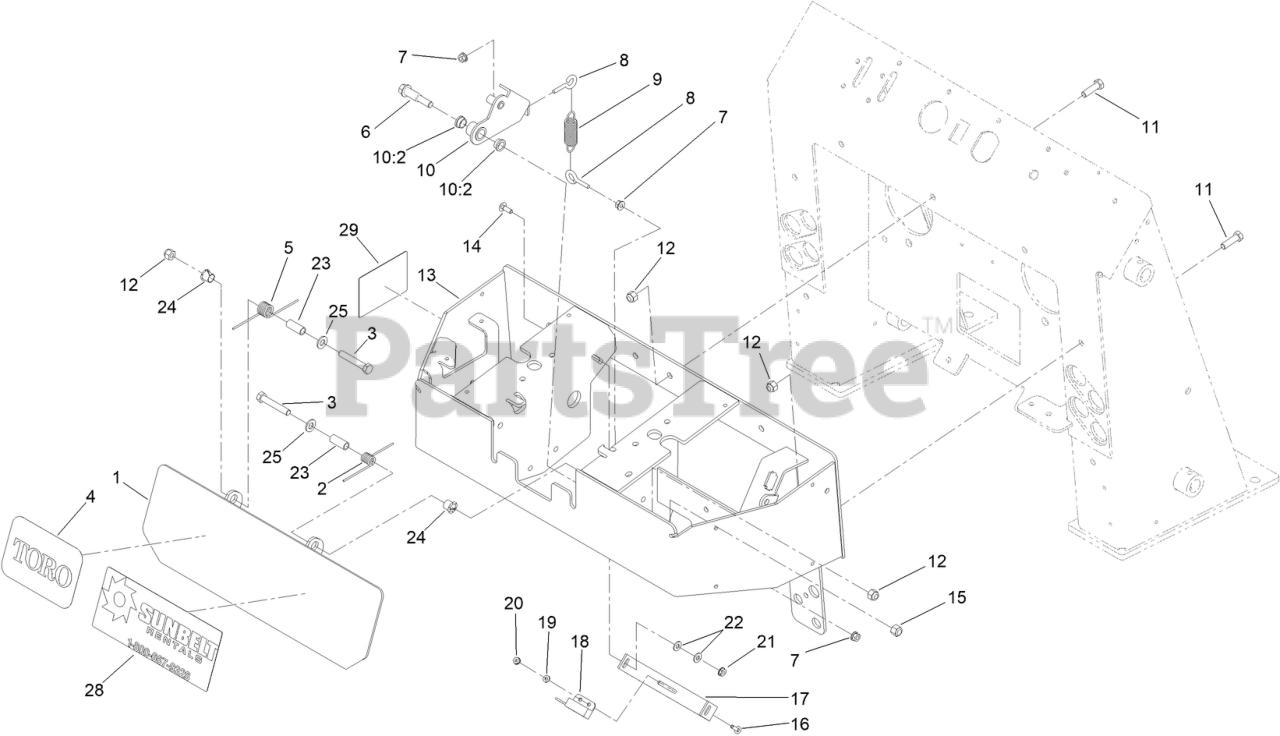

Control Panel Assembly Parts Diagram

  • Title

1

Toro 112-2786-03

PLATE-REVERSE

$

$

Not available

2

Toro 98-8425

SPRING-TORSION, LH

$29.99

$

Usually ships in 3-6 days

0

3

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

4

Toro 105-1217

DECAL

$44.99

$

In Stock, Qty 6

0

5

Toro 98-8424

SPRING-TORSION, RH

$29.99

$

Usually ships in 3-6 days

0

6

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

7

Toro 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

0

8

Toro 71-2870

BOLT-EYE

$20.99

$

In Stock, only 2 left!

0

9

Toro 108-4724

SPRING-EXTENSION

$13.99

$

Usually ships in 3-6 days

0

10

Toro 100-4203

NEUTRAL CENTERING LEVER ASM

$209.99

$

Usually ships in 3-6 days

0

10:2

Toro 256-156

BUSHING-FLANGE

$14.99

$

In Stock, only 2 left!

0

11

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 110-0228-01

PANEL-CONTROL

$1166.99

$

Usually ships in 3-6 days

0

14

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

15

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

16

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

17

Toro 100-1263

PLATE-SWITCH

$38.99

$

Usually ships in 3-6 days

0

18

Toro 100-1270

SWITCH-PROXIMITY

$128.99

$

In Stock, only 1 left!

0

19

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

20

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

21

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 114-1337

SPACER-SPRING

$8.49

$

Usually ships in 3-6 days

0

24

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, only 3 left!

0

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 132-8763

DECAL-S8HSW4X10

$19.99

$

Usually ships in 3-6 days

0

29

Toro 132-8761

DECAL-SRVSW3X4

$

$

Currently unavailable
