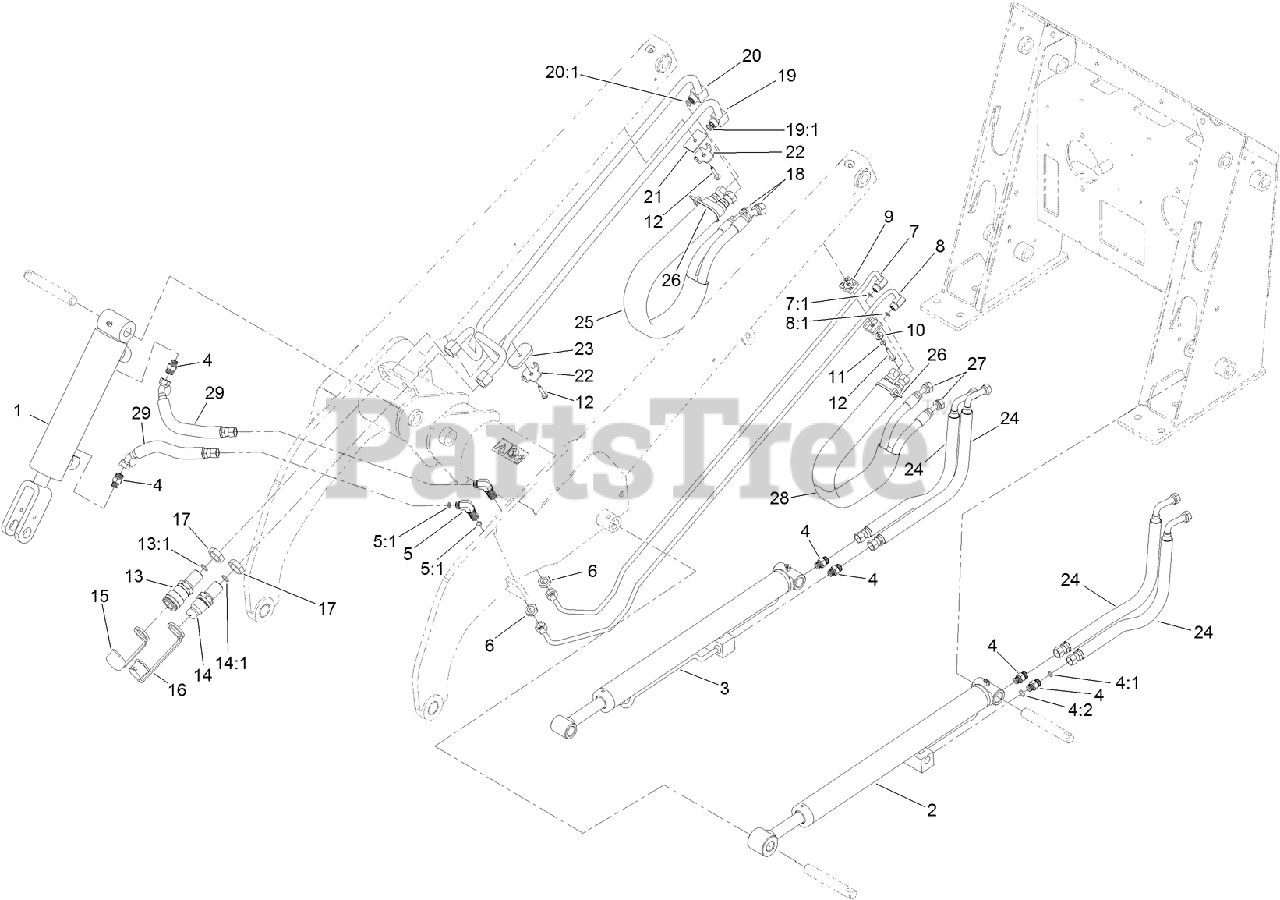

22321 G (TX 427) - Toro Dingo Compact Utility Loader (SN: 413000000 - 415299999) Loader Arm Hydraulic Assembly Parts Diagram

Dingo Compact Utility Loader

Loader Arm Hydraulic Assembly Parts Diagram

  • Title

1

Toro 139-0778

HYD CYL ASM

$1323.99

$

Usually ships in 3-6 days

0

2

Toro 139-0776

LH HYD CYL ASM

$1133.99

$

Usually ships in 3-6 days

0

3

Toro 139-0777

RH HYD CYL ASM

$1133.99

$

Usually ships in 3-6 days

0

4

Toro 340-2

FITTING-STRAIGHT

$13.99

$

In Stock, only 2 left!

0

4:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

4:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

5

Toro 340-154

UNION-BULKHEAD

$71.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

6

Toro 340-70

NUT-LOCK

$2.99

$

Usually ships in 3-6 days

0

7

Toro 106-9364

HYD TUBE ASM

$238.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

8

Toro 106-9365

HYD TUBE ASM

$212.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

9

Toro 56-7973

CLAMP-TUBE

$20.99

$

Usually ships in 3-6 days

0

10

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

11

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 94-2691

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

13

Toro 105-8394

BULKHEAD COUPLER ASM

$338.99

$

In Stock, only 1 left!

0

13:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

14

Toro 105-8395

BULKHEAD NIPPLE ASM

$270.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

14:2

Toro 100-6120

SEAL KIT

Note: Not illustrated

$117.99

$

In Stock, only 2 left!

0

15

Toro 100-8816

CAP-DUST, COUPLER

$17.99

$

In Stock, only 2 left!

0

16

Toro 100-8815

CAP-DUST, NIPPLE

$15.99

$

In Stock, only 2 left!

0

17

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

In Stock, only 2 left!

0

18

Toro 98-0242

HOSE-HYD

$166.99

$

Usually ships in 3-6 days

0

19

Toro 112-2563

HYD TUBE ASM

$217.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

20

Toro 108-6319

HYD TUBE ASM

$239.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

21

Toro 106-9366

SPACER-HARDLINE

$6.49

$

Usually ships in 3-6 days

0

22

Toro 98-0237

PLATE-CLAMP, TUBE

$156.99

$

Usually ships in 3-6 days

0

23

Toro 112-2565

PLATE-HARDLINE

$22.99

$

Usually ships in 3-6 days

0

24

Toro 98-0216

HOSE-HYD

$319.99

$

In Stock, only 1 left!

0

25

Toro 100-6128

SLEEVE-PROTECTIVE

$45.99

$

Usually ships in 3-6 days

0

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Toro 98-0213

HOSE-HYD

$168.99

$

Usually ships in 3-6 days

0

28

Toro 100-6127

SLEEVE-PROTECTIVE

$45.99

$

Usually ships in 3-6 days

0

29

Toro 98-0207

HOSE-HYD

$188.99

$

Usually ships in 3-6 days

0
