22321 (TX 427) - Toro Dingo Compact Utility Loader (SN: 402000000 - 404684849) Hood and Fan Assembly Parts Diagram

Dingo Compact Utility Loader

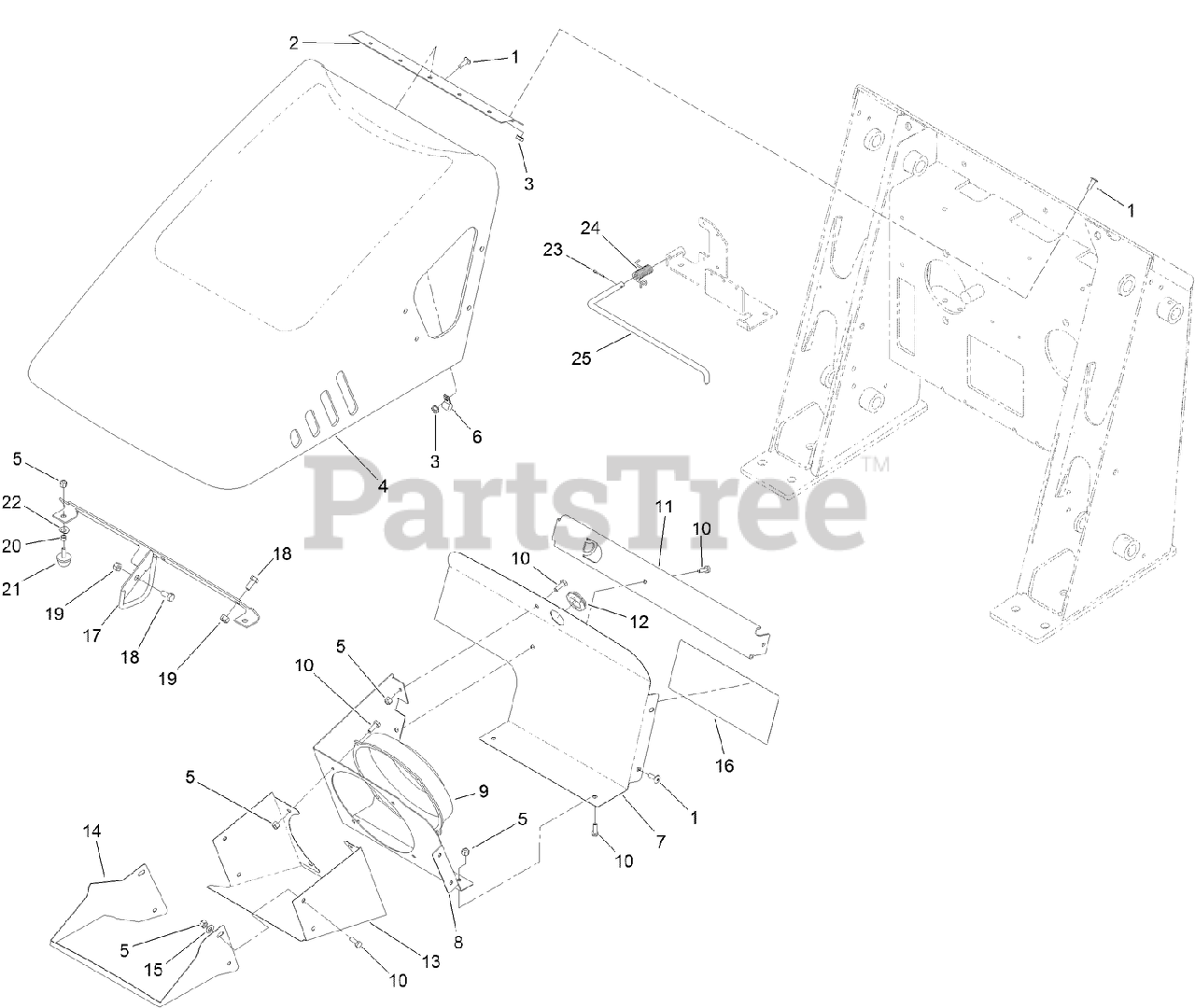

Hood and Fan Assembly Parts Diagram

  • Title

1

Toro 9114604

SCREW-HEAD, TRUSS

$1.49

$

Usually ships in 3-6 days

0

2

Toro 100-1284

HINGE-HOOD

$90.99

$

In Stock, only 2 left!

0

3

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

4

Toro 114-1363

HOOD

$780.99

$

Usually ships in 3-6 days

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

7

Toro 114-8715-03

BRACKET-FAN, BACK

$96.99

$

Usually ships in 3-6 days

0

8

Toro 114-8714-03

BRACKET-FAN, BACK

$105.99

$

Usually ships in 3-6 days

0

9

Toro 104-2809

FAN

$573.99

$

Usually ships in 3-6 days

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 115-4849-03

BRACKET-SUPPORT, HOOD

$78.99

$

Usually ships in 3-6 days

0

12

Toro 240-5

GROMMET

$17.99

$

Usually ships in 3-6 days

0

13

Toro 114-8711-03

SHROUD-FAN

$100.99

$

Usually ships in 3-6 days

0

14

Toro 114-8712-03

SHROUD-FAN, FRONT

$75.99

$

Usually ships in 3-6 days

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 132-8632

DECAL-SERVICE
(Superseded to 140-5728)

$21.99

$

Usually ships in 3-6 days

0

16

Toro 136-5759

DECAL-SERVICE, FRENCH

$

$

Currently unavailable

16

Toro 136-5760

DECAL-SERVICE, GERMAN

$

$

Currently unavailable

16

Toro 136-5761

DECAL-SERVICE, SPANISH

$

$

Currently unavailable

16

Toro 136-5762

DECAL-SERVICE, ITALIAN

$

$

Currently unavailable

16

Toro 136-5763

DECAL-SERVICE, DUTCH

$

$

Currently unavailable

16

Toro 136-5764

DECAL-SERVICE, POLISH

$

$

Currently unavailable

16

Toro 136-5765

DECAL-SERVICE, RUSSIAN

$

$

Currently unavailable

16

Toro 136-5766

DECAL-SERVICE, SLOVAKIAN

$

$

Currently unavailable

17

Toro 117-1725-03

LATCH-ROD

$112.99

$

Usually ships in 3-6 days

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 106-9308

SPACER

$5.99

$

Usually ships in 3-6 days

0

21

Toro 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

22

Toro 121-4605

WASHER-SPRING

$4.99

$

In Stock, only 1 left!

0

23

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

24

Toro 106-2584

SPRING-TORSION

$15.99

$

Usually ships in 3-6 days

0

25

Toro 106-2554

ROD-SUPPORT, HOOD

$28.99

$

Usually ships in 3-6 days

0
