22321 (TX 427) - Toro Dingo Compact Utility Loader (SN: 402000000 - 404684849) Hydraulic Gear Pump Assembly No. 106-7650 Parts Diagram

Dingo Compact Utility Loader

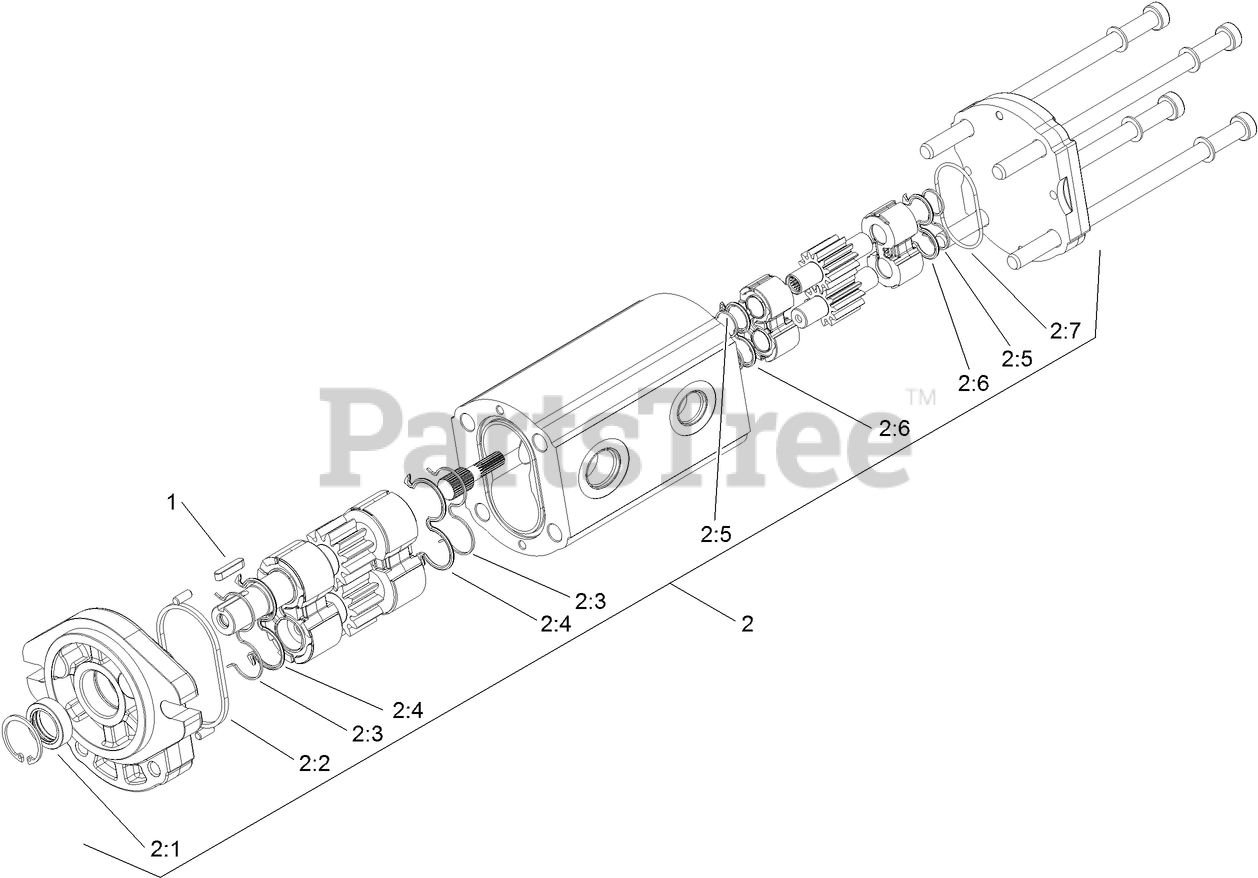

Hydraulic Gear Pump Assembly No. 106-7650 Parts Diagram

  • Title

1

Toro 100-4238

KEY-SQUARE

$12.99

$

Usually ships in 3-6 days

0

2

Toro 107-9316

SEAL KIT

$74.99

$

Usually ships in 3-6 days

0

2:1

SEAL-Shaft

Note: Not serviced separately

$

$

Not available

2:2

SEAL-SQUARE

Note: Not serviced separately

$

$

Not available

2:3

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

2:4

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

2:5

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

2:6

SEAL-GEAR-REAR

Note: Not serviced separately

$

$

Not available

2:7

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available
