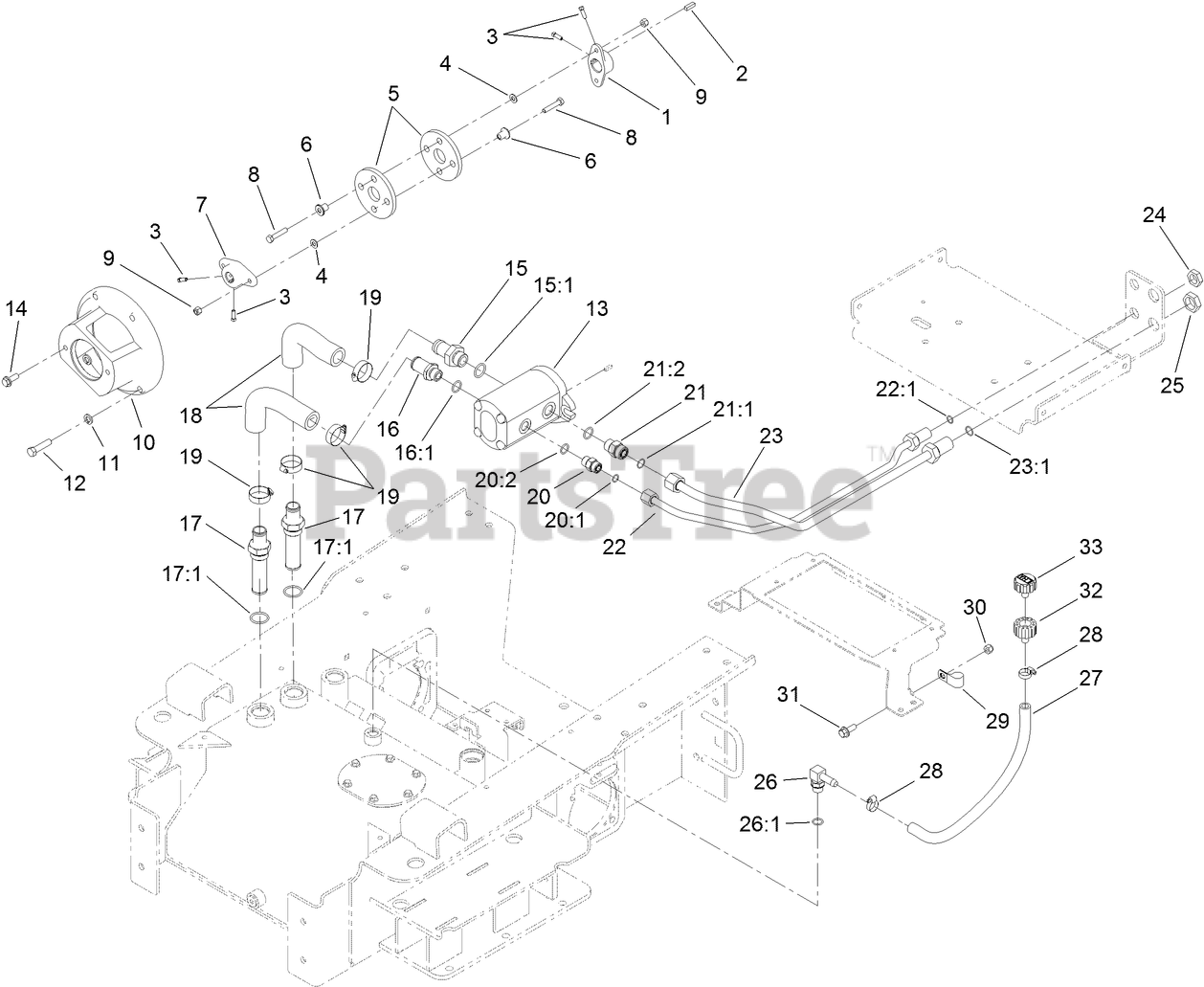

22321 (TX 427) - Toro Dingo Compact Utility Loader (SN: 402000000 - 404684849) Hydraulic Pump Mount Assembly Parts Diagram

Dingo Compact Utility Loader

Hydraulic Pump Mount Assembly Parts Diagram

  • Title

1

Toro 110-5236

HUB-ENGINE

$41.99

$

In Stock, only 2 left!

0

2

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, only 4 left!

0

3

Toro 3241-6

SCREW-SQH

$5.99

$

Usually ships in 3-6 days

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 115-4523

COUPLING-RUBBER

$61.99

$

In Stock, Qty 13

0

6

Toro 71-4411

SPACER

$3.49

$

In Stock, only 2 left!

0

7

Toro 110-9695

HUB-PUMP

$73.99

$

In Stock, only 1 left!

0

8

Toro 322-8

SCREW-HH

$3.99

$

In Stock, Qty 6

0

9

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 98-2751-03

MOUNT-PUMP

$246.99

$

Usually ships in 3-6 days

0

11

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 324-7

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

13

Toro 106-7650

HYD PUMP ASM

$2384.99

$

Usually ships in 3-6 days

0

14

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

15

Toro 99-3017

FITTING

$89.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

16

Toro 131-0573

FITTING-STR

$28.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

17

Toro 112-0211

STRAINER FITTING ASM

$205.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-146

O-RING

$5.49

$

In Stock, Qty 7

0

18

Toro 131-0585

HOSE-SUCTION, FORMED

$38.99

$

Usually ships in 3-6 days

0

19

Toro 2412-34

CLAMP-HOSE

$2.99

$

In Stock, only 2 left!

0

20

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

20:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

20:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

21

Toro 340-7

FITTING-STRAIGHT

$16.99

$

In Stock, only 4 left!

0

21:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

21:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

22

Toro 114-1356

HYD TUBE ASM

$135.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

23

Toro 114-1355

HYD TUBE ASM

$135.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

24

Toro 340-127

NUT-BULKHEAD

$7.99

$

Usually ships in 3-6 days

0

25

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

In Stock, only 2 left!

0

26

Toro 354-120

FITTING-ELBOW, 90

$37.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

27

Toro 98-4667

HOSE

$29.99

$

Usually ships in 3-6 days

0

28

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 5

0

29

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

30

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

31

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

32

Toro 92-8020

ADAPTER-BREATHER

$16.99

$

Usually ships in 3-6 days

0

33

Toro 68-6150

BREATHER

$31.99

$

In Stock, only 2 left!

0
