22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414999999) Alternator Components Assembly Parts Diagram

Dingo Compact Utility Loader

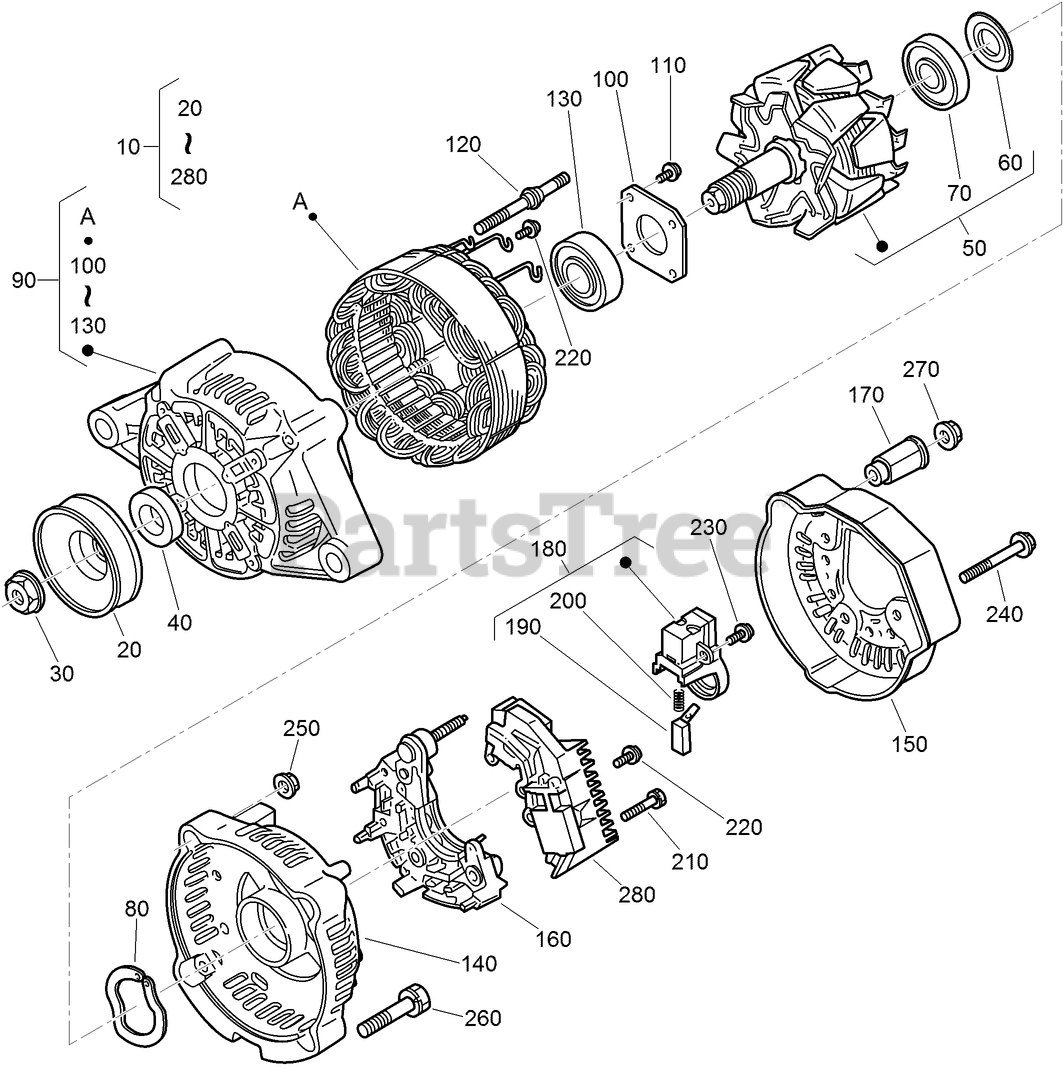

Alternator Components Assembly Parts Diagram

  • Title

10

Toro 98-9474

See Supercession: 131-6557
(Superseded to 131-6557)

$668.99

$

Usually ships in 3-6 days

0

20

Toro 98-9453

PULLEY-DYNAMO

$208.99

$

Usually ships in 3-6 days

0

30

Toro 98-7708

NUT

$11.99

$

Usually ships in 3-6 days

0

40

Toro 98-7709

COLLAR

$13.99

$

Usually ships in 3-6 days

0

50

Toro 107-0136

ROTOR ASM

$405.99

$

Usually ships in 3-6 days

0

60

Toro 98-7711

COVER-BEARING

$11.99

$

Usually ships in 3-6 days

0

70

Toro 107-0138

BEARING-BALL

$64.99

$

Usually ships in 3-6 days

0

80

Toro 98-7713

WASHER-THRUST

$6.99

$

Usually ships in 3-6 days

0

90

Toro 107-0139

DRIVE END FRAME ASM

$673.99

$

Usually ships in 3-6 days

0

100

Toro 98-7715

PLATE-RETAINER

$14.99

$

Usually ships in 3-6 days

0

110

Toro 98-7716

SCREW-HEAD, ROUND

$1.49

$

Usually ships in 3-6 days

0

120

Toro 98-7717

BOLT-THROUGH

$14.99

$

Usually ships in 3-6 days

0

130

Toro 133-2811

BEARING

$70.99

$

Usually ships in 3-6 days

0

140

Toro 107-9087

FRAME-END

$276.99

$

Usually ships in 3-6 days

0

150

Toro 107-0140

COVER-END

$52.99

$

Usually ships in 3-6 days

0

160

Toro 127-1612

See Supercession: 98-7721
(Superseded to 98-7721)

$733.99

$

Usually ships in 3-6 days

0

170

Toro 98-7722

BUSHING-INSULATION

$42.99

$

Usually ships in 3-6 days

0

180

Toro 107-0141

BRUSH HOLDER ASM

$161.99

$

Usually ships in 3-6 days

0

190

Toro 98-7724

BRUSH

$18.99

$

Usually ships in 3-6 days

0

200

Toro 98-7725

SPRING-BRUSH

$6.99

$

Usually ships in 3-6 days

0

210

Toro 98-7726

SCREW-HEAD, ROUND

$0.99

$

Usually ships in 3-6 days

0

220

Toro 98-7727

SCREW-HEAD, ROUND

$1.49

$

Usually ships in 3-6 days

0

230

Toro 98-7728

SCREW-HEAD, ROUND

$1.49

$

Usually ships in 3-6 days

0

240

Toro 98-7729

BOLT

$3.99

$

Usually ships in 3-6 days

0

250

Toro 98-7730

NUT

$1.99

$

Usually ships in 3-6 days

0

260

Toro 98-7731

BOLT

$5.99

$

Usually ships in 3-6 days

0

270

Toro 98-7732

NUT

$2.49

$

Usually ships in 3-6 days

0

280

Toro 110-3799

REGULATOR ASM

$643.99

$

Usually ships in 3-6 days

0
