22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414999999) Drive Assembly Parts Diagram

Dingo Compact Utility Loader

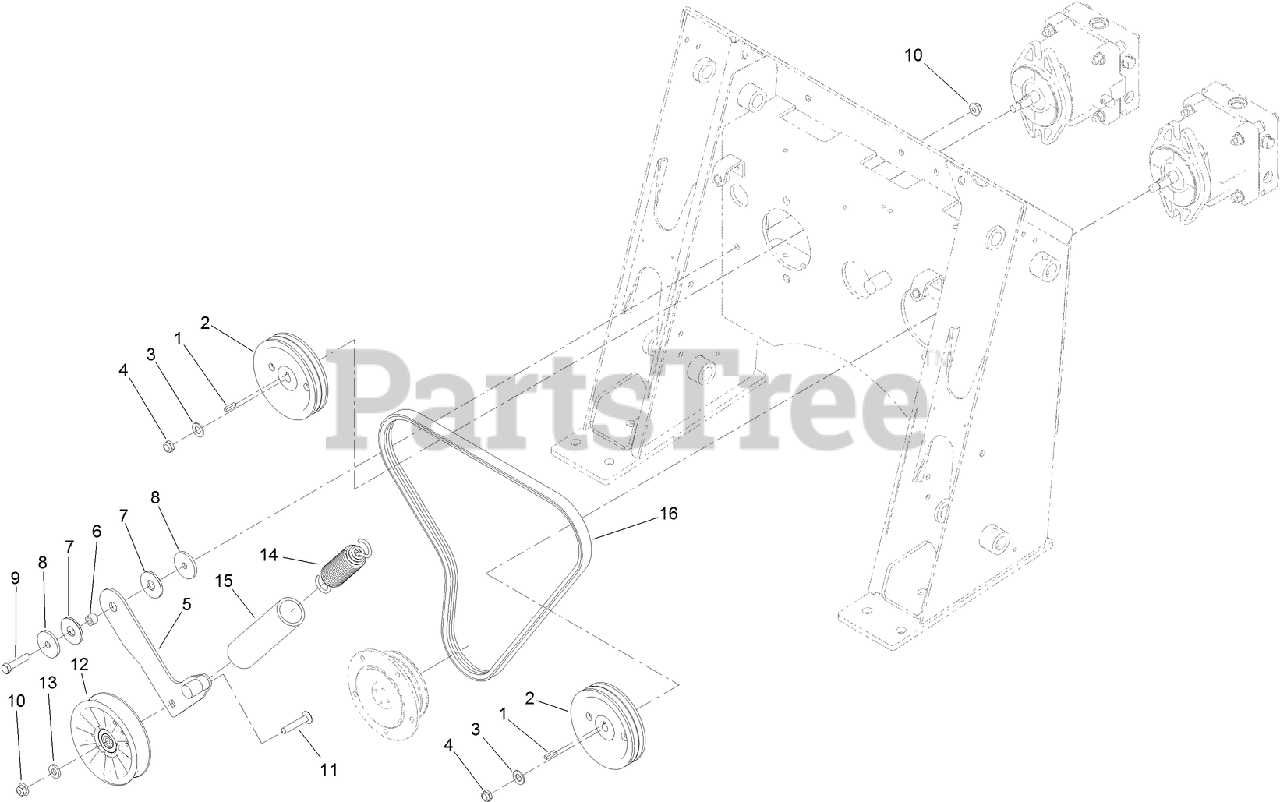

Drive Assembly Parts Diagram

  • Title

1

Toro 3-6168

KEY

$13.99

$

In Stock, only 2 left!

0

2

Toro 106-5710

PULLEY-3V

$140.99

$

In Stock, only 1 left!

0

3

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

4

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

5

Toro 117-9968

IDLER ARM ASM

$80.99

$

Usually ships in 3-6 days

0

6

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

0

7

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

0

8

Toro 115-1485

WASHER-PLAIN

$5.49

$

Usually ships in 3-6 days

0

9

Toro 323-9

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 117-9971

BOLT-CARRIAGE

$3.99

$

Usually ships in 3-6 days

0

12

Toro 119-2358

PULLEY-IDLER

$83.99

$

Usually ships in 3-6 days

0

13

Toro 43-0940

SPACER

$5.99

$

In Stock, Qty 20+

0

14

Toro 105-0383

SPRING-EXTENSION

$110.99

$

Usually ships in 3-6 days

0

15

Toro 112-2409

RETAINER-SPRING

$24.99

$

Usually ships in 3-6 days

0

16

Toro 108-6262

V-BELT

$157.99

$

In Stock, only 1 left!

0
