22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414999999) Fuel Tank, Fuel Pump and Filter Assembly Parts Diagram

Dingo Compact Utility Loader

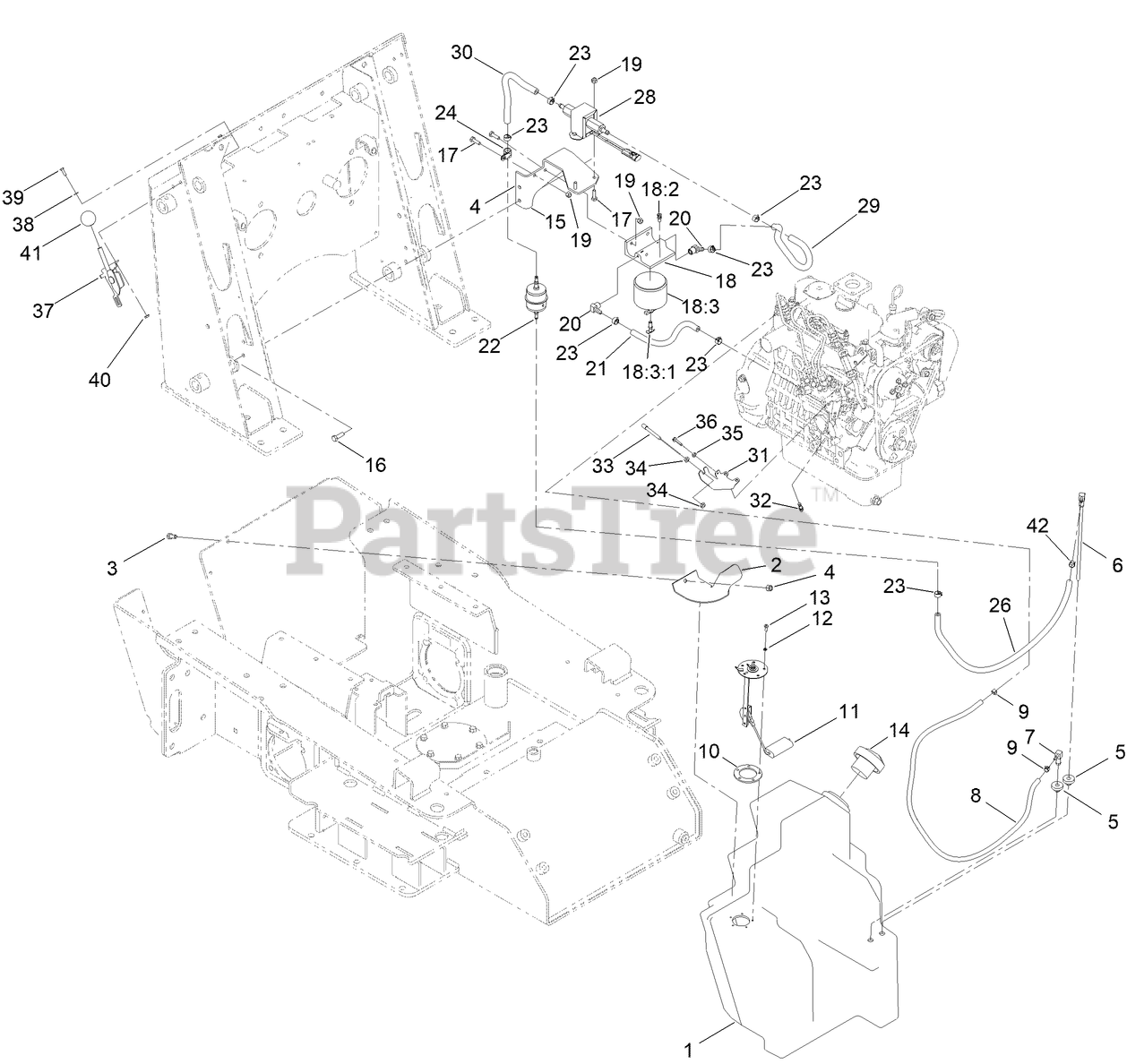

Fuel Tank, Fuel Pump and Filter Assembly Parts Diagram

  • Title

1

Toro 115-4800

TANK-FUEL

$629.99

$

Usually ships in 3-6 days

0

2

Toro 108-6273-03

CLAMP-TANK, FUEL

$54.99

$

Usually ships in 3-6 days

0

3

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

6

Toro 98-0185

PIPE-STAND

$45.99

$

In Stock, only 2 left!

0

7

Toro 104-5228

FITTING-ELBOW, 90 DEG

$20.99

$

In Stock, only 2 left!

0

8

Toro 110-3958

HOSE-FUEL

$30.99

$

In Stock, only 2 left!

0

9

Toro 2412-80

CLAMP-HOSE
(Superseded to 2412-146)

$1.99

$

In Stock, Qty 6

0

10

Toro 113372

GASKET-SENDER, FUEL

$4.49

$

In Stock, only 1 left!

0

11

Toro 120-5391

SENDER-FUEL

$309.99

$

Usually ships in 3-6 days

0

12

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

13

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

14

Toro 107-2172

CAP-DIESEL

$52.99

$

In Stock, only 1 left!

0

15

Toro 145-3161-03

BRACKET-PUMP,FUEL

$56.99

$

Usually ships in 3-6 days

0

16

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 109-2678

FILTER HEAD ASM

$274.99

$

Usually ships in 3-6 days

0

18:2

Toro 63-8290

VENT-AIR

$23.99

$

Usually ships in 3-6 days

0

18:3

Toro 63-8300

ELEMENT-SPIN ON

$34.99

$

In Stock, Qty 10

0

18:3:1

Toro 63-8310

VALVE-DRAIN

$15.99

$

Usually ships in 3-6 days

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 353-781

FITTING-HYD, 90

$29.99

$

Usually ships in 3-6 days

0

21

Toro 110-4124

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

22

Toro 108-3828

FILTER-FUEL

$8.99

$

In Stock, Qty 18

0

23

Toro 92-2379

CLAMP-HOSE

$0.99

$

In Stock, Qty 9

0

24

Toro 2412-134

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

26

Toro 109-0302

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

28

Toro 145-3160

PUMP-FUEL, ELECTRIC
(Superseded to 144-4020)

$230.99

$

In Stock, Qty 8

0

29

Toro 110-4110

HOSE-LP

$9.99

$

Usually ships in 3-6 days

0

30

Toro 110-4107

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

31

Toro 108-5922

BRACKET-SUPPORT, THROTTLE

$22.99

$

Usually ships in 3-6 days

0

32

Toro 108-5928

SWIVEL-STOP, CABLE

$17.99

$

Usually ships in 3-6 days

0

33

Toro 108-6337

CABLE-THROTTLE

$33.99

$

In Stock, only 2 left!

0

34

Toro 3220-1

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

35

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, Qty 7

0

36

Toro 117-1701

SCREW-HWHTF

$6.49

$

Usually ships in 3-6 days

0

37

Toro 108-9730

LEVER-CONTROL

$47.99

$

In Stock, only 2 left!

0

38

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

39

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 16

0

40

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

41

Toro 233-42

KNOB

$15.99

$

In Stock, only 2 left!

0

42

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0
