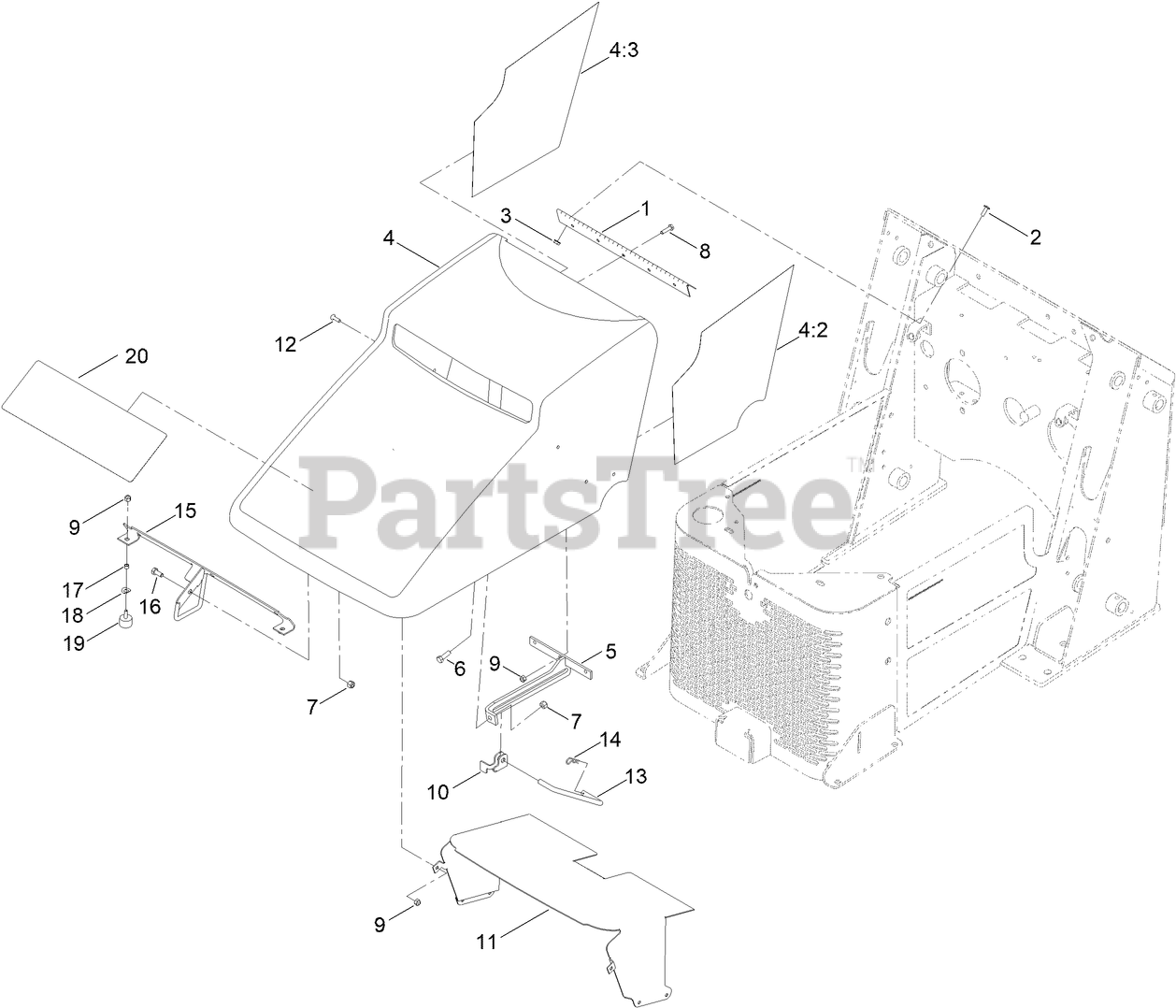

22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414999999) Hood Assembly Parts Diagram

Dingo Compact Utility Loader

Hood Assembly Parts Diagram

  • Title

1

Toro 100-1284

HINGE-HOOD

$90.99

$

In Stock, only 2 left!

0

2

Toro 9114604

SCREW-HEAD, TRUSS

$1.49

$

Usually ships in 3-6 days

0

3

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

4

Toro 112-2460

See Supercession: 119-2194
(Superseded to 119-2194)

$1267.99

$

Usually ships in 3-6 days

0

4:2

Toro 112-2464

FOILTAPE-LH

$70.99

$

Usually ships in 3-6 days

0

4:3

Toro 112-2465

FOILTAPE-RH

$70.99

$

Usually ships in 3-6 days

0

5

Toro 112-2448-03

BRACKET-ROD, PROP

$88.99

$

Usually ships in 3-6 days

0

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 115-0714

BRACKET-LATCH, LOCKING

$28.99

$

In Stock, only 1 left!

0

11

Toro 108-6286

BAFFLE-HOOD

$247.99

$

Usually ships in 3-6 days

0

12

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

13

Toro 108-6357

ROD-SUPPORT, HOOD

$79.99

$

In Stock, only 2 left!

0

14

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

15

Toro 108-6287-03

ROD LATCH ASM

$159.99

$

Usually ships in 3-6 days

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 106-9308

SPACER

$5.99

$

Usually ships in 3-6 days

0

18

Toro 121-4605

WASHER-SPRING

$4.99

$

In Stock, only 1 left!

0

19

Toro 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

20

Toro 139-8819

DECAL-SERVICE, TX525 DE

$

$

Currently unavailable

20

Toro 139-8828

DECAL-SERVICE, TX525 FR

$

$

Currently unavailable

20

Toro 139-8833

DECAL-SERVICE, TX525 IT

$

$

Currently unavailable

20

Toro 139-8838

DECAL-SERVICE, TX525 NE

$

$

Currently unavailable

20

Toro 139-8843

DECAL-SERVICE, TX525 PL

$

$

Currently unavailable

20

Toro 139-8848

DECAL-SERVICE, TX525 RU

$

$

Currently unavailable

20

Toro 139-8853

DECAL-SERVICE, TX525 SK

$

$

Currently unavailable

20

Toro 139-8857

DECAL-SERVICE, TX525 ES

$

$

Currently unavailable
