22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414999999) Inlet and Exhaust Manifold Assembly Parts Diagram
Dingo Compact Utility Loader

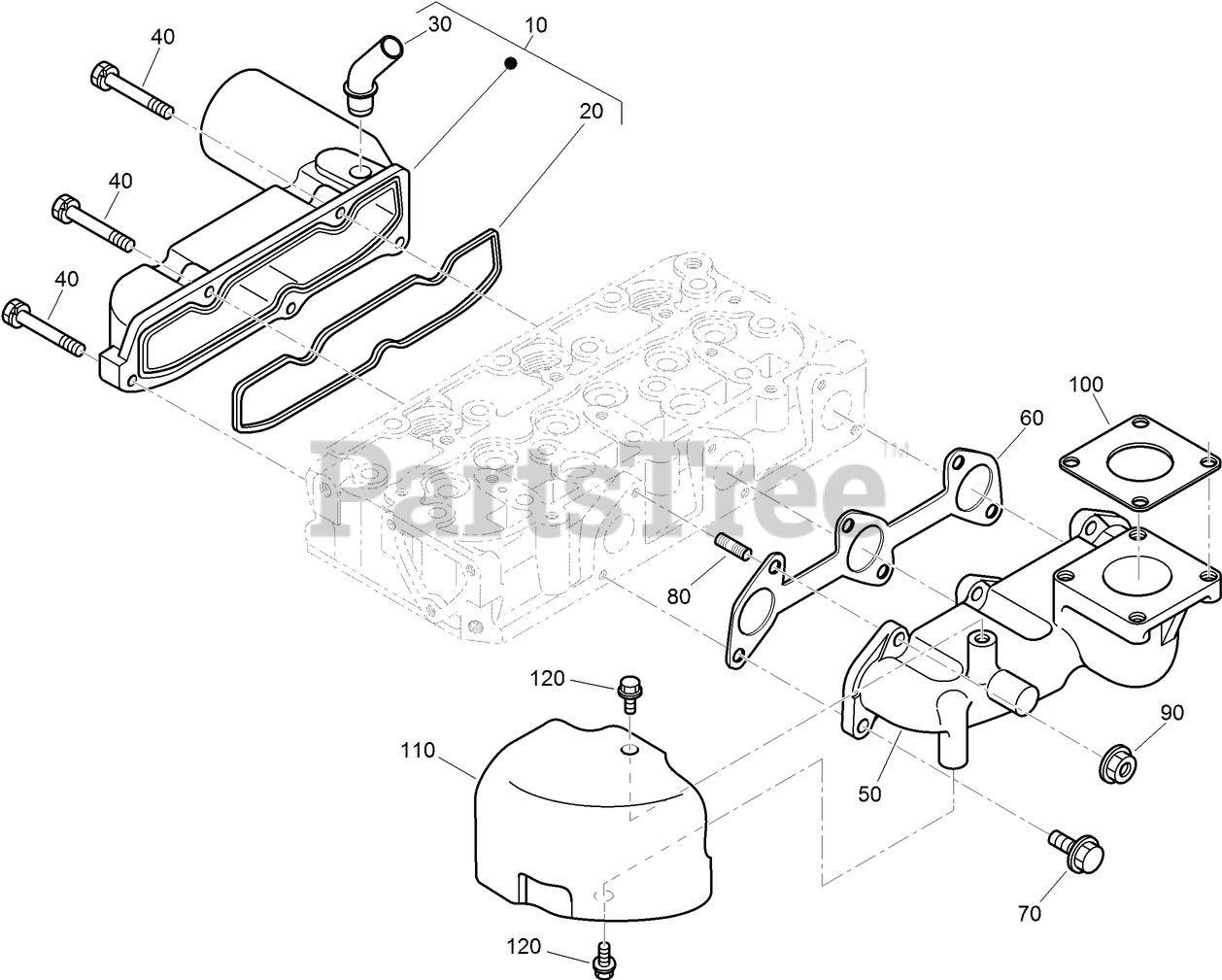

Inlet and Exhaust Manifold Assembly Parts Diagram
Toro 120-3141
INTAKE MANIFOLD ASM
$250.99
$
Usually ships in 3-6 days
Toro 110-3838
GASKET-MANIFOLD, INTAKE
$14.99
$
Usually ships in 3-6 days
Toro 121-2417
PIPE-BREATHER
$35.99
$
Usually ships in 3-6 days
Toro 98-9352
BOLT
$1.49
$
Usually ships in 3-6 days
Toro 112-2516
MANIFOLD-EXHAUST
$373.99
$
Usually ships in 3-6 days
Toro 110-3840
GASKET-MANIFOLD, EXHAUST
$9.49
$
Usually ships in 3-6 days
Toro 130-1154
SCREW-HEX HD
$6.49
$
In Stock, Qty 9
Toro 130-1156
BOLT-STUD
$1.49
$
In Stock, Qty 6
Toro 100-1778
NUT
$1.99
$
In Stock, Qty 6
Toro 99-8343
GASKET-MUFFLER
$17.99
$
In Stock, only 2 left!
Toro 112-2517
COVER-HEAT
$79.99
$
Usually ships in 3-6 days
Toro 130-1173
SCREW-FLANGE HD
$0.99
$
Usually ships in 3-6 days
