22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414999999) Loader Arm Assembly Parts Diagram

Dingo Compact Utility Loader

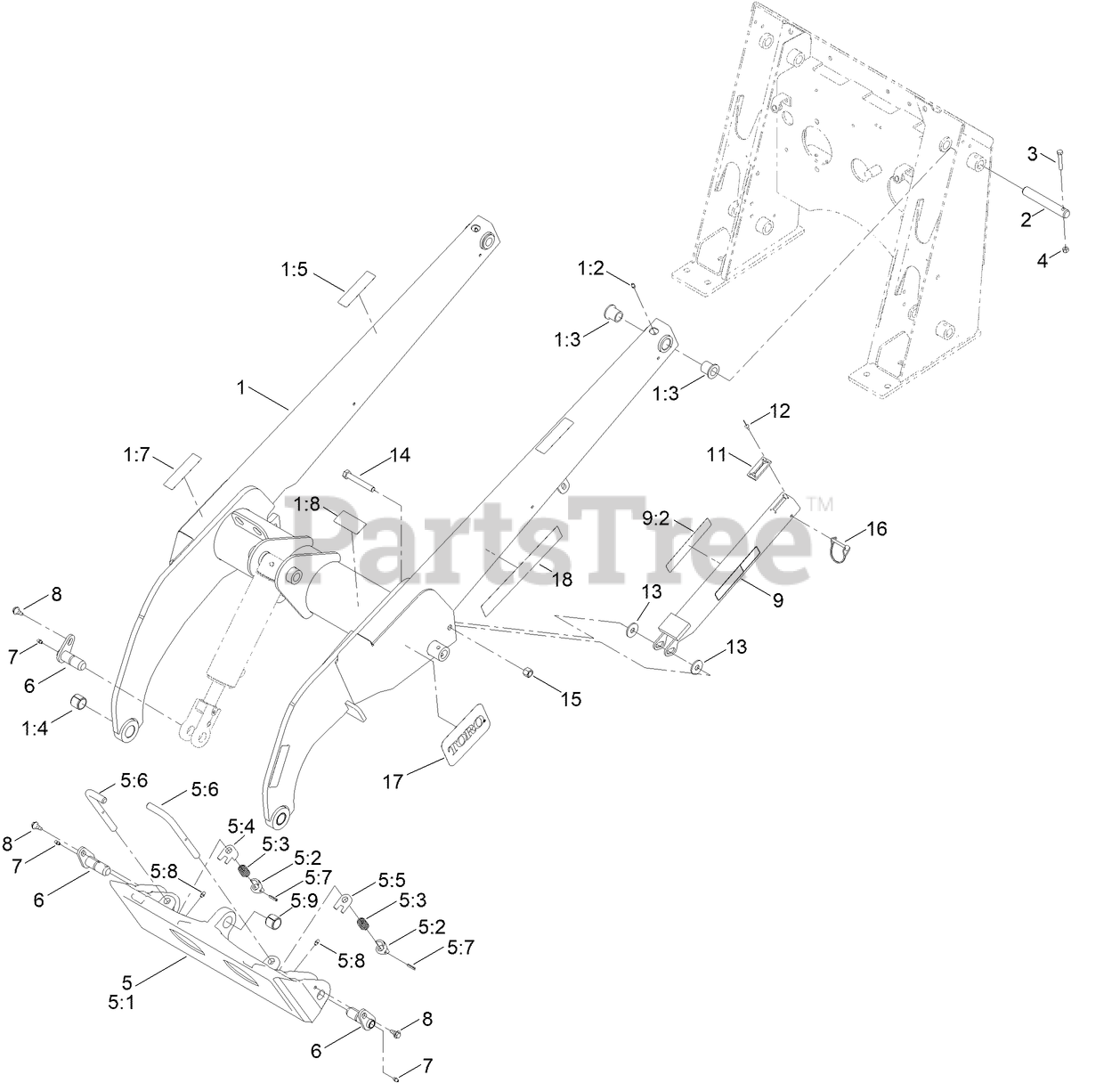

Loader Arm Assembly Parts Diagram

  • Title

1

Toro 108-4638

LOADER ARM ASM

$5374.99

$

Usually ships in 3-6 days

0

1:2

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

1:3

Toro 95-3577

BUSHING

$16.99

$

In Stock, only 4 left!

0

1:4

Toro 98-4871

BUSHING-TENSION

$26.99

$

In Stock, only 2 left!

0

1:5

Toro 100-8821

DECAL-WARNING, PINCH

$11.99

$

Usually ships in 3-6 days

0

1:7

Toro 115-4855

DECAL-CAUTION

$11.99

$

Usually ships in 3-6 days

0

1:8

Toro 100-8822

DECAL-NO RIDER

$40.99

$

Usually ships in 3-6 days

0

2

Toro 104-2849

PIN-LOCKING

$77.99

$

Usually ships in 3-6 days

0

3

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 132-8418

QUICK ATTACH ASM

$1652.99

$

Usually ships in 3-6 days

0

5:1

Toro 130-7708-03

MOUNT-QTACH

$

$

Not available

5:2

Toro 105-0246

CAM

$81.99

$

In Stock, only 1 left!

0

5:3

Toro 98-4694

SPRING-COMPRESSION

$13.99

$

Usually ships in 3-6 days

0

5:4

Toro 104-5909

STOP-RH

$67.99

$

Usually ships in 3-6 days

0

5:5

Toro 104-5903

STOP-LH

$67.99

$

In Stock, only 2 left!

0

5:6

Toro 132-8419

PIN-LOCKING

$37.99

$

In Stock, only 2 left!

0

5:7

Toro 3285-1

PIN-GROOVED

$2.49

$

In Stock, only 1 left!

0

5:8

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

5:9

Toro 98-4871

BUSHING-TENSION

$26.99

$

In Stock, only 2 left!

0

6

Toro 130-5222

PIN-PIVOT

$78.99

$

In Stock, only 2 left!

0

7

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

8

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, Qty 20+

0

9

Toro 108-4639

LOCKING ARM ASM

$434.99

$

Usually ships in 3-6 days

0

9:2

Toro 115-4858

DECAL-DANGER

$9.99

$

Usually ships in 3-6 days

0

11

Toro 98-0083

STOP-RUBBER

$20.99

$

Usually ships in 3-6 days

0

12

Toro 95-1687

RIVET

$0.99

$

Usually ships in 3-6 days

0

13

Toro 68-1440

WASHER-RUBBER

$8.99

$

Usually ships in 3-6 days

0

14

Toro 325-14

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

15

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 100-1663

PIN-HITCH

$17.99

$

In Stock, only 4 left!

0

17

Toro 105-1217

DECAL

$44.99

$

In Stock, Qty 6

0

18

Toro 115-4868

DECAL

$30.99

$

Usually ships in 3-6 days

0
