22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414999999) Main Bearing Case Assembly Parts Diagram

Dingo Compact Utility Loader

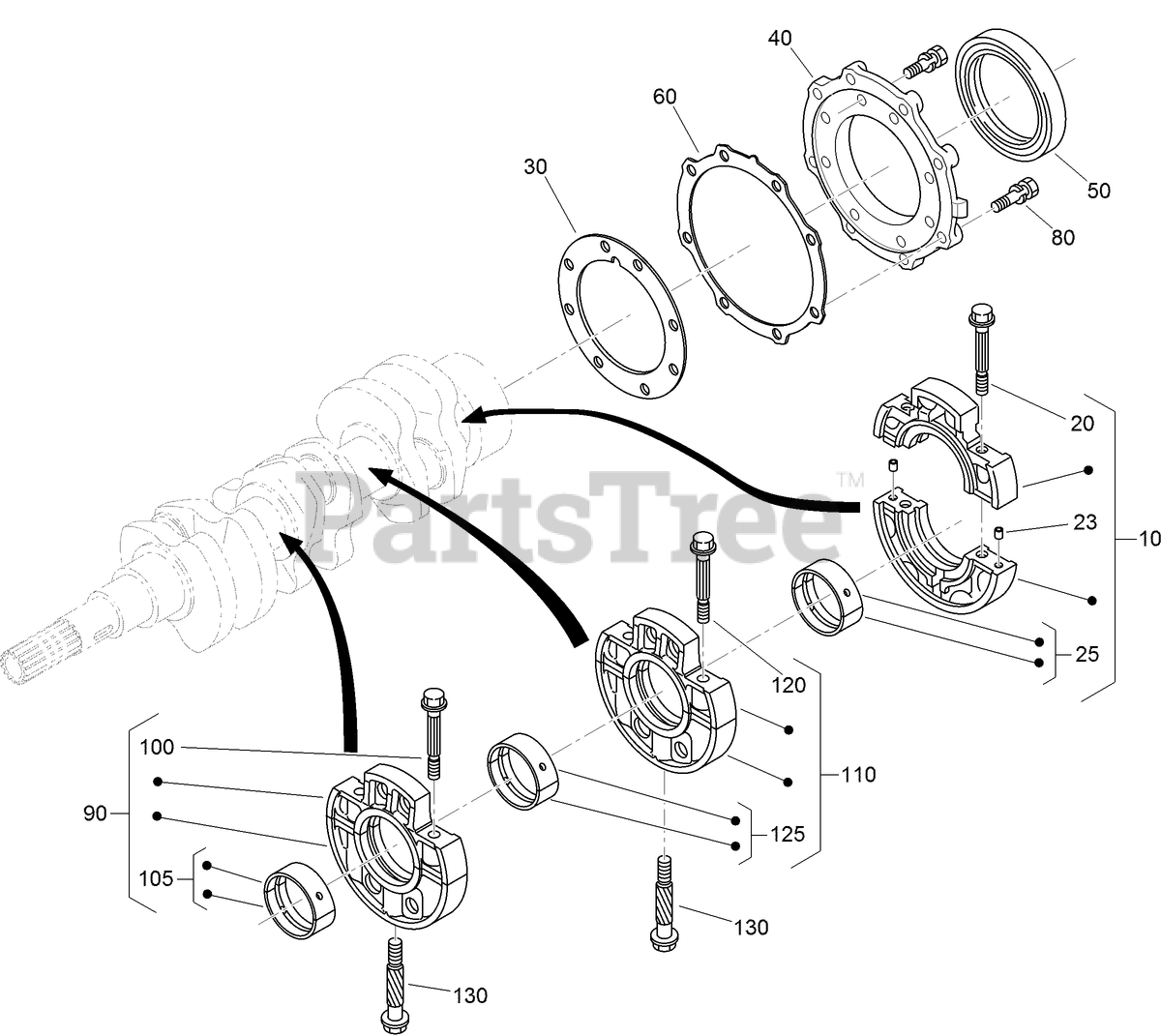

Main Bearing Case Assembly Parts Diagram

  • Title

10

Toro 125-9064

WHEEL BEARING CASE ASM

$301.99

$

Usually ships in 3-6 days

0

20

Toro 125-9065

BOLT-FLANGE

$4.49

$

Usually ships in 3-6 days

0

23

Toro 125-9082

PIN-STRAIGHT

$0.99

$

Usually ships in 3-6 days

0

25

Toro 125-9066

CRANKSHAFT METAL ASM (STD)

$92.99

$

Usually ships in 3-6 days

0

25

Toro 125-9067

CRANKSHAFT METAL ASM (-0.20MM)

$56.99

$

Usually ships in 3-6 days

0

25

Toro 125-9068

CRANKSHAFT METAL ASM (-0.40MM)

$56.99

$

Usually ships in 3-6 days

0

30

Toro 117-0304

GASKET-CASE, BEARING

$13.99

$

Usually ships in 3-6 days

0

40

Toro 112-8334

COVER-CASE, BEARING

$170.99

$

Usually ships in 3-6 days

0

50

Toro 110-3724

SEAL-OIL

$71.99

$

Usually ships in 3-6 days

0

60

Toro 100-1876

GASKET-COVER, CASE

$21.99

$

Usually ships in 3-6 days

0

80

Toro 100-1750

BOLT

$2.49

$

Usually ships in 3-6 days

0

90

Toro 110-3725

MAIN BEARING CASE ASM

$350.99

$

Usually ships in 3-6 days

0

100

Toro 110-3723

BOLT-CASE, BEARING

$11.99

$

Usually ships in 3-6 days

0

105

Toro 110-3741

CRANKSHAFT METAL ASM (STD)

$86.99

$

Usually ships in 3-6 days

0

105

Toro 125-9083

CRANKSHAFT METAL ASM (-0.20MM)

$68.99

$

Usually ships in 3-6 days

0

105

Toro 110-3743

CRANKSHAFT METAL ASM (-0.40MM)

$86.99

$

Usually ships in 3-6 days

0

110

Toro 125-9069

MAIN CASE BEARING ASM

$122.99

$

Usually ships in 3-6 days

0

120

Toro 110-3723

BOLT-CASE, BEARING

$11.99

$

Usually ships in 3-6 days

0

125

Toro 110-3741

CRANKSHAFT METAL ASM (STD)

$86.99

$

Usually ships in 3-6 days

0

125

Toro 125-9083

CRANKSHAFT METAL ASM (-0.20MM)

$68.99

$

Usually ships in 3-6 days

0

125

Toro 110-3743

CRANKSHAFT METAL ASM (-0.40MM)

$86.99

$

Usually ships in 3-6 days

0

130

Toro 100-1874

BOLT-CASE, BEARING

$14.99

$

Usually ships in 3-6 days

0
