22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414999999) Principal Hydraulic Assembly Parts Diagram

Dingo Compact Utility Loader

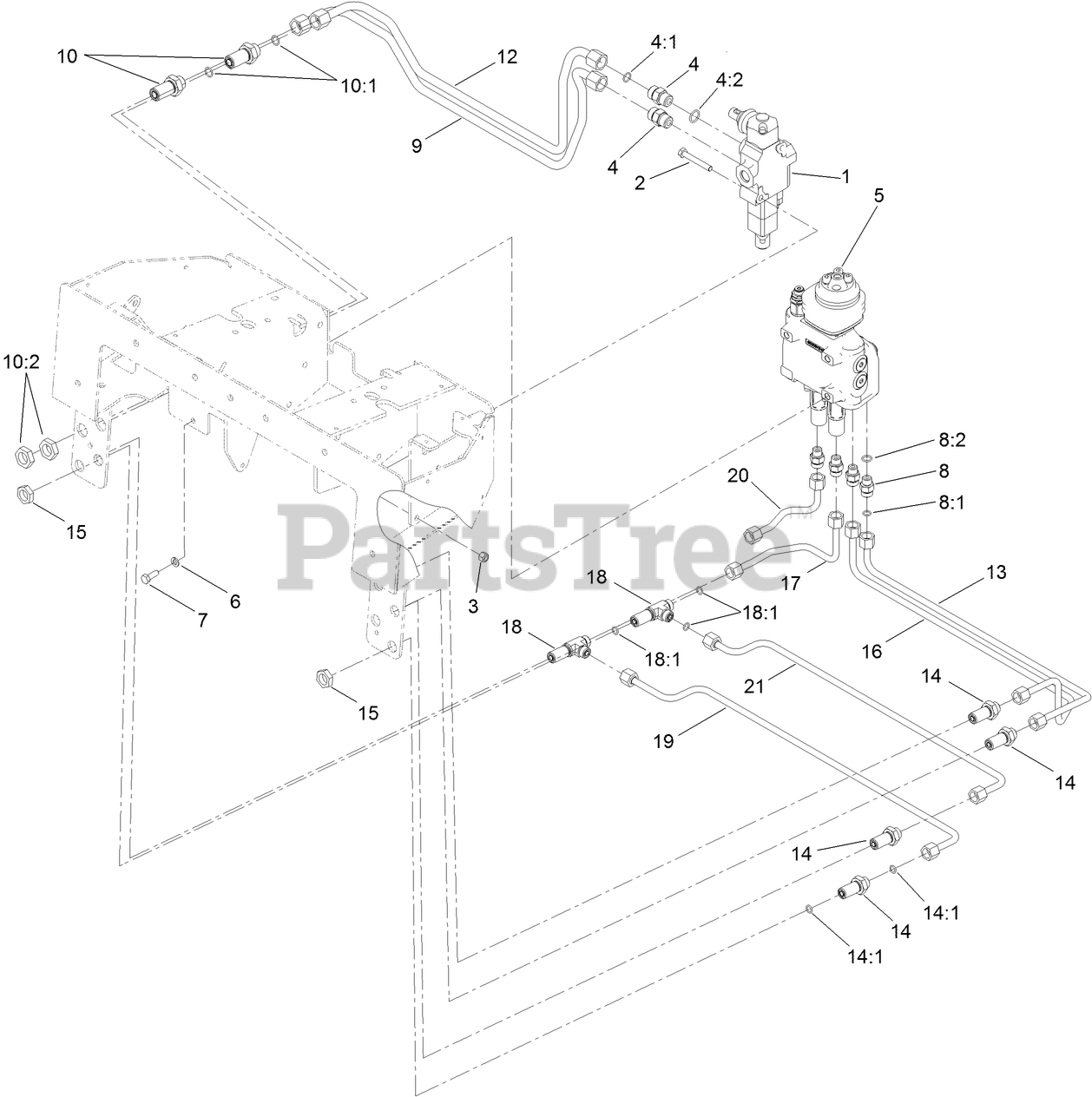

Principal Hydraulic Assembly Parts Diagram

  • Title

1

Toro 104-2831

1 SPOOL VALVE ASM

$1907.99

$

Usually ships in 3-6 days

0

2

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

3

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

4:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

4:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

5

Toro 144-7354

2 SPOOL VALVE ASM

$2506.99

$

Usually ships in 3-6 days

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

8

Toro 340-2

FITTING-STRAIGHT

$13.99

$

In Stock, only 2 left!

0

8:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

8:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

9

Toro 106-9310

TUBE-HYD

$171.99

$

In Stock, only 1 left!

0

10

Toro 340-161

FITTING-BULKHEAD

$115.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

10:2

Toro 340-127

NUT-BULKHEAD

$7.99

$

Usually ships in 3-6 days

0

12

Toro 106-9311

TUBE-HYD

$167.99

$

Usually ships in 3-6 days

0

13

Toro 106-9314

TUBE-HYD

$124.99

$

Usually ships in 3-6 days

0

14

Toro 340-71

FITTING-STRAIGHT, BULKHEAD

$24.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

15

Toro 340-70

NUT-LOCK

$2.99

$

Usually ships in 3-6 days

0

16

Toro 106-9312

TUBE-HYD

$134.99

$

Usually ships in 3-6 days

0

17

Toro 106-9313

TUBE-HYD

$109.99

$

Usually ships in 3-6 days

0

18

Toro 340-68

FITTING-TEE, BULKHEAD

$57.99

$

In Stock, only 2 left!

0

18:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

19

Toro 106-9316

TUBE-HYD

$130.99

$

Usually ships in 3-6 days

0

20

Toro 106-9315

TUBE-HYD

$99.99

$

Usually ships in 3-6 days

0

21

Toro 106-9317

TUBE-HYD

$125.99

$

Usually ships in 3-6 days

0
