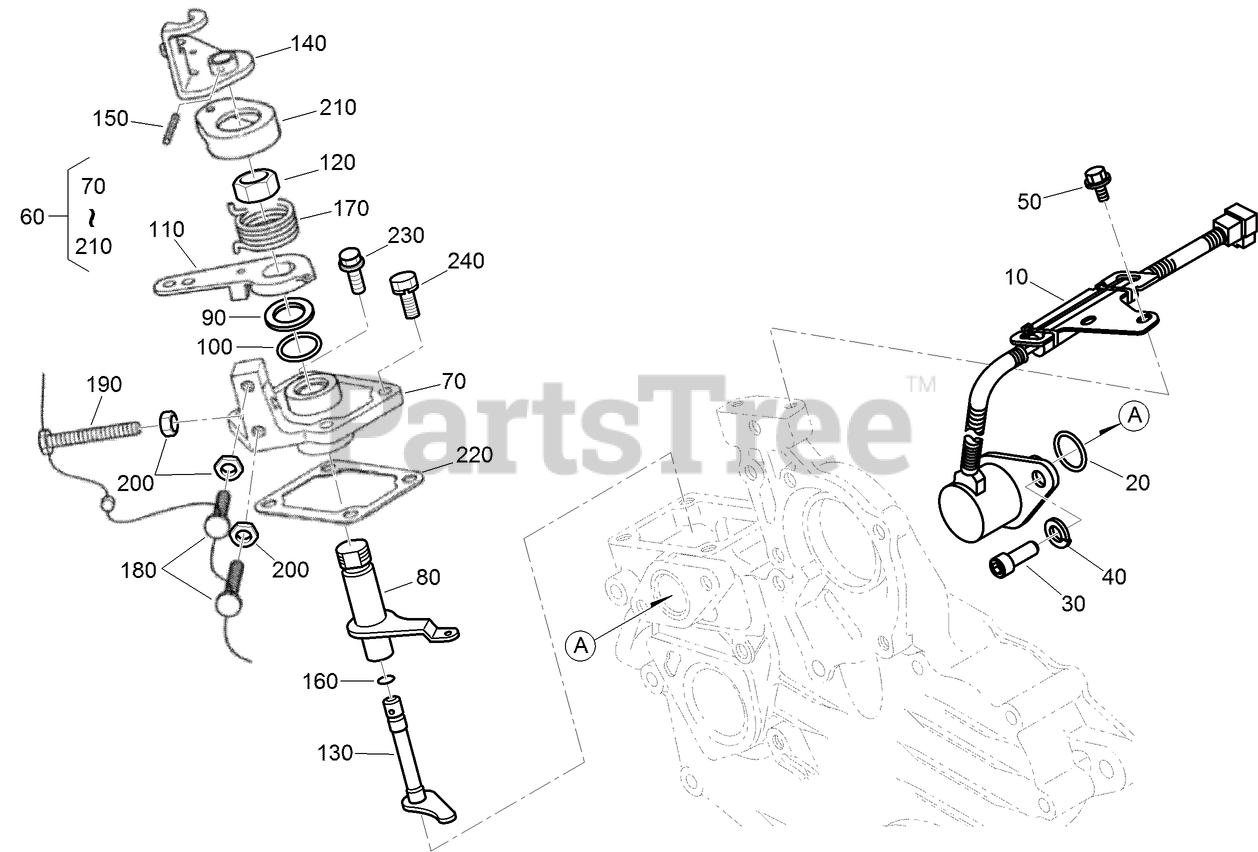

22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414999999) Stop Solenoid and Speed Control Plate Assembly Parts Diagram

Dingo Compact Utility Loader

Stop Solenoid and Speed Control Plate Assembly Parts Diagram

  • Title

10

Toro 117-2719

SOLENOID STOP ASM

$329.99

$

Usually ships in 3-6 days

0

20

Toro 110-3762

O-RING

$5.99

$

In Stock, only 3 left!

0

30

Toro 110-3763

BOLT-HSH

$1.99

$

Usually ships in 3-6 days

0

40

Toro 98-7699

WASHER-SPRING

$0.99

$

Usually ships in 3-6 days

0

50

Toro 100-1774

BOLT-FLANGE

$7.99

$

Usually ships in 3-6 days

0

60

Toro 110-3769

SPEED CONTROL PLATE ASM

$565.99

$

Usually ships in 3-6 days

0

70

Toro 110-3770

PLATE-CONTROL, SPEED

$98.99

$

Usually ships in 3-6 days

0

80

Toro 110-3771

LEVER-GOVERNOR

$135.99

$

Usually ships in 3-6 days

0

90

Toro 110-3772

COLLAR

$13.99

$

Usually ships in 3-6 days

0

100

Toro 100-2208

O-RING

$3.99

$

Usually ships in 3-6 days

0

110

Toro 110-3773

LEVER-CONTROL, SPEED

$68.99

$

Usually ships in 3-6 days

0

120

Toro 110-3774

NUT-CONTROL, SPEED

$7.99

$

Usually ships in 3-6 days

0

130

Toro 110-3775

SHAFT-LEVER

$93.99

$

Usually ships in 3-6 days

0

140

Toro 110-3776

LEVER-STOP, ENGINE

$82.99

$

Usually ships in 3-6 days

0

150

Toro 110-3777

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

160

Toro 100-2207

O-RING

$3.99

$

Usually ships in 3-6 days

0

170

Toro 110-3778

SPRING-RETURN

$9.99

$

Usually ships in 3-6 days

0

180

Toro 120-3133

SCREW-STOPPER

$3.99

$

Usually ships in 3-6 days

0

190

Toro 120-3134

BOLT

$1.99

$

Usually ships in 3-6 days

0

200

Toro 98-7572

NUT

$0.99

$

Usually ships in 3-6 days

0

210

Toro 110-3779

CAP

$10.99

$

Usually ships in 3-6 days

0

220

Toro 100-1962

GASKET-PLATE, CONTROL

$8.99

$

In Stock, only 1 left!

0

230

Toro 127-0403

BOLT-FLANGE

$5.99

$

Usually ships in 3-6 days

0

240

Toro 112-2507

BOLT

$22.99

$

Usually ships in 3-6 days

0
