22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414999999) Track and Traction Assembly Parts Diagram

Dingo Compact Utility Loader

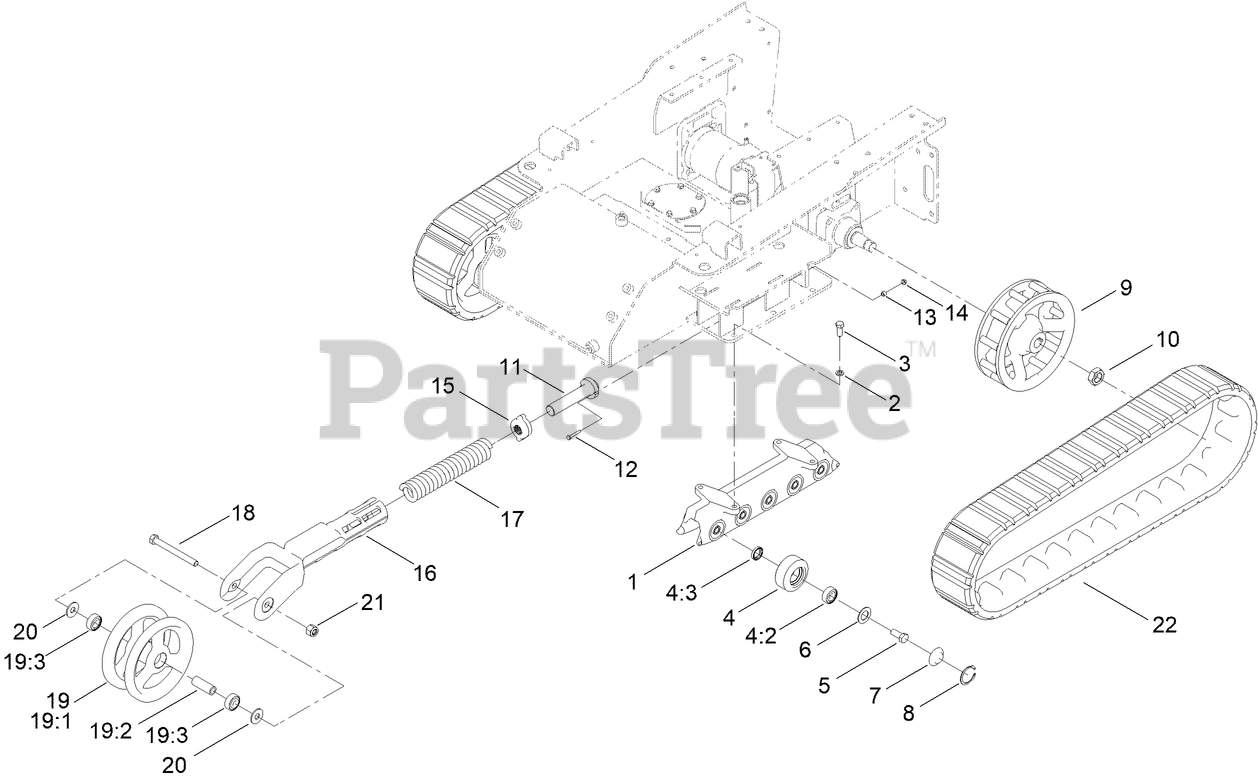

Track and Traction Assembly Parts Diagram

  • Title

1

Toro 117-1310-0P

GUIDE-TRACK, TX NARROW

$857.99

$

Usually ships in 3-6 days

0

2

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

3

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

4

Toro 138-0782

ROAD WHEEL ASM

$108.99

$

In Stock, only 3 left!

0

4:2

Toro 120-5378

BEARING-BALL

$18.99

$

In Stock, Qty 20+

0

4:3

Toro 253-118

SEAL-OIL

$21.99

$

In Stock, only 4 left!

0

5

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

6

Toro 106-7585

GASKET-BOGIE

$2.49

$

In Stock, Qty 8

0

7

Toro 106-7557

CAP-WHEEL, BEARING

$5.99

$

In Stock, only 3 left!

0

8

Toro 106-7595

RING-SNAP, INTERNAL

$5.99

$

In Stock, Qty 7

0

9

Toro 108-5643-03

WHEEL-DRIVE

$1380.99

$

Usually ships in 3-6 days

0

10

Toro 107-9319

NUT-HEX

$49.99

$

In Stock, only 2 left!

0

11

Toro 98-9846

BOLT-TENSIONER

$497.99

$

Usually ships in 3-6 days

0

12

Toro 321-37

SCREW-HH

$12.99

$

In Stock, only 2 left!

0

13

Toro 98-4799

SPACER

$8.99

$

In Stock, Qty 13

0

14

Toro 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

0

15

Toro 108-4664

BLOCK-TENSIONER

$149.99

$

Usually ships in 3-6 days

0

16

Toro 108-4691-03

ARM-TENSIONER
(Superseded to 108-4691-05)

$252.99

$

In Stock, only 1 left!

0

17

Toro 95-3624

SPRING-COMPRESSION

$209.99

$

In Stock, only 1 left!

0

18

Toro 327-17

SCREW-HH

$13.99

$

In Stock, Qty 11

0

19

Toro 104-5745

TENSIONER WHEEL ASM

$825.99

$

Usually ships in 3-6 days

0

19:1

Toro 104-5747-03

WHEEL-TENSIONER
(Superseded to 104-5745)

$825.99

$

Usually ships in 3-6 days

0

19:2

Toro 98-9835

SPACER-WHEEL, TENSIONER

$19.99

$

In Stock, only 2 left!

0

19:3

Toro 120-5378

BEARING-BALL

$18.99

$

In Stock, Qty 20+

0

20

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

21

Toro 3296-24

NUT-HEX

$5.49

$

In Stock, Qty 20+

0

22

Toro 136-5847

TRACK

$1187.99

$

Usually ships in 3-6 days

0
