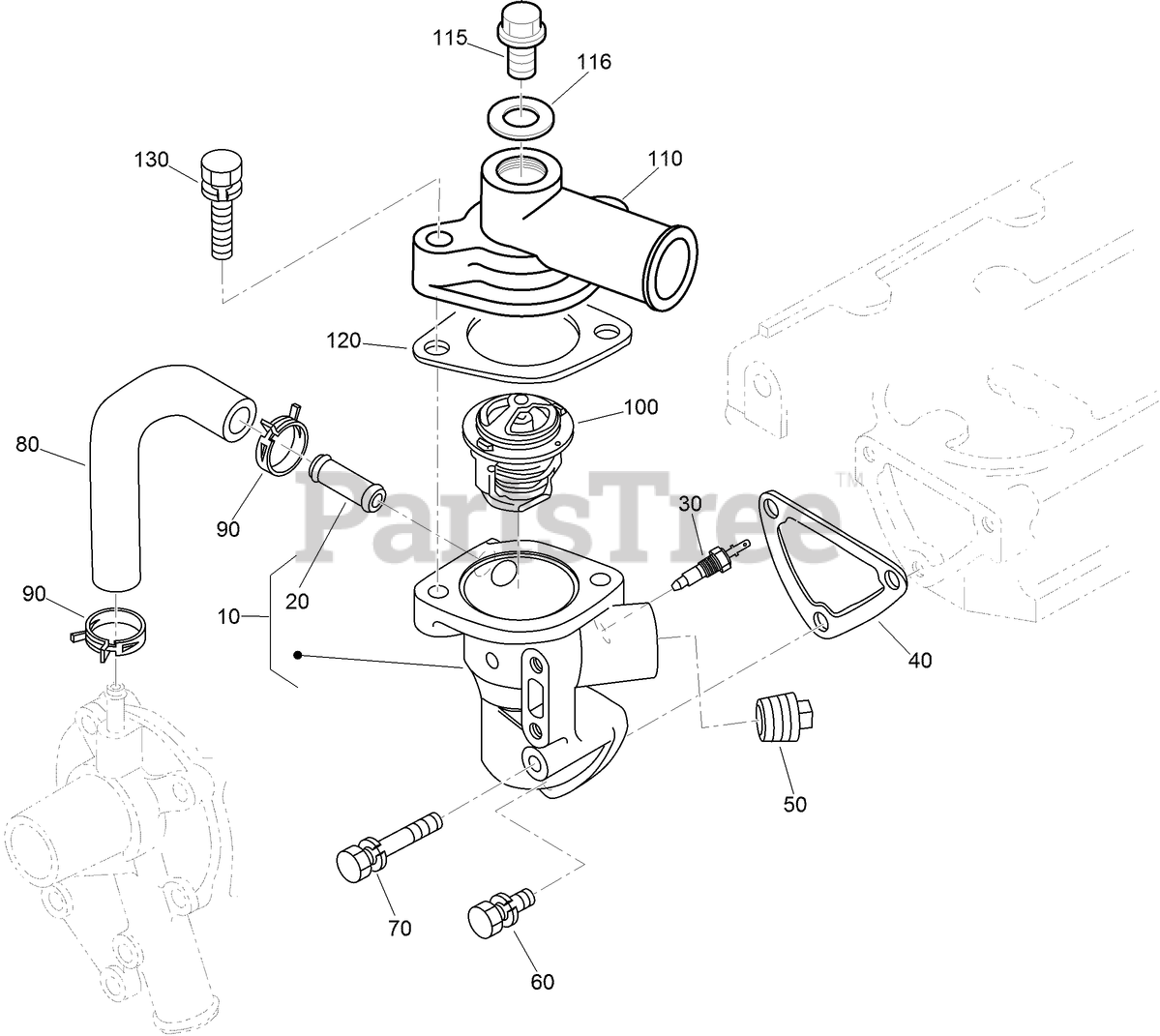

22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414999999) Water Flange and Thermostat Assembly Parts Diagram

Dingo Compact Utility Loader

Water Flange and Thermostat Assembly Parts Diagram

  • Title

10

Toro 110-3819

WATER FLANGE ASM

$281.99

$

Usually ships in 3-6 days

0

20

Toro 98-9580

PIPE-RETURN, WATER

$6.49

$

Usually ships in 3-6 days

0

30

Toro 99-3582

THERMOSWITCH

$165.99

$

Usually ships in 3-6 days

0

40

Toro 110-3820

GASKET-FLANGE, WATER

$4.49

$

Usually ships in 3-6 days

0

50

Toro 110-3821

PLUG

$14.99

$

Usually ships in 3-6 days

0

60

Toro 98-7692

BOLT

$1.49

$

In Stock, Qty 5

0

70

Toro 125-9063

BOLT-SEMS

$1.99

$

Usually ships in 3-6 days

0

80

Toro 110-3822

PIPE-RETURN, WATER

$42.99

$

In Stock, only 2 left!

0

90

Toro 125-9078

CLAMP-HOSE

$6.49

$

Usually ships in 3-6 days

0

100

Toro 98-7778

THERMOSTAT ASM

$93.99

$

In Stock, only 2 left!

0

110

Toro 112-2512

COVER-THERMOSTAT

$169.99

$

Usually ships in 3-6 days

0

115

Toro 105-3747

PLUG

$5.99

$

Usually ships in 3-6 days

0

116

Toro 99-3583

GASKET

$3.49

$

Usually ships in 3-6 days

0

120

Toro 105-3748

GASKET-THERMOSTAT

$6.99

$

In Stock, only 3 left!

0

130

Toro 98-7777

BOLT

$2.49

$

Usually ships in 3-6 days

0
