22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 402000000 - 404356213) Loader Hydraulic Assembly Parts Diagram

Dingo Compact Utility Loader

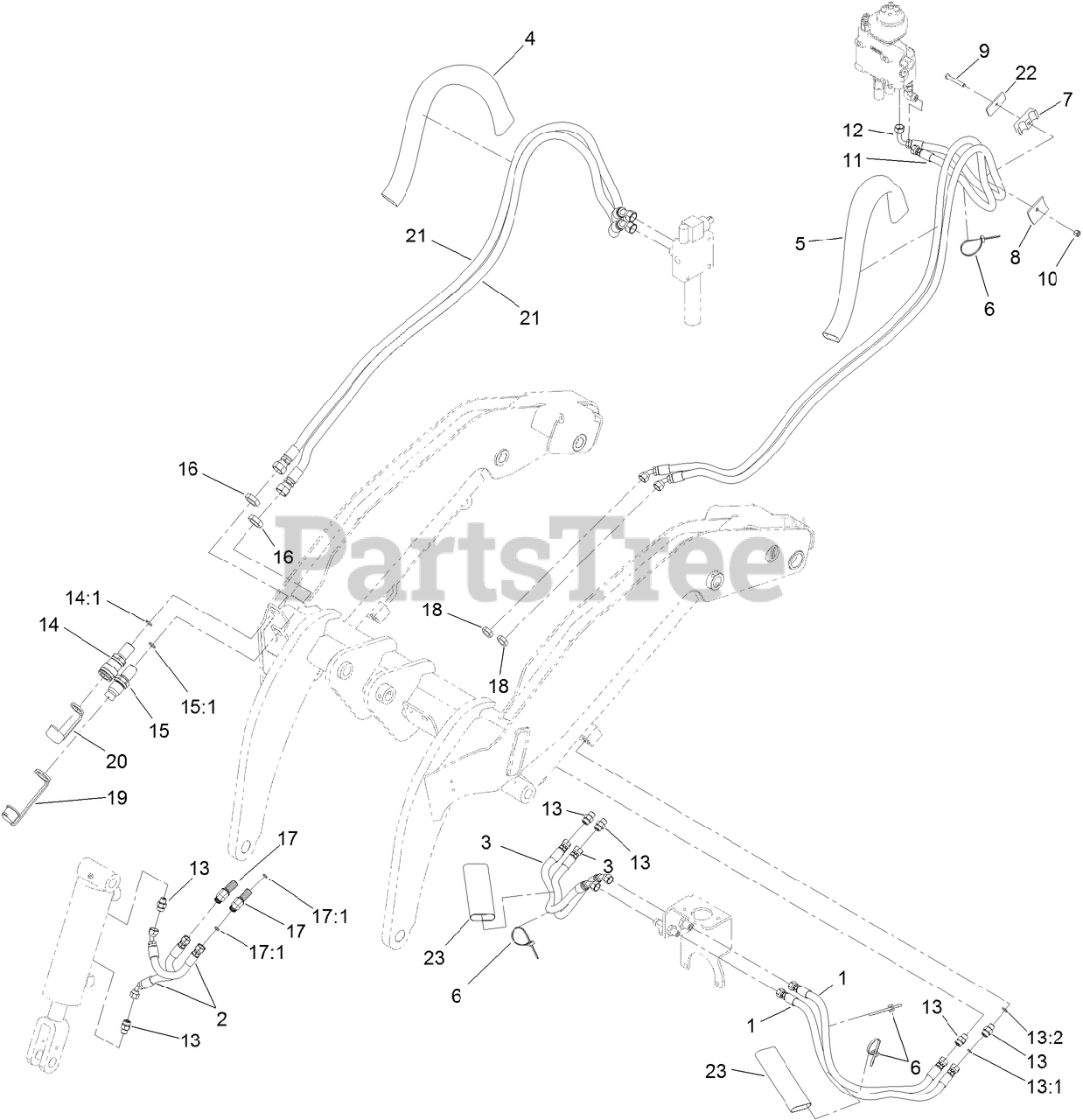

Loader Hydraulic Assembly Parts Diagram

  • Title

1

Toro 133-8570

HYD HOSE ASM

$123.99

$

Usually ships in 3-6 days

0

2

Toro 127-9637

HOSE-HYD

$114.99

$

Usually ships in 3-6 days

0

3

Toro 133-8569

HYD HOSE ASM

$123.99

$

Usually ships in 3-6 days

0

4

Toro 130-7718

SLEEVE-PROTECTIVE

$32.99

$

Usually ships in 3-6 days

0

5

Toro 100-6128

SLEEVE-PROTECTIVE

$45.99

$

Usually ships in 3-6 days

0

6

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

7

Toro 94-8105

CLAMP-TUBE

$7.99

$

In Stock, only 2 left!

0

8

Toro 130-5221

PLATE-HOLDDOWN, HOSE

$9.49

$

In Stock, only 2 left!

0

9

Toro 9114524

BOLT-TAP, HH
(Superseded to 139-1728)

$1.49

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 127-9633

HOSE-HYD

$257.99

$

Usually ships in 3-6 days

0

12

Toro 130-7598

HOSE-HYD

$257.99

$

Usually ships in 3-6 days

0

13

Toro 340-2

FITTING-STRAIGHT

$13.99

$

In Stock, only 2 left!

0

13:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

13:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 15

0

14

Toro 105-8394

BULKHEAD COUPLER ASM

$338.99

$

In Stock, only 1 left!

0

14:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

15

Toro 105-8395

BULKHEAD NIPPLE ASM

$270.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

15:2

Toro 100-6120

SEAL KIT

Note: Not illustrated

$117.99

$

In Stock, only 2 left!

0

16

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

In Stock, only 2 left!

0

17

Toro 340-69

ELBOW-BULKHEAD, 45 DEG

$50.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

18

Toro 340-70

NUT-LOCK

$2.99

$

Usually ships in 3-6 days

0

19

Toro 100-8815

CAP-DUST, NIPPLE

$15.99

$

In Stock, only 2 left!

0

20

Toro 100-8816

CAP-DUST, COUPLER

$17.99

$

In Stock, only 2 left!

0

21

Toro 127-9630

HOSE-HYD

$243.99

$

Usually ships in 3-6 days

0

22

Toro 131-9152

PLATE-CLAMP, HOSE

$14.99

$

In Stock, only 2 left!

0

23

Toro 133-8568

SLEEVE-PROTECTIVE

$12.99

$

Usually ships in 3-6 days

0
