22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 408000000 - 408833892) Alternator and Pulley Assembly Parts Diagram

Dingo Compact Utility Loader

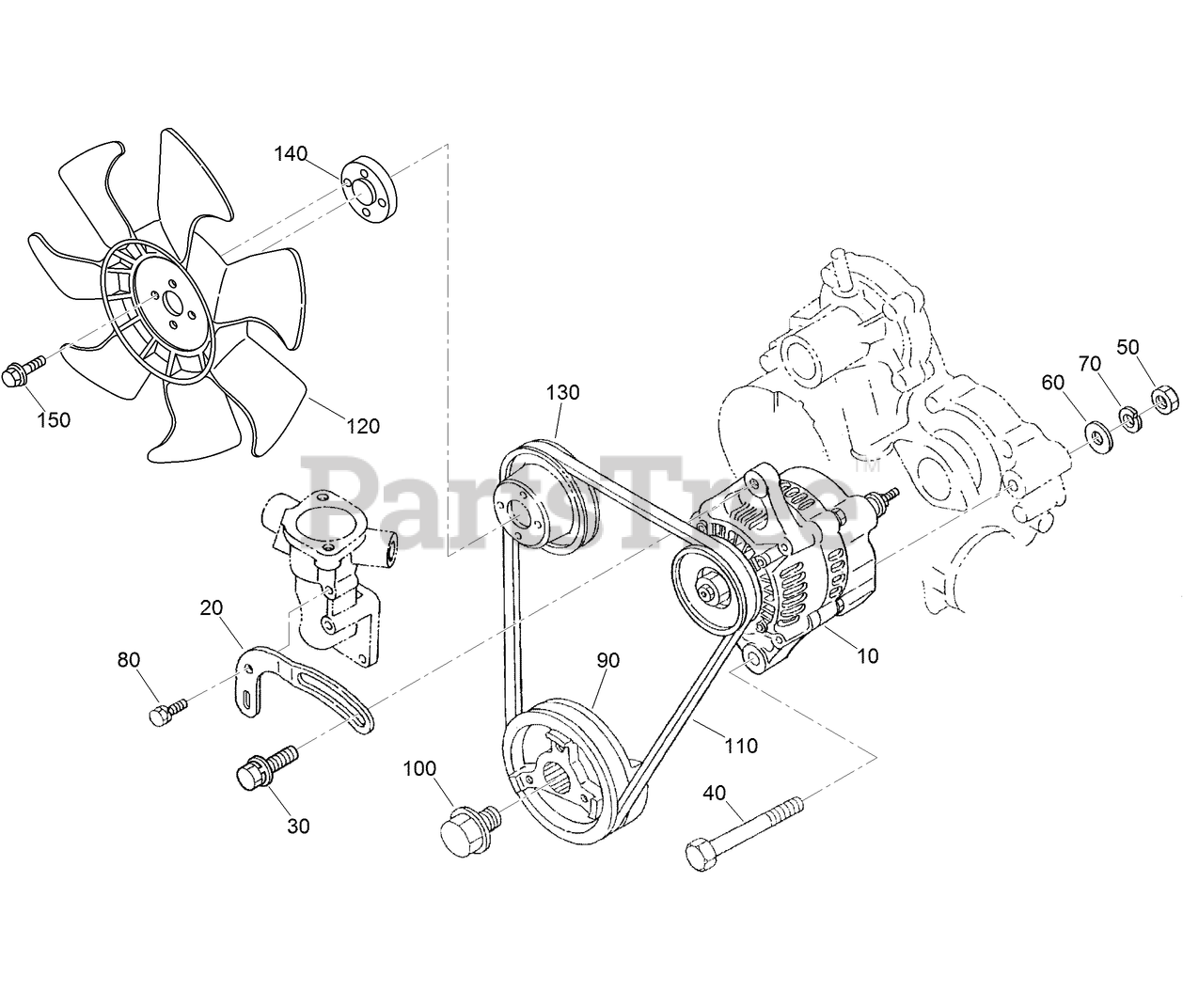

Alternator and Pulley Assembly Parts Diagram

  • Title

10

Toro 131-6557

ALTERNATOR ASM

$668.99

$

Usually ships in 3-6 days

0

20

Toro 112-7047

STAY-DYNAMO

$23.99

$

Usually ships in 3-6 days

0

30

Toro 108-7088

BOLT

$1.99

$

Usually ships in 3-6 days

0

40

Toro 98-9360

BOLT

$3.99

$

Usually ships in 3-6 days

0

50

Toro 98-7737

See Supercession: 99-7526
(Superseded to 99-7526)

$1.99

$

Usually ships in 3-6 days

0

60

Toro 98-9366

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

70

Toro 99-7527

WASHER-SPRING

$1.49

$

Usually ships in 3-6 days

0

80

Toro 98-7692

BOLT

$1.49

$

In Stock, Qty 5

0

90

Toro 117-8830

PULLEY-DRIVE, FAN

$208.99

$

Usually ships in 3-6 days

0

100

Toro 98-9585

BOLT

$24.99

$

Usually ships in 3-6 days

0

110

Toro 98-9676

V-BELT

$49.99

$

In Stock, only 2 left!

0

120

Toro 104-4246

FAN-ENGINE

$245.99

$

Usually ships in 3-6 days

0

130

Toro 98-9584

PULLEY-FAN

$143.99

$

Usually ships in 3-6 days

0

140

Toro 104-4247

See Supercession: 108-2872
(Superseded to 108-2872)

$34.99

$

Usually ships in 3-6 days

0

150

Toro 108-2873

BOLT-FLANGE

$4.99

$

Usually ships in 3-6 days

0
