22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 408000000 - 408833892) Brake Assembly Parts Diagram

Dingo Compact Utility Loader

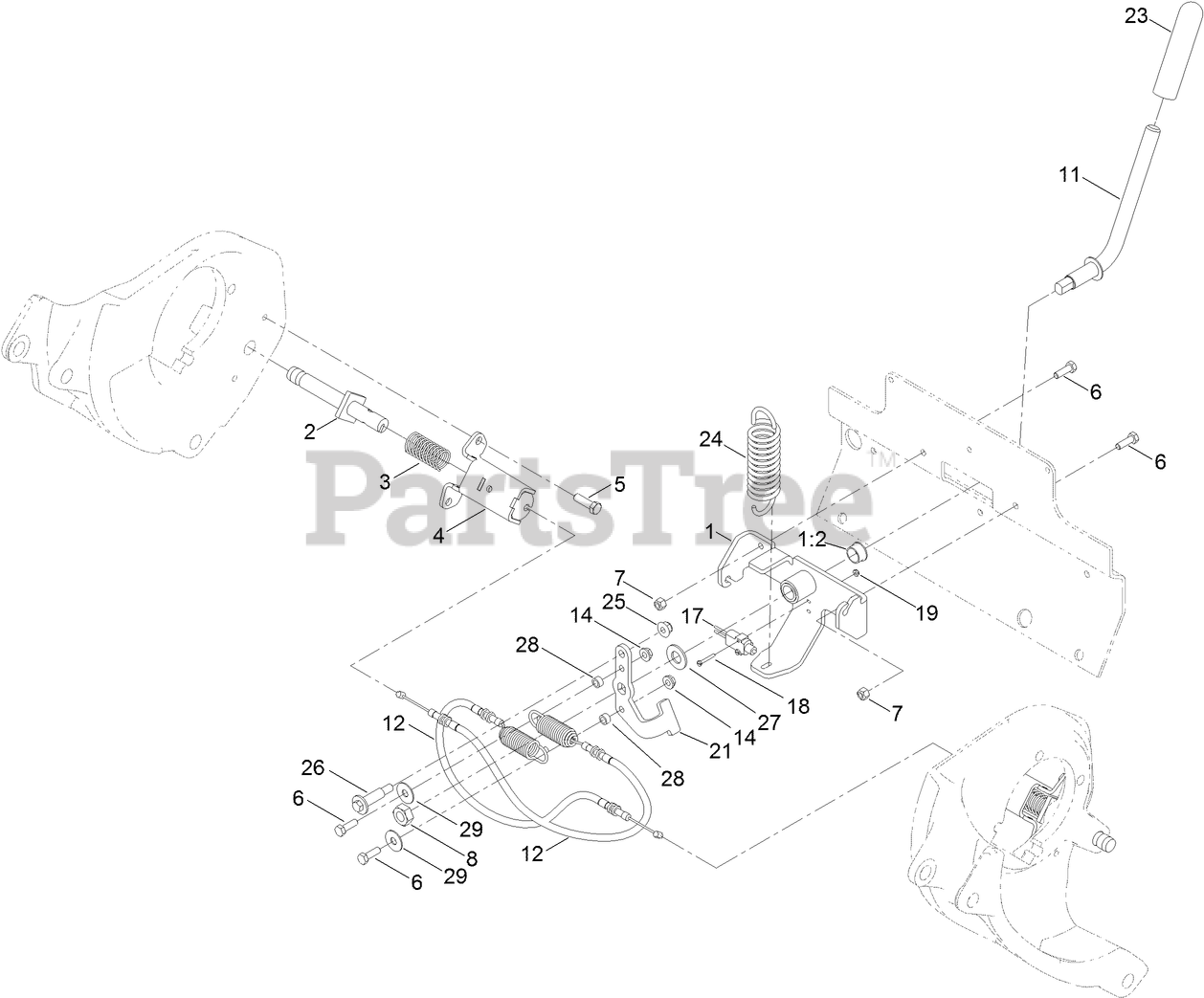

Brake Assembly Parts Diagram

  • Title

1

Toro 136-4798

BRACKET-BRAKE

$172.99

$

Usually ships in 3-6 days

0

1:2

Toro 256-252

BEARING-FLANGE

$7.49

$

Usually ships in 3-6 days

0

2

Toro 137-4617

ROD-BRAKE

$78.99

$

Usually ships in 3-6 days

0

3

Toro 125-0344

SPRING-COMPRESSION

$18.99

$

Usually ships in 3-6 days

0

4

Toro 137-4648-03

MOUNT-BRAKE

$

$

Not available

5

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 3296-33

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

11

Toro 133-0232

LEVER-BRAKE

$150.99

$

Usually ships in 3-6 days

0

12

Toro 136-4789

CABLE-BRAKE

$82.99

$

In Stock, only 1 left!

0

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 95-8900

SWITCH

$111.99

$

In Stock, only 2 left!

0

18

Toro 32105-9

SCREW

$1.49

$

In Stock, Qty 11

0

19

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

21

Toro 138-0205-0P

PLATE-BRAKE LINKAGE

$30.99

$

Usually ships in 3-6 days

0

23

Toro 110-1037

GRIP-HANDLE

$22.99

$

Usually ships in 3-6 days

0

24

Toro 136-4787

SPRING-EXT

$16.99

$

Usually ships in 3-6 days

0

25

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 136-7198

BOLT-SHOULDER

$1.99

$

In Stock, Qty 8

0

27

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

28

Toro 85-9120

SPACER-PIVOT, TILT

$5.49

$

Usually ships in 3-6 days

0

29

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0
