22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 408000000 - 408833892) Gear Case Assembly Parts Diagram

Dingo Compact Utility Loader

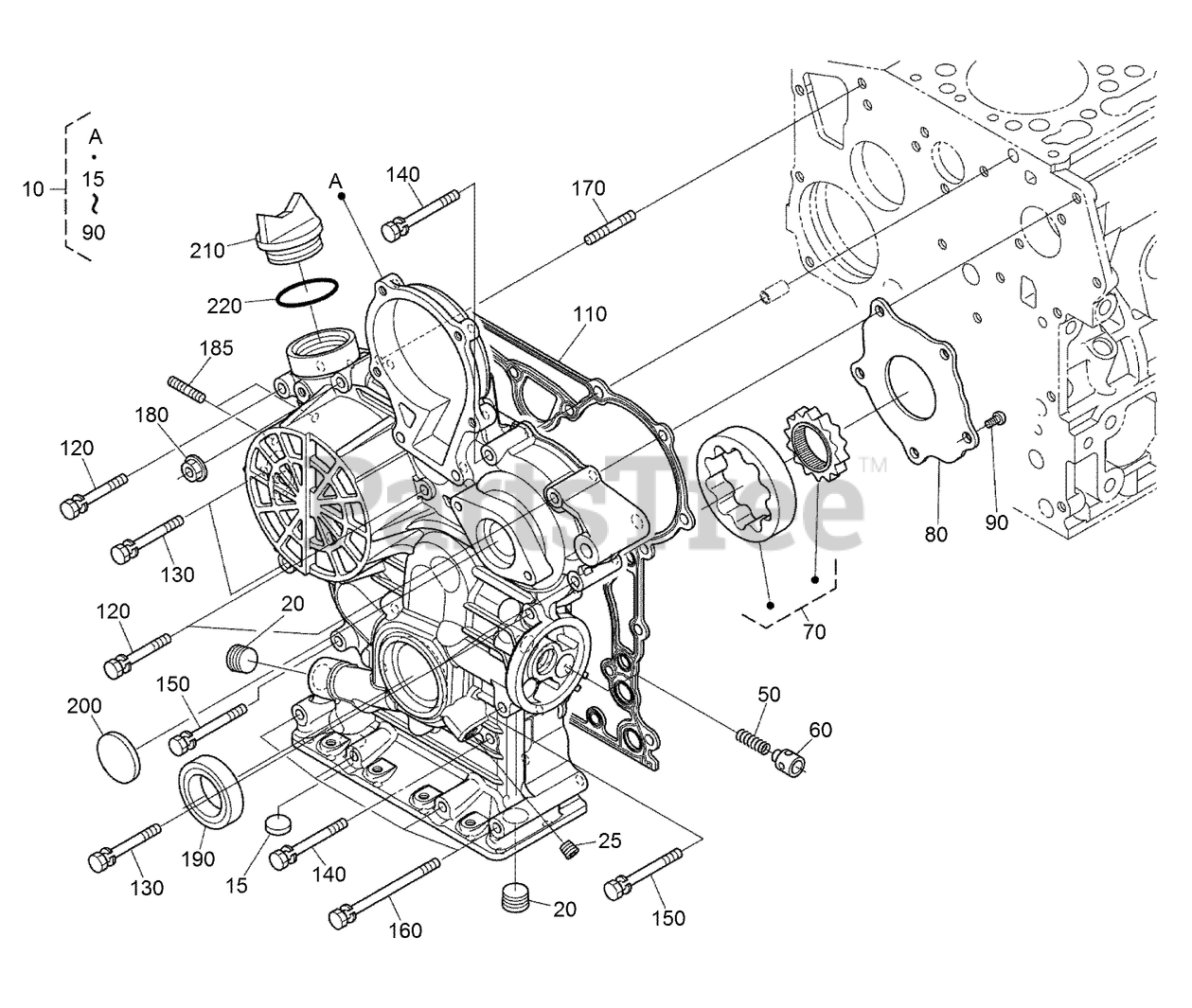

Gear Case Assembly Parts Diagram

  • Title

10

Toro 117-8803

GEAR CASE ASM

$1492.99

$

Usually ships in 3-6 days

0

15

Toro 117-8804

CAP-SEALING

$1.99

$

Usually ships in 3-6 days

0

20

Toro 127-0425

PLUG

$6.99

$

Usually ships in 3-6 days

0

25

Toro 98-7487

PLUG

$4.99

$

Usually ships in 3-6 days

0

50

Toro 130-1511

SPRING

$4.99

$

Usually ships in 3-6 days

0

60

Toro 130-1510

VALVE-RELIEF

$42.99

$

Usually ships in 3-6 days

0

70

Toro 130-1508

ROTOR ASM

$425.99

$

Usually ships in 3-6 days

0

80

Toro 130-1509

COVER-PUMP, OIL

$12.99

$

Usually ships in 3-6 days

0

90

Toro 130-1164

SCREW-BINDING

$0.99

$

Usually ships in 3-6 days

0

110

Toro 117-8835

GASKET-CASE, GEAR

$67.99

$

Usually ships in 3-6 days

0

120

Toro 107-9073

See Supercession: 100-1765
(Superseded to 100-1765)

$2.99

$

Usually ships in 3-6 days

0

130

Toro 125-9063

BOLT-SEMS

$1.99

$

Usually ships in 3-6 days

0

140

Toro 98-9356

BOLT

$3.49

$

Usually ships in 3-6 days

0

150

Toro 100-1766

BOLT

$4.99

$

Usually ships in 3-6 days

0

160

Toro 107-9090

BOLT

$4.49

$

Usually ships in 3-6 days

0

170

Toro 105-3709

STUD

$1.99

$

Usually ships in 3-6 days

0

180

Toro 100-2203

NUT-FLANGE

$1.99

$

Usually ships in 3-6 days

0

185

Toro 105-3710

STUD

$1.99

$

Usually ships in 3-6 days

0

190

Toro 119-8038

SEAL-OIL

$64.99

$

In Stock, only 2 left!

0

200

Toro 98-9641

See Supercession: 99-3515
(Superseded to 99-3515)

$14.99

$

Usually ships in 3-6 days

0

210

Toro 107-9075

PLUG-FILLER, OIL

$10.99

$

In Stock, only 3 left!

0

220

Toro 99-3446

O-RING

$10.99

$

In Stock, only 1 left!

0
