22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 408000000 - 408833892) Hood Assembly Parts Diagram

Dingo Compact Utility Loader

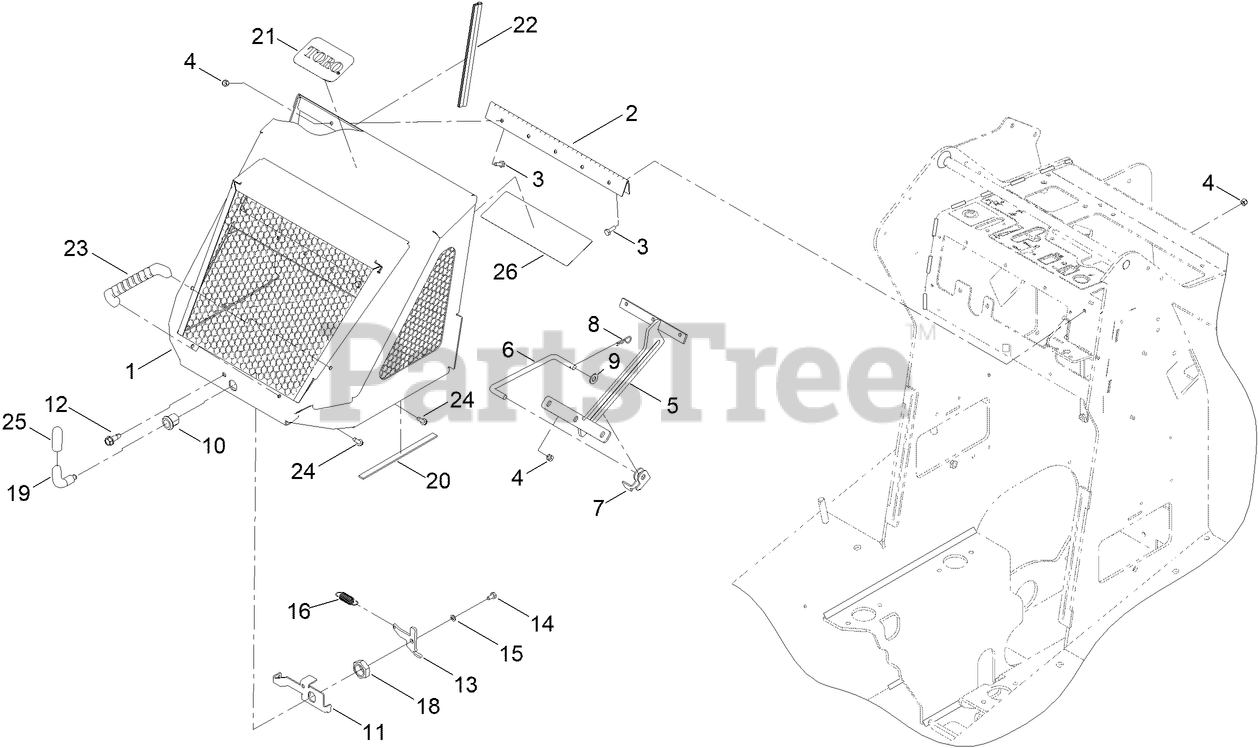

Hood Assembly Parts Diagram

  • Title

1

Toro 130-5298-03

ENGINE HOOD ASM

$751.99

$

Usually ships in 3-6 days

0

2

Toro 100-1284

HINGE-HOOD

$90.99

$

In Stock, only 2 left!

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 130-5228-03

BRACKET-PROP, HOOD

$79.99

$

Usually ships in 3-6 days

0

6

Toro 108-6357

ROD-SUPPORT, HOOD

$79.99

$

In Stock, only 2 left!

0

7

Toro 115-0714

BRACKET-LATCH, LOCKING

$28.99

$

In Stock, only 1 left!

0

8

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 106-9335

HOUSING-LATCH

$74.99

$

Usually ships in 3-6 days

0

11

Toro 130-5232-03

BRACKET-LATCH

$20.99

$

Usually ships in 3-6 days

0

12

Toro 105-6245

SCREW-TAPPING

$6.99

$

Usually ships in 3-6 days

0

13

Toro 130-5233

CAM-HOOKED

$17.99

$

Usually ships in 3-6 days

0

14

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

15

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 104-0869

SPRING

$14.99

$

Usually ships in 3-6 days

0

18

Toro 103-8496

NUT-JAM

$5.99

$

Usually ships in 3-6 days

0

19

Toro 108-5639

HANDLE-LATCH

$65.99

$

Usually ships in 3-6 days

0

20

Toro 132-7282

STRIP-FOAM

$9.49

$

Usually ships in 3-6 days

0

21

Toro 117-0871

DECAL

$37.99

$

In Stock, only 2 left!

0

22

Toro 130-5345

TRIM-SEAL, BULB

$9.99

$

Usually ships in 3-6 days

0

23

Toro 65-5100

HANDLE-DOOR

$10.99

$

In Stock, Qty 5

0

24

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

25

Toro 133-0206

GRIP-LEVER, HOOD

$3.99

$

Usually ships in 3-6 days

0

26

Toro 139-8822

DECAL-SERVICE TX1000 DE

$

$

Currently unavailable

26

Toro 139-8826

DECAL-SERVICE TX1000 ES

$

$

Currently unavailable

26

Toro 139-8831

DECAL-SERVICE TX1000 FR

$

$

Currently unavailable

26

Toro 139-8836

DECAL-SERVICE TX1000 IT

$

$

Currently unavailable

26

Toro 139-8841

DECAL-SERVICE TX1000 NE

$

$

Currently unavailable

26

Toro 139-8846

DECAL-SERVICE TX1000 PL

$

$

Currently unavailable

26

Toro 139-8851

DECAL-SERVICE TX1000 RU

$

$

Currently unavailable

26

Toro 139-8856

DECAL-SERVICE TX1000 SK

$

$

Currently unavailable

26

Toro 140-3619

DECAL, SERVICE TX1000

$13.99

$

Usually ships in 3-6 days

0
