22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 408000000 - 408833892) Piston and Crankshaft Assembly Parts Diagram

Dingo Compact Utility Loader

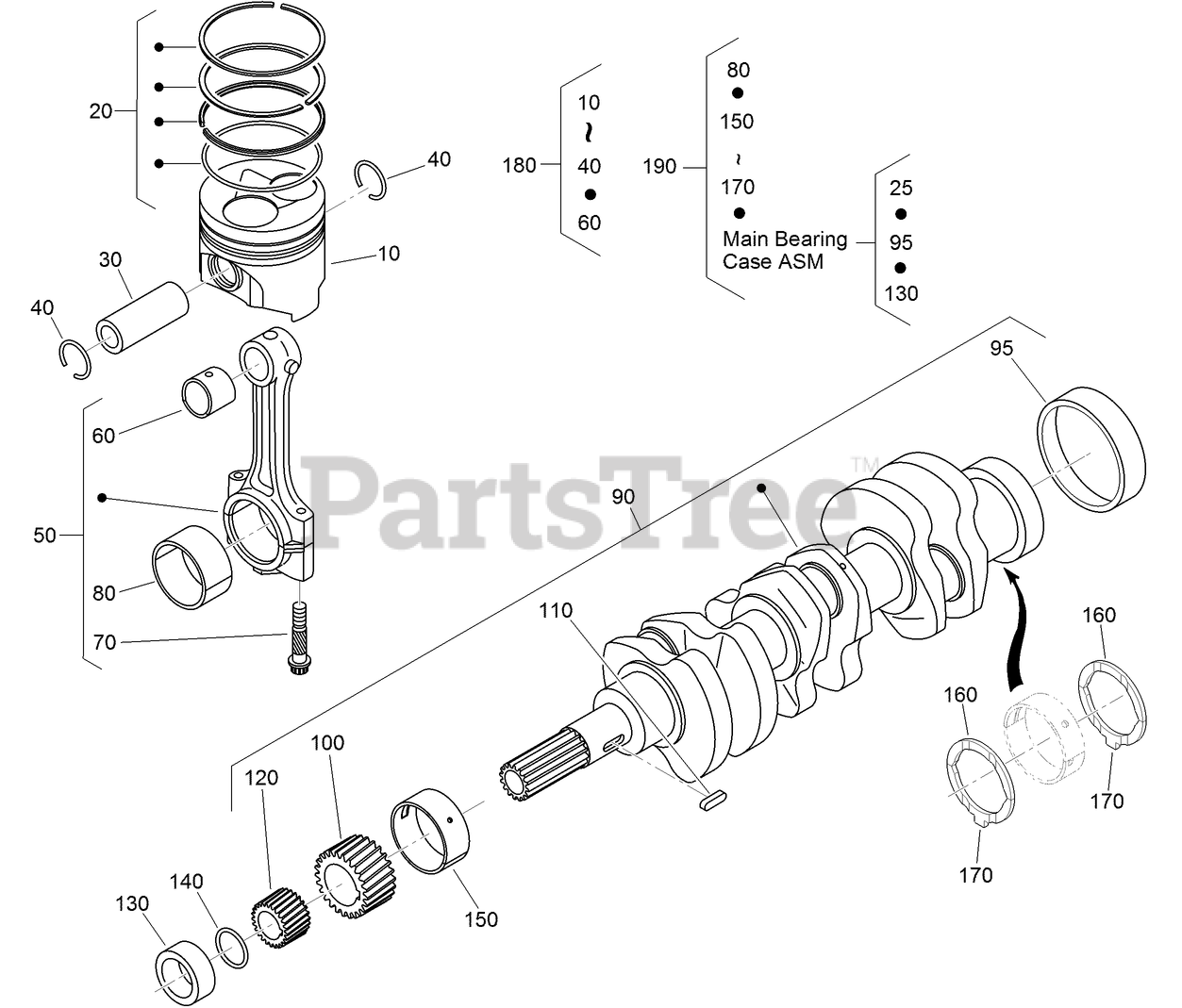

Piston and Crankshaft Assembly Parts Diagram

  • Title

10

Toro 130-1546

PISTON (STD)

$432.99

$

Usually ships in 3-6 days

0

10

Toro 130-1549

PISTON (+0.50MM)

$368.99

$

Usually ships in 3-6 days

0

20

Toro 130-1506

PISTON RING ASM (STD)

$328.99

$

Usually ships in 3-6 days

0

20

Toro 130-1507

PISTON RING ASM (+0.50MM)

$331.99

$

In Stock, only 3 left!

0

30

Toro 98-9513

PIN-PISTON

$21.99

$

Usually ships in 3-6 days

0

40

Toro 98-9514

CIRCLIP-PIN, PISTON

$4.49

$

Usually ships in 3-6 days

0

50

Toro 117-7586

CONNECTING ROD ASM

$874.99

$

Usually ships in 3-6 days

0

60

Toro 115-3014

BUSHING-PIN, PISTON

$31.99

$

Usually ships in 3-6 days

0

70

Toro 98-9517

BOLT-ROD, CONNECTING

$16.99

$

Usually ships in 3-6 days

0

80

Toro 98-9553

BEARING-ROD (STD)

$84.99

$

Usually ships in 3-6 days

0

80

Toro 98-9519

BEARING-ROD (-0.2MM)

$69.99

$

Usually ships in 3-6 days

0

80

Toro 117-7588

METAL-CRANKPIN (-0.4MM)

$78.99

$

Usually ships in 3-6 days

0

90

Toro 132-4944

CRANKSHAFT ASM

$6500.99

$

Usually ships in 3-6 days

0

95

Toro 98-9522

SLEEVE-CRANKSHAFT

$185.99

$

Usually ships in 3-6 days

0

100

Toro 117-7561

GEAR-CRANKSHAFT

$139.99

$

Usually ships in 3-6 days

0

110

Toro 98-9666

KEY

$5.99

$

Usually ships in 3-6 days

0

120

Toro 127-0445

GEAR-DRIVE, OIL PUMP

$23.99

$

Usually ships in 3-6 days

0

130

Toro 127-0444

COLLAR-CRANKSHAFT

$68.99

$

Usually ships in 3-6 days

0

140

Toro 105-3783

O-RING

$10.99

$

Usually ships in 3-6 days

0

150

Toro 117-8818

METAL-CRANKSHAFT

$65.99

$

Usually ships in 3-6 days

0

150

Toro 117-8819

METAL-CRANKSHAFT

$67.99

$

Usually ships in 3-6 days

0

150

Toro 117-8820

METAL-CRANKSHAFT

$49.99

$

Usually ships in 3-6 days

0

160

Toro 98-9413

BEARING-THRUST (STD)

$26.99

$

Usually ships in 3-6 days

0

160

Toro 127-0416

METAL-SIDE (+0.2MM)

$33.99

$

Usually ships in 3-6 days

0

160

Toro 127-0417

METAL-SIDE (+0.40MM)

$20.99

$

Usually ships in 3-6 days

0

170

Toro 98-9688

BEARING-THRUST (STD)

$26.99

$

Usually ships in 3-6 days

0

170

Toro 127-0437

METAL-SIDE (+0.2MM)

$29.99

$

Usually ships in 3-6 days

0

170

Toro 127-0438

METAL-SIDE (+0.40MM)

$20.99

$

Usually ships in 3-6 days

0

180

Toro 130-1547

PISTON KIT

$836.99

$

Usually ships in 3-6 days

0

180

Toro 130-1548

PISTON KIT

$710.99

$

Usually ships in 3-6 days

0

190

Toro 117-8823

ENGINE METAL KIT

$766.99

$

Usually ships in 3-6 days

0

190

Toro 117-8824

ENGINE METAL KIT

$521.99

$

Usually ships in 3-6 days

0

190

Toro 117-8825

ENGINE METAL KIT

$521.99

$

Usually ships in 3-6 days

0
