22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 408000000 - 408833892) Platform and Cushion Assembly Parts Diagram

Dingo Compact Utility Loader

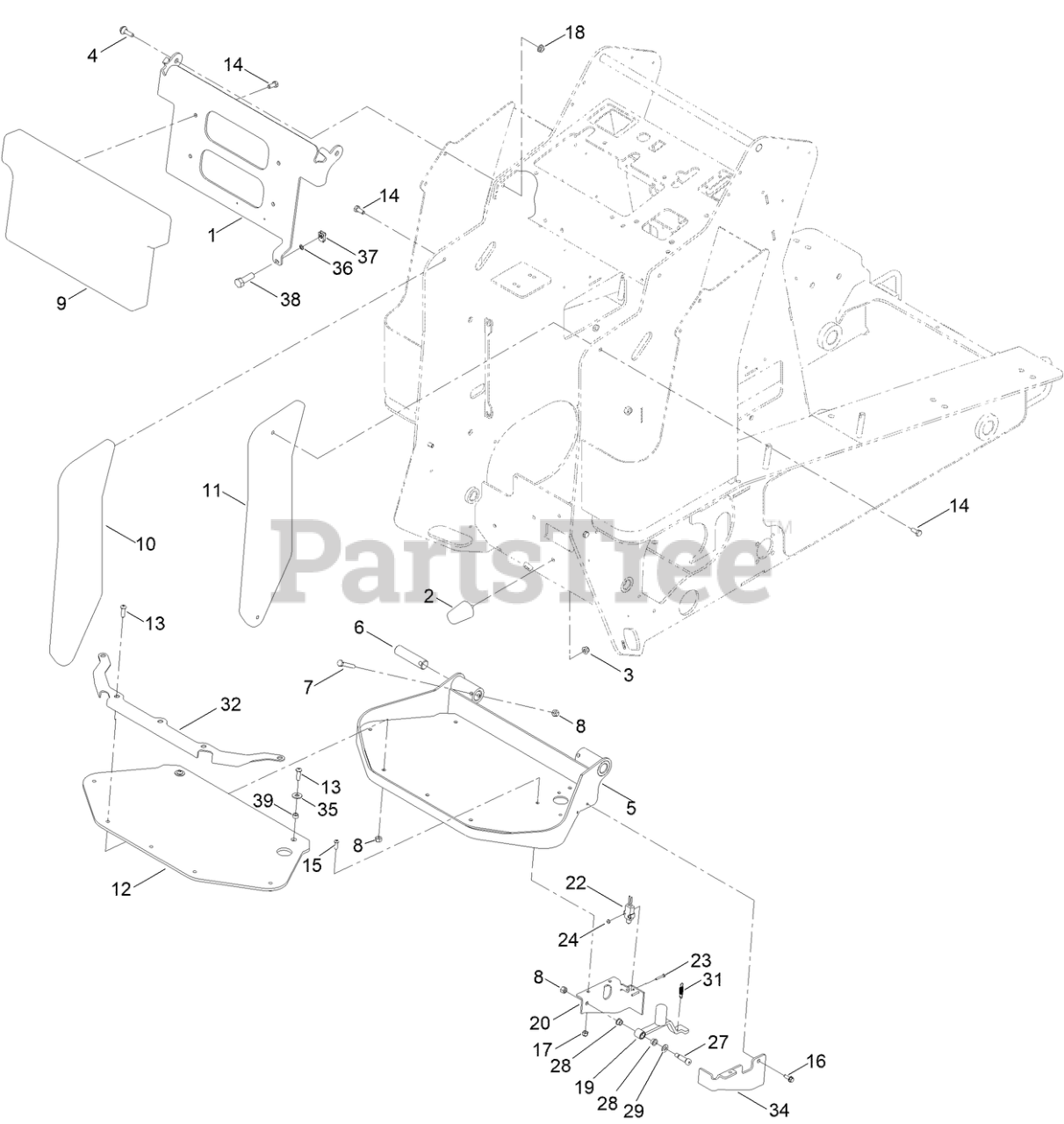

Platform and Cushion Assembly Parts Diagram

  • Title

1

Toro 132-6026-03

HINGE-PAD

$176.99

$

Usually ships in 3-6 days

0

2

Toro 110-5070

BUMPER

$15.99

$

In Stock, only 2 left!

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 108-3744

SCREW-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

5

Toro 131-9301

PLATFORM

$704.99

$

Usually ships in 3-6 days

0

6

Toro 125-3749

PIN-PIVOT

$40.99

$

Usually ships in 3-6 days

0

7

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

8

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 130-1042

CUSHION-PAD

$336.99

$

Usually ships in 3-6 days

0

10

Toro 130-1043

CUSHION-PAD

$199.99

$

In Stock, only 1 left!

0

11

Toro 130-1044

CUSHION-PAD

$199.99

$

Usually ships in 3-6 days

0

12

Toro 130-1054

PAD-FOOT

$103.99

$

Usually ships in 3-6 days

0

13

Toro 109-4872

SCREW-HSBH

$1.99

$

In Stock, only 1 left!

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 17

0

16

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.99

$

In Stock, Qty 5

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

18

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 130-5293

LEVER-SWITCH, AUXILIARY

$143.99

$

Usually ships in 3-6 days

0

20

Toro 130-5310-03

BRACKET-SWITCH, LH

$33.99

$

Usually ships in 3-6 days

0

22

Toro 95-8900

SWITCH

$111.99

$

In Stock, only 2 left!

0

23

Toro 32105-9

SCREW

$1.49

$

In Stock, Qty 11

0

24

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

27

Toro 114-8629

BOLT-SHOULDER

$21.99

$

In Stock, only 2 left!

0

28

Toro 1-603735

BUSHING-FLANGED

$6.99

$

In Stock, only 2 left!

0

29

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

31

Toro 59-3660

SPRING

$15.99

$

In Stock, only 1 left!

0

32

Toro 130-5313-03

PLATE-CLAMP
(Superseded to 144-7371-03)

$38.99

$

Usually ships in 3-6 days

0

34

Toro 130-5311-03

BRACKET-SWITCH, RH

$27.99

$

Usually ships in 3-6 days

0

35

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

36

Toro 1-803037

NUT-RETAINING

$1.99

$

Usually ships in 3-6 days

0

37

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

38

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

39

Toro 85-9120

SPACER-PIVOT, TILT

$5.49

$

Usually ships in 3-6 days

0
