22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 408000000 - 408833892) Radiator and Air Cleaner Assembly Parts Diagram

Dingo Compact Utility Loader

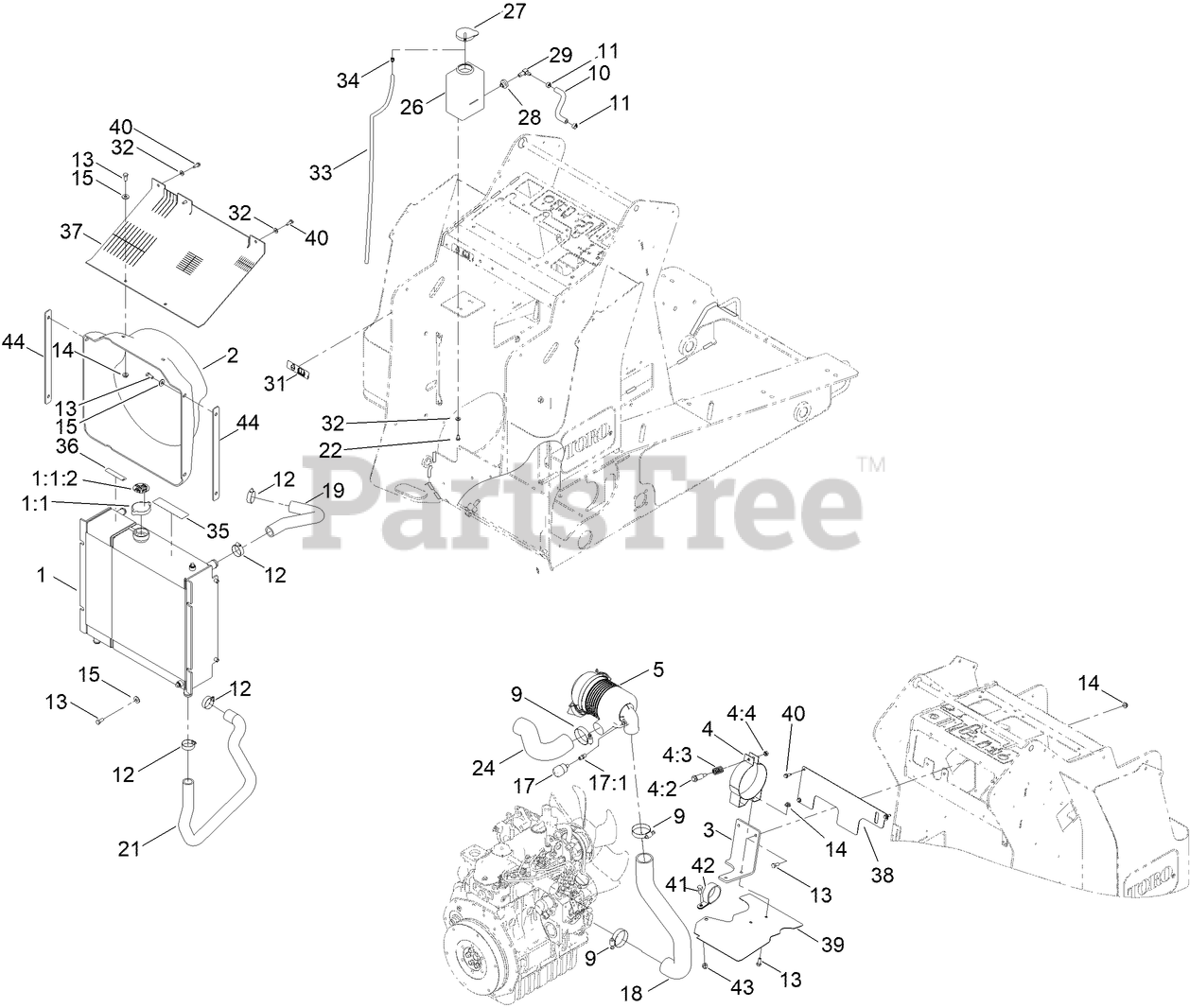

Radiator and Air Cleaner Assembly Parts Diagram

  • Title

1

Toro 131-8001

COOLING ASM
(Superseded to 144-7364)

$2322.99

$

Usually ships in 3-6 days

0

1:1

Toro 119-1430

RADIATOR CAP ASM
(Superseded to 117-5138)

$42.99

$

In Stock, only 4 left!

0

1:1:2

Toro 117-3276

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

2

Toro 131-9256

SHROUD-FAN

$240.99

$

Usually ships in 3-6 days

0

3

Toro 125-0377-03

BRACKET

$38.99

$

Usually ships in 3-6 days

0

4

Toro 93-2191

AIR CLEANER MOUNTING BAND ASM

$75.99

$

Usually ships in 3-6 days

0

4:2

Toro 94-3653

BOLT

$23.99

$

Usually ships in 3-6 days

0

4:3

Toro 94-3654

SPRING

$11.99

$

Usually ships in 3-6 days

0

4:4

Toro 48-9510

NUT
(Superseded to 33024-00)

$1.49

$

Usually ships in 3-6 days

0

5

Toro 93-2190

AIR CLEANER ASM

$280.99

$

Usually ships in 3-6 days

0

9

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

10

Toro 112-2386

HOSE-FUEL

$12.99

$

Usually ships in 3-6 days

0

11

Toro 92-2379

CLAMP-HOSE

$0.99

$

In Stock, Qty 9

0

12

Toro 2412-34

CLAMP-HOSE

$2.99

$

In Stock, only 2 left!

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 104-3563

INDICATOR

$93.99

$

Usually ships in 3-6 days

0

17:1

Toro 94-1416

ADAPTER-INDICATOR

$15.99

$

Usually ships in 3-6 days

0

18

Toro 131-9173

HOSE-INTAKE, ENGINE

$84.99

$

In Stock, only 1 left!

0

19

Toro 136-4552

HOSE-RADIATOR

$23.99

$

Usually ships in 3-6 days

0

21

Toro 131-9153

HOSE-RADIATOR, LOWER

$135.99

$

Usually ships in 3-6 days

0

22

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

24

Toro 130-0952

HOSE-AIR, INLET

$49.99

$

Usually ships in 3-6 days

0

26

Toro 1-643163

TANK-OVERFLOW

$109.99

$

Usually ships in 3-6 days

0

27

Toro 1-643164

CAP-TANK, OVERFLOW

$22.99

$

In Stock, only 2 left!

0

28

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

29

Toro 46-6550

FITTING-ELBOW, 90 DEG

$45.99

$

Usually ships in 3-6 days

0

31

Toro 115-4865

DECAL-RADIATOR FILL

$13.99

$

Usually ships in 3-6 days

0

32

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 108-6344

HOSE-LP

$19.99

$

Usually ships in 3-6 days

0

34

Toro 2412-80

CLAMP-HOSE
(Superseded to 2412-146)

$1.99

$

In Stock, Qty 6

0

35

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

36

Toro 93-6681

DECAL-WARNING, FAN

$15.99

$

Usually ships in 3-6 days

0

37

Toro 131-9214

GUARD-AIR

$64.99

$

Usually ships in 3-6 days

0

38

Toro 131-9215

COVER-AIR

$16.99

$

Usually ships in 3-6 days

0

39

Toro 131-8013

BAFFLE-HEAT

$63.99

$

Usually ships in 3-6 days

0

40

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.99

$

In Stock, Qty 5

0

41

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

42

Toro 2412-107

CLAMP-R

$3.99

$

Usually ships in 3-6 days

0

43

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

44

Toro 138-0751

PLATE-SHIM

$8.99

$

Usually ships in 3-6 days

0
