22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 408000000 - 408833892) RH Track Assembly No. 138-0795 Parts Diagram

Dingo Compact Utility Loader

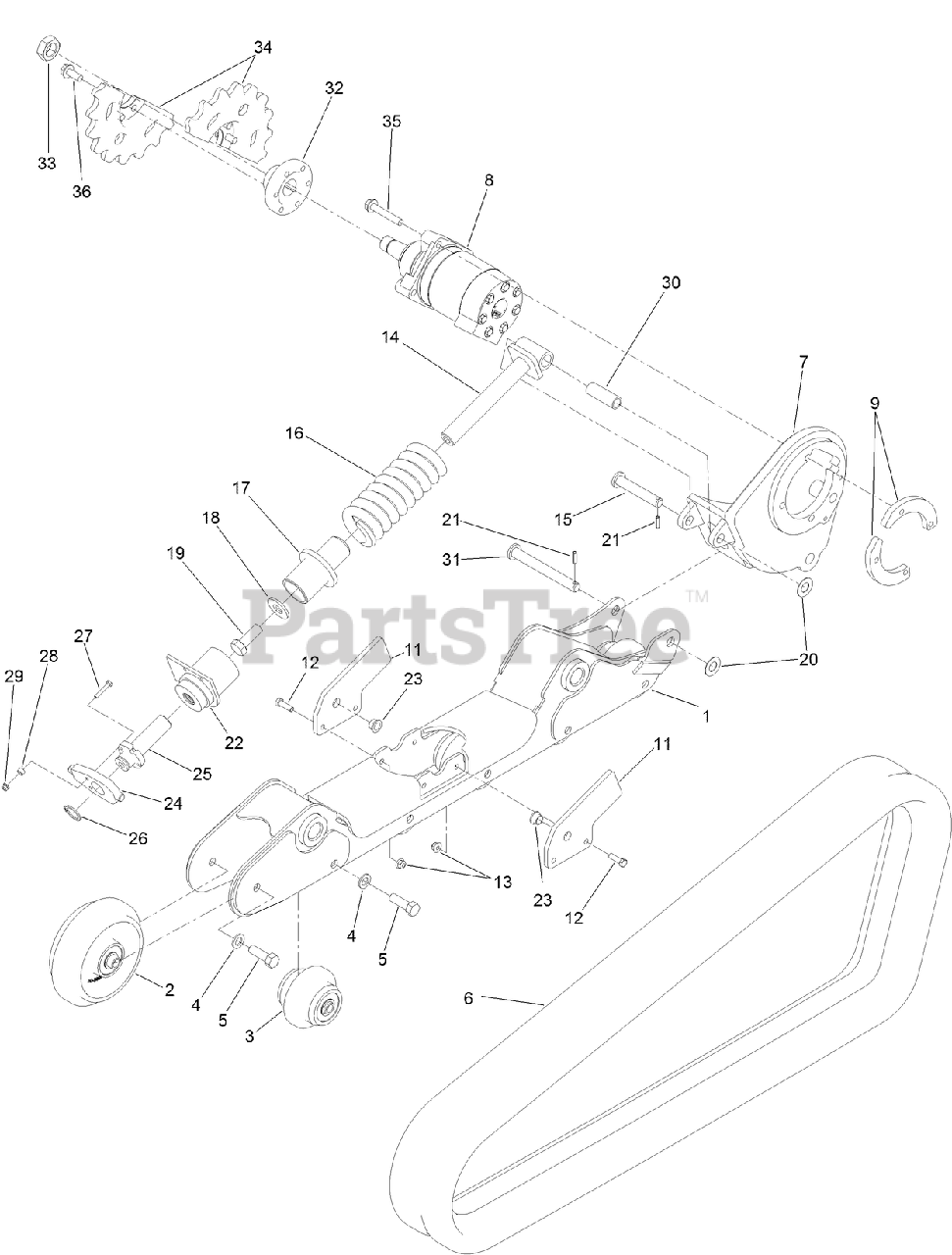

RH Track Assembly No. 138-0795 Parts Diagram

  • Title

1

Toro 138-4657

FRAME-TRACK, RH

$3224.99

$

Usually ships in 3-6 days

0

2

Toro 137-8807

WHEEL-ASM TENSIONER

$920.99

$

Usually ships in 3-6 days

0

3

Toro 137-8808

WHEEL-ASM CAMSO

$574.99

$

Usually ships in 3-6 days

0

4

Toro 33098-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

5

Toro 111-3484

SCREW-HH

$

$

Currently unavailable

6

Toro 138-0186

TRACK-NARROW
(Superseded to 138-0804)

$1656.99

$

Usually ships in 3-6 days

0

7

Toro 137-4619

MOUNT-MOTOR, RH

$2548.99

$

Usually ships in 3-6 days

0

8

Toro 138-0778

MOTOR-HYD

$2295.99

$

Usually ships in 3-6 days

0

9

Toro 137-4614

PLATE-MOUNTING, WHEELMOTOR

$51.99

$

Usually ships in 3-6 days

0

11

Toro 137-4632

PLATE-EAR, INSIDE

$225.99

$

Usually ships in 3-6 days

0

12

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 138-0238

TENSIONER-SPRING

$455.99

$

Usually ships in 3-6 days

0

15

Toro 130-1057

PIN-TENSIONER

$31.99

$

In Stock, only 2 left!

0

16

Toro 138-0237

SPRING-COMPRESSION

$642.99

$

Usually ships in 3-6 days

0

17

Toro 138-0248

GUIDE-TENSIONER

$484.99

$

Usually ships in 3-6 days

0

18

Toro 99-2659

WASHER

$12.99

$

Usually ships in 3-6 days

0

19

Toro AU426-1232

BOLT

$9.99

$

Usually ships in 3-6 days

0

20

Toro 3256-39

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

21

Toro 32121-24

PIN-SPRING

$1.99

$

In Stock, only 4 left!

0

22

Toro 137-4650

HOUSING-TENSIONER, RH

$377.99

$

Usually ships in 3-6 days

0

23

Toro 65-8770

BUSHING-BELLCRANK

$7.49

$

In Stock, only 3 left!

0

24

Toro 138-4681

PLATE-PIVOT

$256.99

$

Usually ships in 3-6 days

0

25

Toro 138-0247

SCREW-TENSIONER

$371.99

$

Usually ships in 3-6 days

0

26

Toro 32151-77

RING-RETAINING, EXTERNAL

$5.49

$

Usually ships in 3-6 days

0

27

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

28

Toro 98-4799

SPACER

$8.99

$

In Stock, Qty 13

0

29

Toro 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

0

30

Toro 127-9565

SPACER-PIVOT

$16.99

$

In Stock, only 2 left!

0

31

Toro 137-4518

PIN-PIVOT

$156.99

$

Usually ships in 3-6 days

0

32

Toro 137-4645

HUB-SPROCKET
(Superseded to 144-7351)

$270.99

$

Usually ships in 3-6 days

0

33

Toro 107-9319

NUT-HEX

$49.99

$

In Stock, only 2 left!

0

34

Toro 137-4643

SPROCKET-18 TOOTH

$

$

Not available

35

Toro 3234-40

SCREW-HF

$14.99

$

Usually ships in 3-6 days

0

36

Toro 137-4653

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0
