22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 408000000 - 408833892) Starter Component Assembly Parts Diagram

Dingo Compact Utility Loader

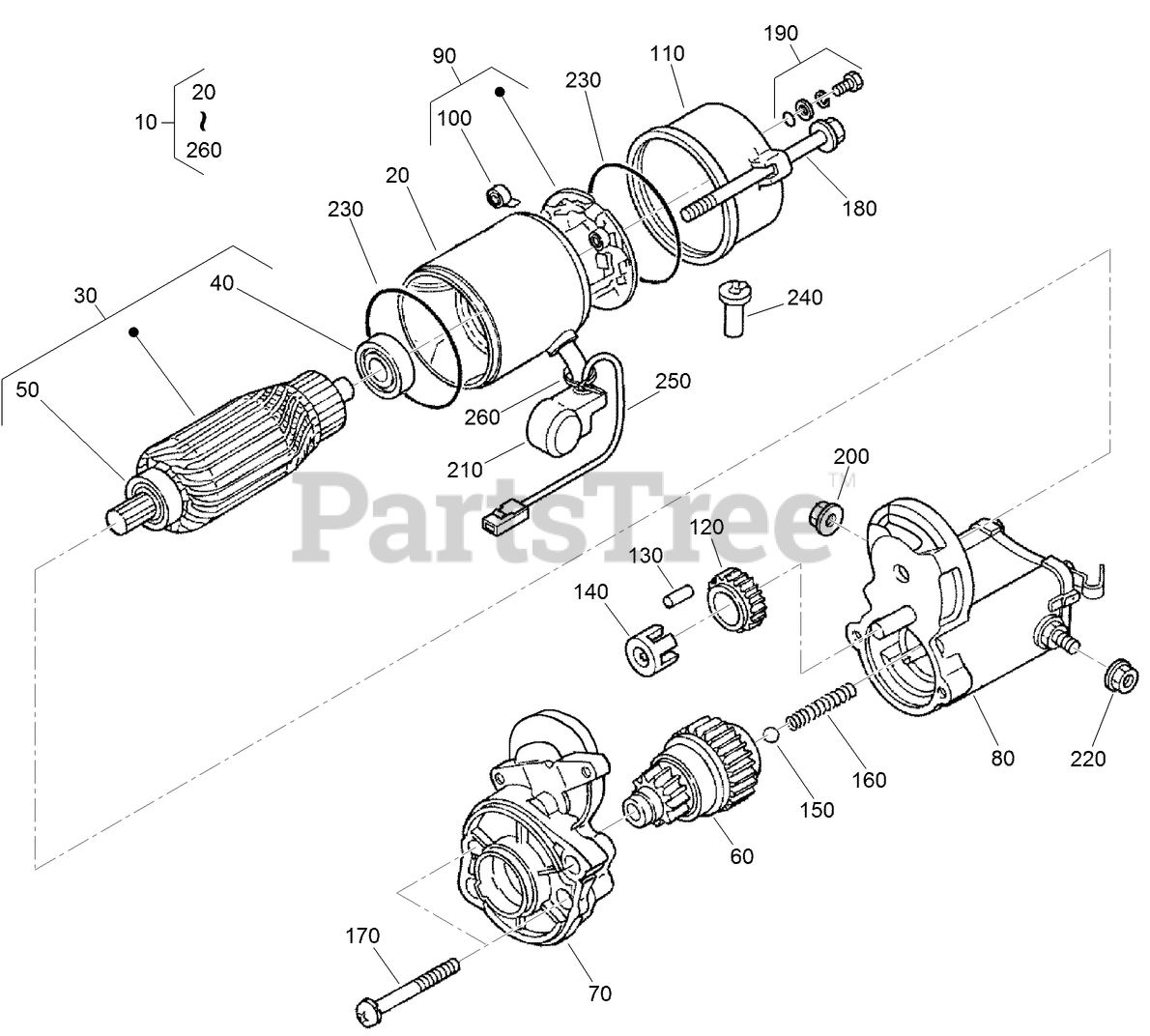

Starter Component Assembly Parts Diagram

  • Title

10

Toro 132-4948

STARTER

$1751.99

$

Usually ships in 3-6 days

0

20

Toro 132-4949

YOKE

$

$

Currently unavailable

30

Toro 132-4930

ARMATURE

$

$

Currently unavailable

40

Toro 98-7743

BEARING

$59.99

$

Usually ships in 3-6 days

0

50

Toro 98-7744

BEARING

$56.99

$

Usually ships in 3-6 days

0

60

Toro 132-4934

CLUTCH ASM

$

$

Currently unavailable

70

Toro 132-4933

HOUSING ASM

$

$

Currently unavailable

80

Toro 105-3746

MAGNETIC SWITCH ASM

$1100.99

$

Usually ships in 3-6 days

0

90

Toro 132-4932

HOLDER-BRUSH

$221.99

$

Usually ships in 3-6 days

0

100

Toro 132-4931

SPRING-BRUSH

$

$

Currently unavailable

110

Toro 132-4935

FRAME END ASM

$

$

Currently unavailable

120

Toro 98-7751

GEAR

$69.99

$

Usually ships in 3-6 days

0

130

Toro 98-7753

ROLLER

$1.99

$

Usually ships in 3-6 days

0

140

Toro 98-7752

RETAINER

$6.99

$

Usually ships in 3-6 days

0

150

Toro 98-7755

BALL

$0.99

$

Usually ships in 3-6 days

0

160

Toro 98-7754

SPRING

$7.99

$

Usually ships in 3-6 days

0

170

Toro 98-7756

BOLT

$4.49

$

Usually ships in 3-6 days

0

180

Toro 100-2210

BOLT-THROUGH

$5.99

$

Usually ships in 3-6 days

0

190

Toro 98-7758

BOLT ASM

$7.99

$

Usually ships in 3-6 days

0

200

Toro 99-8376

NUT-HEX

$11.99

$

Usually ships in 3-6 days

0

210

Toro 99-8375

COVER

$39.99

$

Usually ships in 3-6 days

0

220

Toro 99-8371

NUT-HEX

$5.99

$

Usually ships in 3-6 days

0

230

Toro 98-7757

O-RING

$39.99

$

Usually ships in 3-6 days

0

240

Toro 98-7759

PIPE-DRAIN

$46.99

$

Usually ships in 3-6 days

0

250

Toro 98-9711

CORD-SOLENOID, STOP

$19.99

$

Usually ships in 3-6 days

0

260

Toro 98-9712

BAND-COVER
(Superseded to 250-4)

$0.99

$

Usually ships in 3-6 days

0
