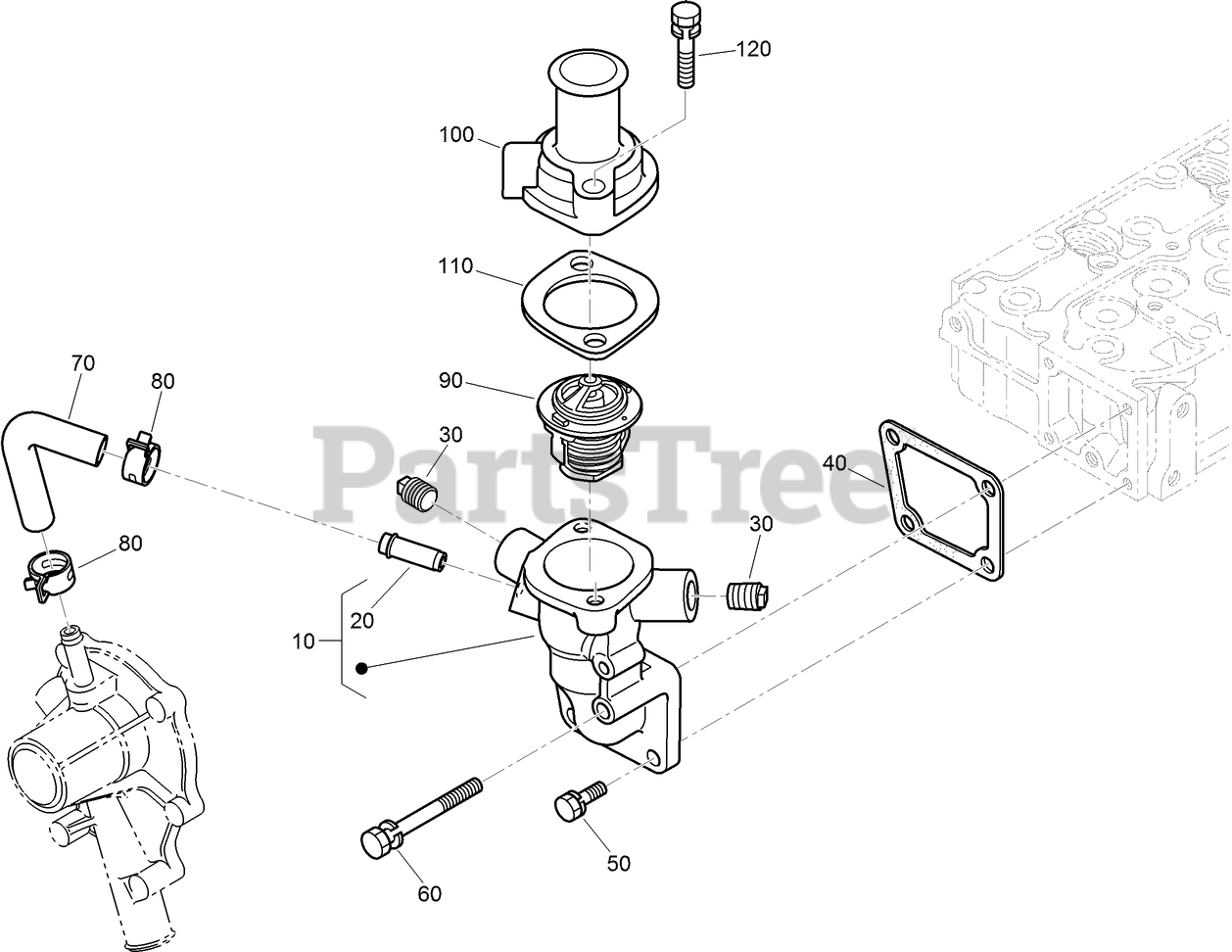

22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 408000000 - 408833892) Water Flange and Thermostat Assembly Parts Diagram
Dingo Compact Utility Loader
Water Flange and Thermostat Assembly Parts Diagram
Toro 132-4943
WATER FLANGE ASM
$282.99
$
Usually ships in 3-6 days
Toro 98-9580
PIPE-RETURN, WATER
$6.49
$
Usually ships in 3-6 days
Toro 110-3821
PLUG
$14.99
$
Usually ships in 3-6 days
Toro 98-9638
GASKET-FLANGE, WATER
$5.99
$
Usually ships in 3-6 days
Toro 98-7692
BOLT
$1.49
$
In Stock, Qty 5
Toro 98-9356
BOLT
$3.49
$
Usually ships in 3-6 days
Toro 98-9578
PIPE-RETURN, WATER
$18.99
$
Usually ships in 3-6 days
Toro 125-9078
CLAMP-HOSE
$6.49
$
Usually ships in 3-6 days
Toro 98-7778
THERMOSTAT ASM
$93.99
$
In Stock, only 2 left!
Toro 98-9471
COVER-THERMOSTAT
$55.99
$
Usually ships in 3-6 days
Toro 105-3748
GASKET-THERMOSTAT
$6.99
$
In Stock, only 3 left!
Toro 98-7777
BOLT
$2.49
$
Usually ships in 3-6 days
