22327 (TX 1000) - Toro Dingo Compact Utility Loader (SN: 409940000 - 411509999) Platform Assembly Parts Diagram

Dingo Compact Utility Loader

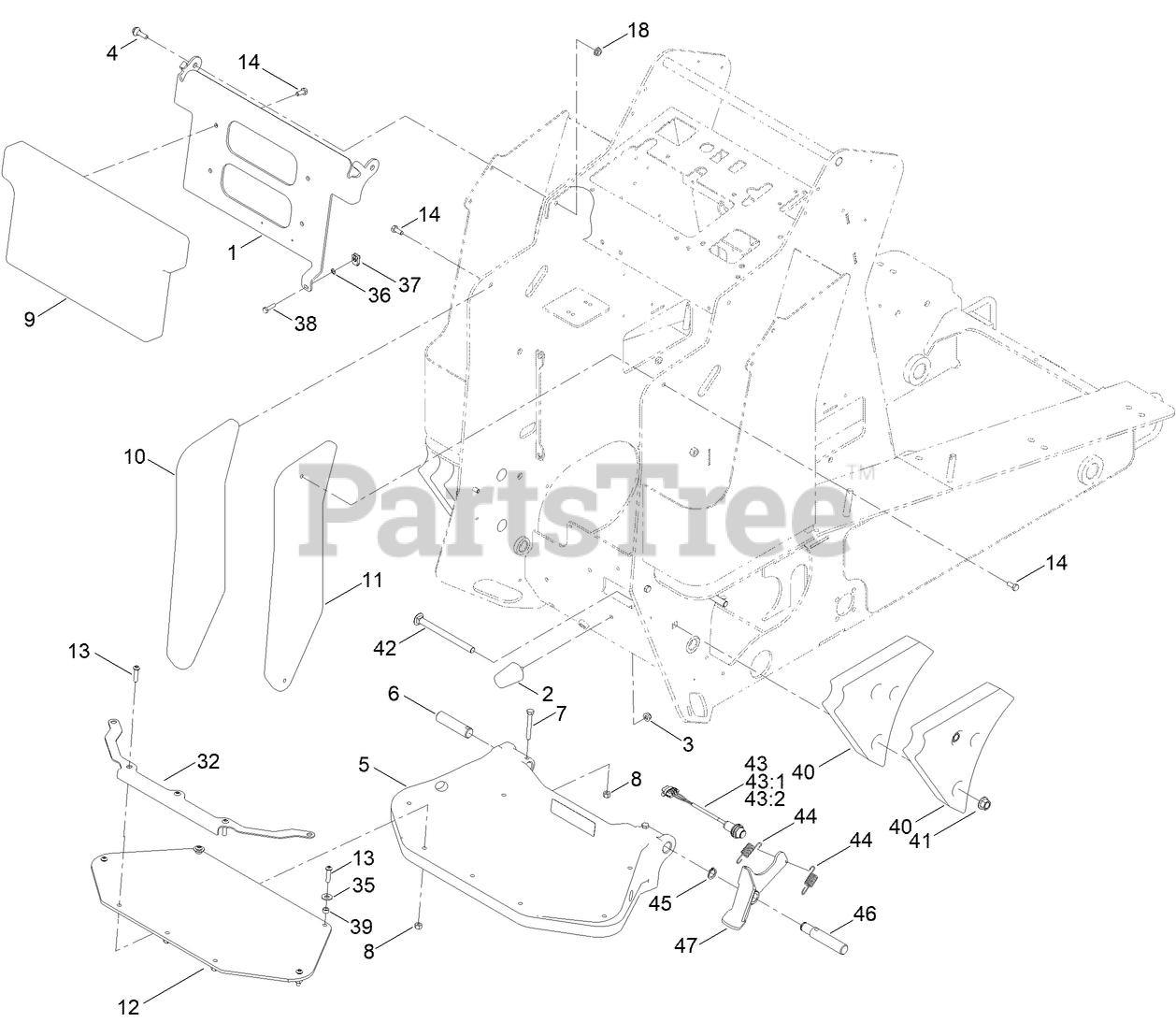

Platform Assembly Parts Diagram

  • Title

1

Toro 132-6026-03

HINGE-PAD

$176.99

$

Usually ships in 3-6 days

0

2

Toro 110-5070

BUMPER

$15.99

$

In Stock, only 2 left!

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 108-3744

SCREW-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

5

Toro 144-7383

PLATFORM

$

$

Not available

6

Toro 125-3749

PIN-PIVOT

$40.99

$

Usually ships in 3-6 days

0

7

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

8

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 130-1042

CUSHION-PAD

$336.99

$

Usually ships in 3-6 days

0

10

Toro 130-1043

CUSHION-PAD

$199.99

$

In Stock, only 1 left!

0

11

Toro 130-1044

CUSHION-PAD

$199.99

$

Usually ships in 3-6 days

0

12

Toro 144-7382

PAD-FOOT

$60.99

$

Usually ships in 3-6 days

0

13

Toro 3290-511

SCREW-HSBH

$2.99

$

Usually ships in 3-6 days

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Toro 144-7371-03

PLATE - CLAMP

$38.99

$

Usually ships in 3-6 days

0

35

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

36

Toro 1-803037

NUT-RETAINING

$1.99

$

Usually ships in 3-6 days

0

37

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

38

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

39

Toro 85-9120

SPACER-PIVOT, TILT

$5.49

$

Usually ships in 3-6 days

0

40

Toro 140-7699-03

PLATE, WEIGHT

$158.99

$

Usually ships in 3-6 days

0

41

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

42

Toro 144-7373

SCREW-CARR

$32.99

$

Usually ships in 3-6 days

0

43

Toro 115-5300

PROXIMITY SWITCH ASM

$166.99

$

In Stock, Qty 20+

0

43:1

Toro 117-3207

NUT-HEX

$22.99

$

In Stock, only 2 left!

0

43:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$12.99

$

In Stock, only 4 left!

0

44

Toro 137-6189

SPRING-EXTENSION

$3.99

$

In Stock, Qty 10

0

45

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

46

Toro 144-0754

PIN-PLATFORM

$28.99

$

Usually ships in 3-6 days

0

47

Toro 145-3759-03

PEDAL ASM

$111.99

$

Usually ships in 3-6 days

0
