22330 (TX 413) - Toro Dingo Compact Utility Loader (SN: 260000001 - 260999999) (2006) Control Panel Assembly Parts Diagram

Dingo Compact Utility Loader

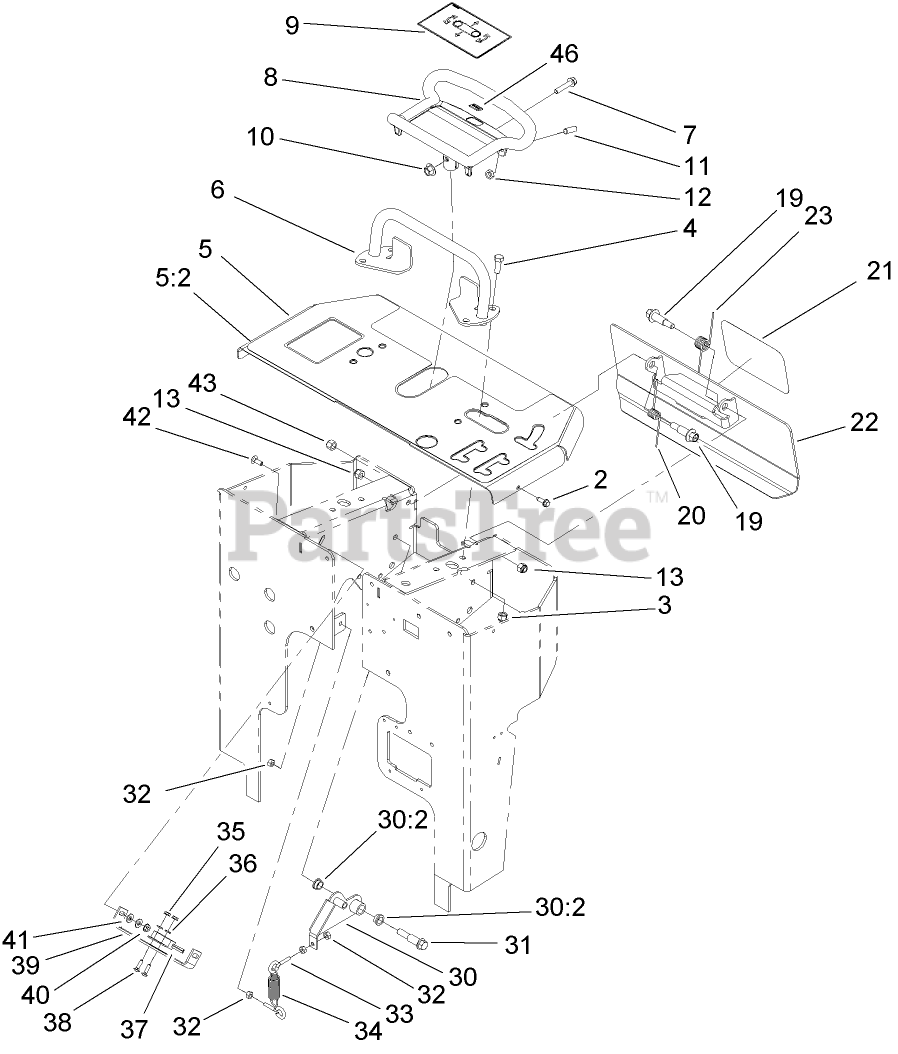

Control Panel Assembly Parts Diagram

  • Title

2

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.99

$

In Stock, Qty 5

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Toro 106-9508

CONTROL PANEL ASM

$

$

Not available

5:2

Toro 106-9450

DECAL-CONTROL PANEL

$

$

Not available

6

Toro 106-7715-03

See Supercession: 106-7715
(Superseded to 106-7715)

$233.99

$

Usually ships in 3-6 days

0

7

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

8

Toro 106-7614-03

See Supercession: 120-5380-03
(Superseded to 120-5380-03)

$

$

Not available

9

Toro 106-9453

DECAL-TRACTION

$38.99

$

Usually ships in 3-6 days

0

10

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

11

Toro 3247-7

SCREW-SET, HSH

$

$

Not available

12

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 5

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 62-1330

BOLT-SHOULDER

$12.99

$

In Stock, only 2 left!

0

20

Toro 98-8424

SPRING-TORSION, RH

$29.99

$

Usually ships in 3-6 days

0

21

Toro 105-1217

DECAL

$44.99

$

In Stock, Qty 6

0

22

Toro 105-9031-03

REVERSE PLATE ASM

$

$

Not available

23

Toro 98-8425

SPRING-TORSION, LH

$29.99

$

Usually ships in 3-6 days

0

30

Toro 100-4203

NEUTRAL CENTERING LEVER ASM

$209.99

$

Usually ships in 3-6 days

0

30:2

Toro 256-156

BUSHING-FLANGE

$14.99

$

In Stock, only 2 left!

0

31

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

32

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 9

0

33

Toro 71-2870

BOLT-EYE

$20.99

$

In Stock, only 2 left!

0

34

Toro 105-1210

SPRING-EXTENSION

$22.99

$

Usually ships in 3-6 days

0

35

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

36

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

37

Toro 100-1270

SWITCH-PROXIMITY

$128.99

$

In Stock, only 1 left!

0

38

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

39

Toro 100-1263

PLATE-SWITCH

$38.99

$

Usually ships in 3-6 days

0

40

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

41

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

43

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

46

Toro 98-1459

DECAL

$4.99

$

Usually ships in 3-6 days

0
